2025 BENETEAU FIGARO 3 - New Boat Library
Length
32' - 9.75m
Usage
Racing
Model Year
2025
Hull Material
Fibreglass/GRP
PDF Attachments
Description: Beneteau Figaro 3
The specifications define the FB3 monohull as being as reliable as its predecessor, the FB2. It is equipped with foils, a better performing ballast-free hull, a more slender and deeper keel, a setback mast and a more extensive and larger sail plan.
A hybrid of innovation and cutting-edge technology, Beneteau has created the first ever production made hydrofoil yacht. With a user-friendly design, innovative foiling technology and supreme lightness, the Figaro 3 has ensured that entry-level racing yachts will be revolutionised forever.

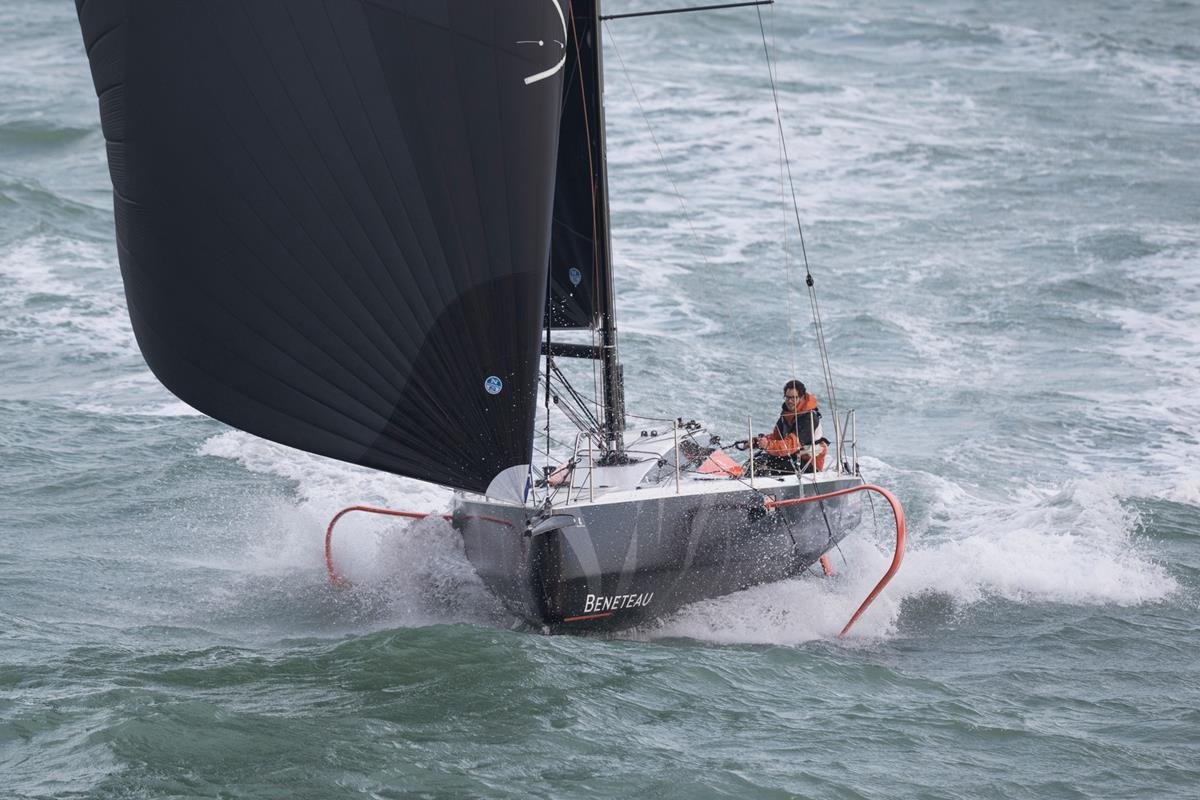

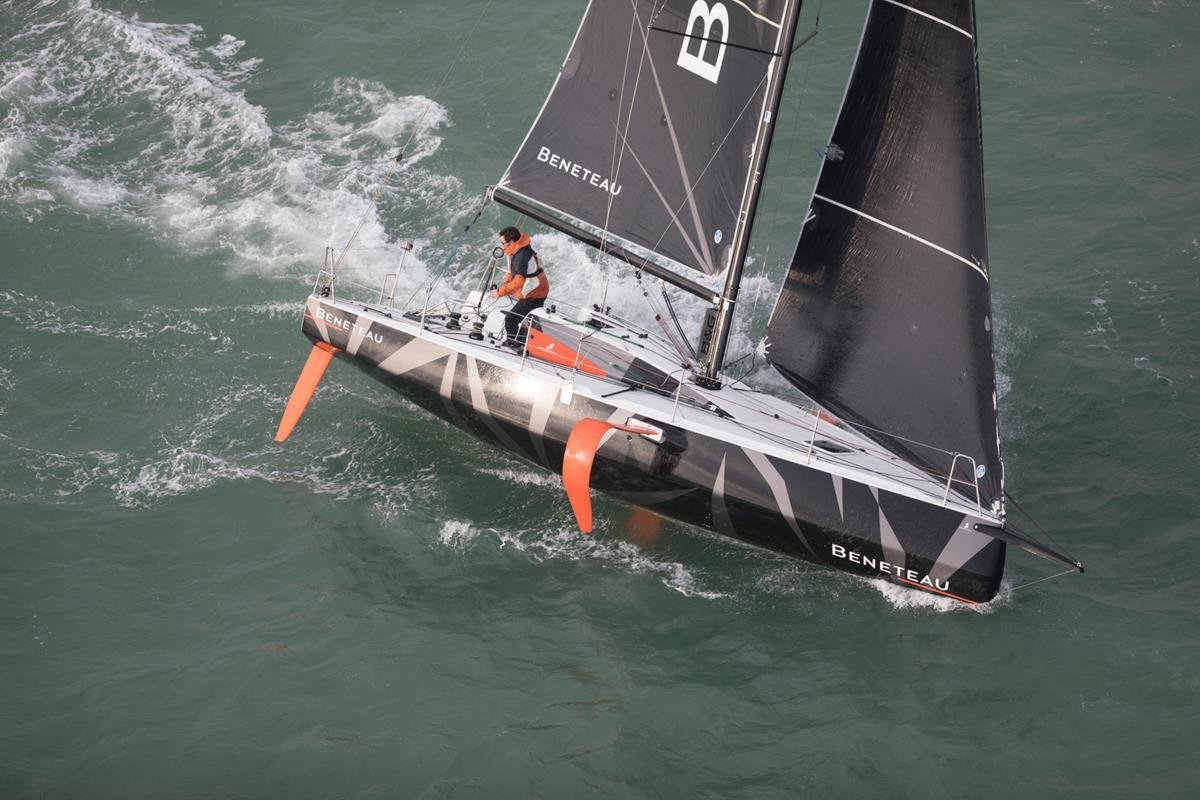

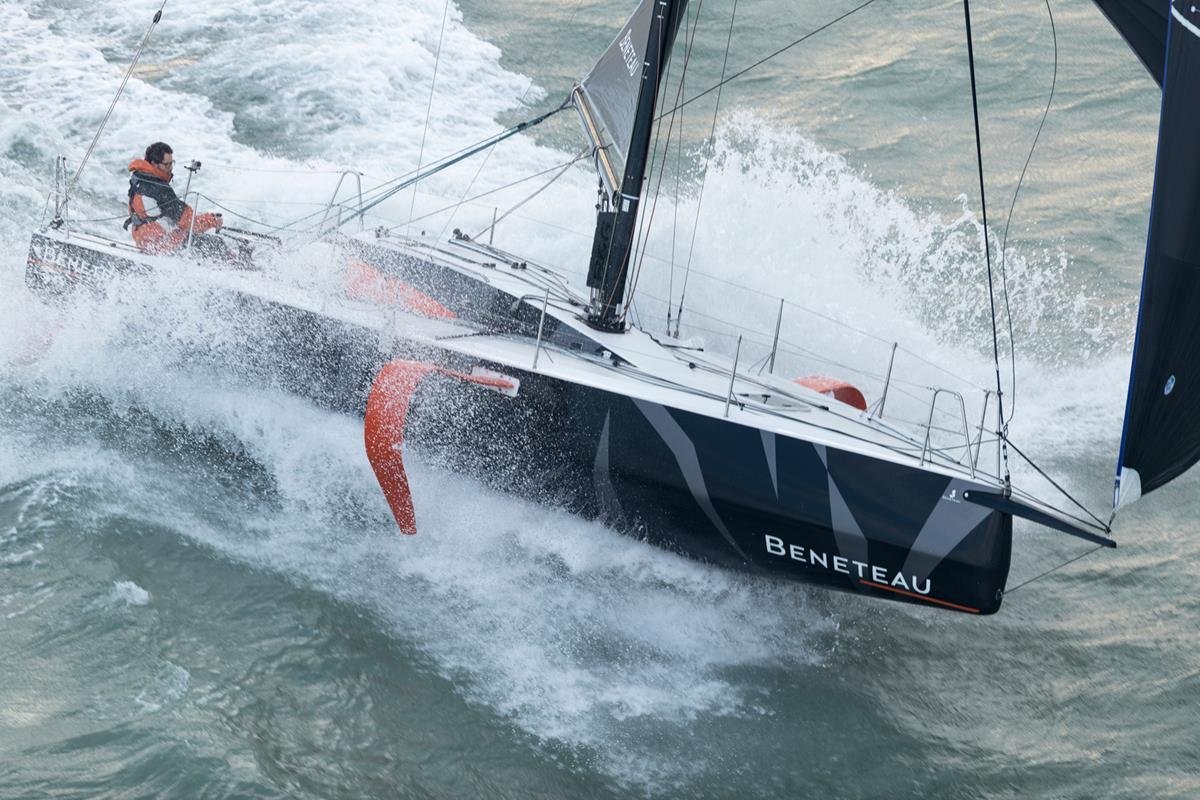

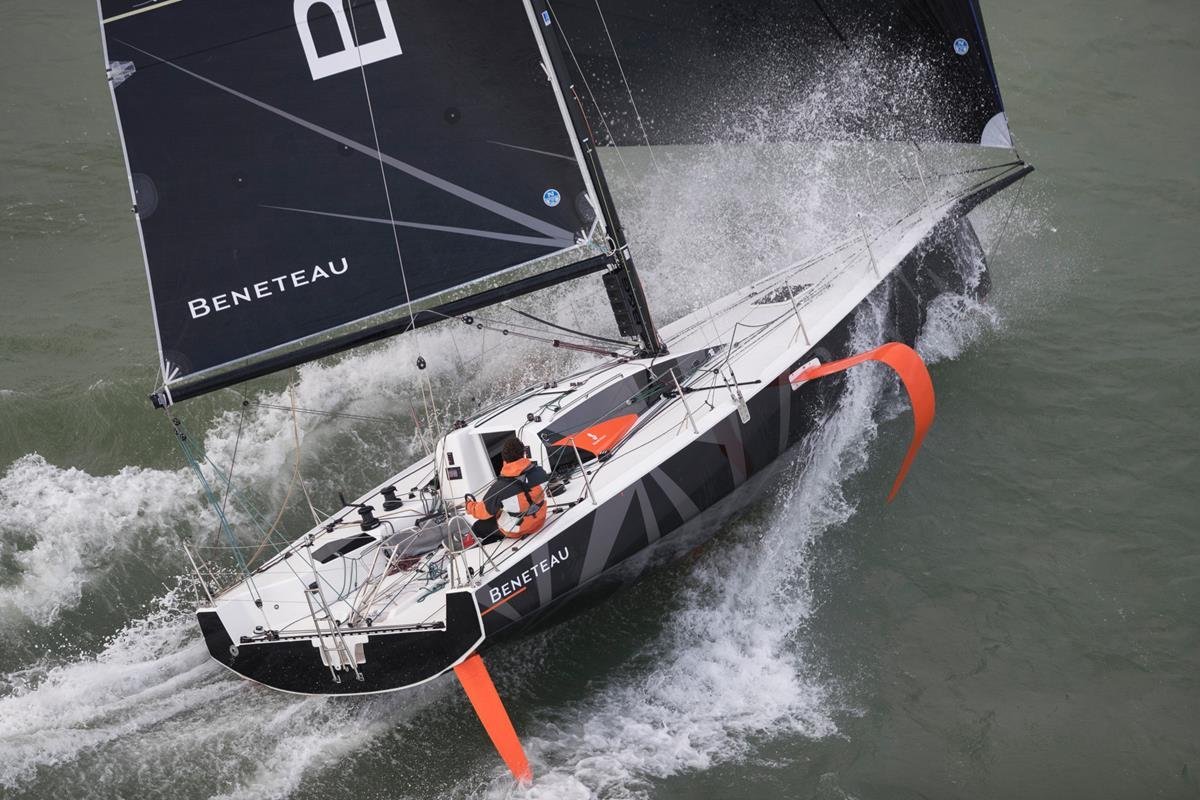

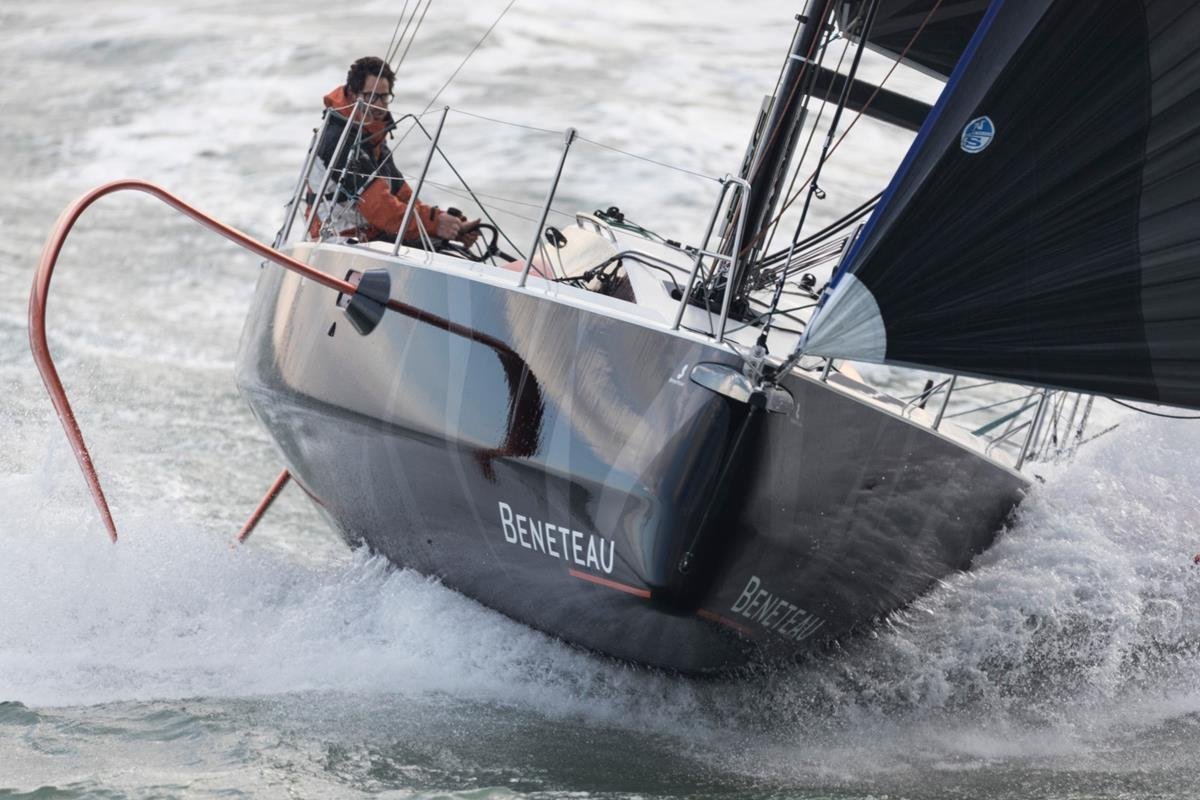

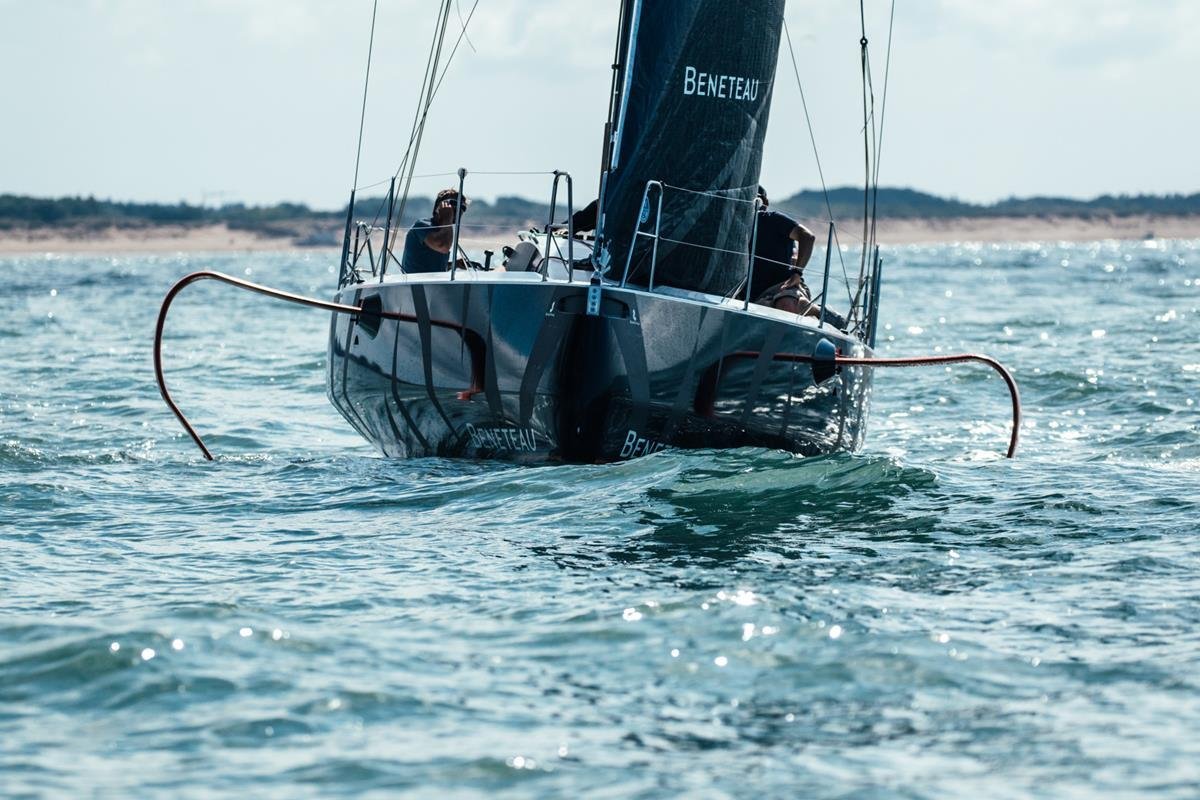

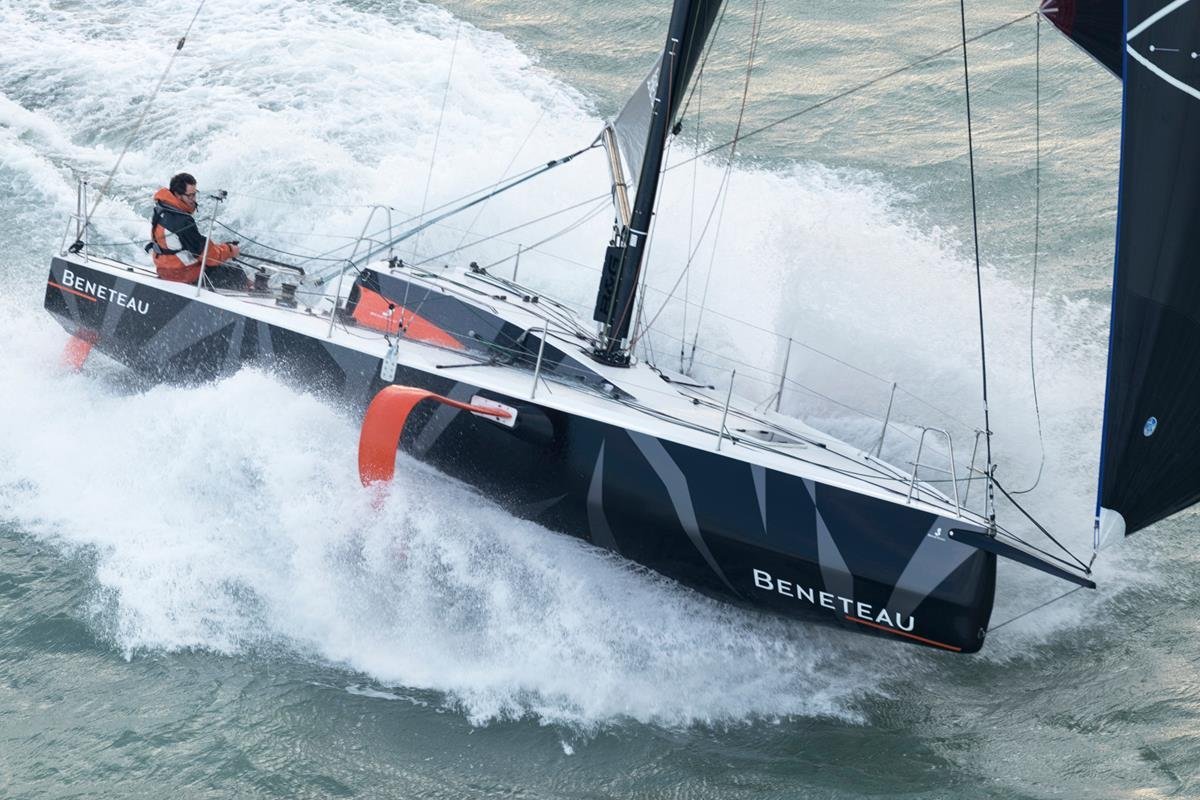

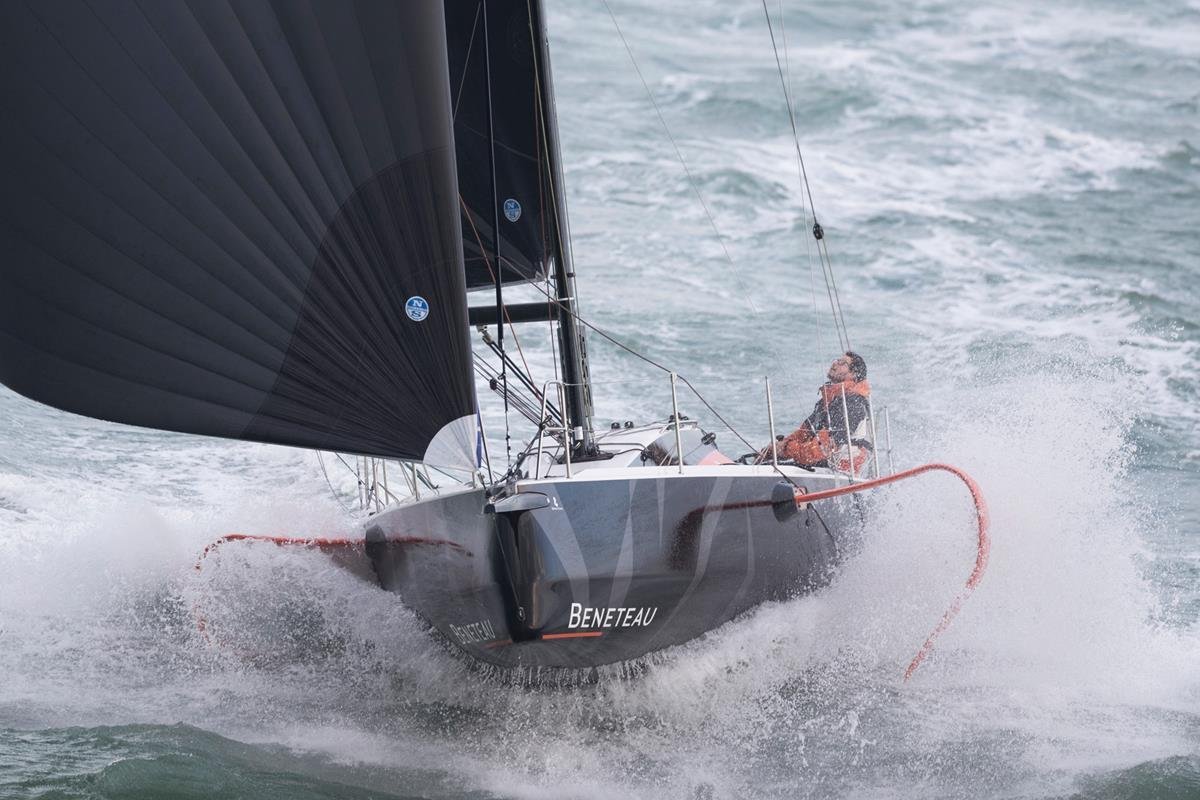

Turning heads left right and centre, the omission of ballast tanks in favour of inward-facing foils have helped reduce the overall weight of the Figaro 3 by 100kg. Spreading out like wings just below deck level (instead of near the waterline), the foils are retractable and incredibly sturdy.
A hybrid of innovation and cutting-edge technology, Beneteau has created the first ever production made hydrofoil yacht. With a user-friendly design, innovative foiling technology and supreme lightness, the Figaro 3 has ensured that entry-level racing yachts will be revolutionised forever.
Turning heads left right and centre, the omission of ballast tanks in favour of inward-facing foils have helped reduce the overall weight of the Figaro 3 by 100kg. Spreading out like wings just below deck level (instead of near the waterline), the foils are retractable and incredibly sturdy.
Model Year
2025
Designer
Van Peteghem - Lauriot Prvost
Builder
Beneteau
Length
32' - 9.75m
Beam
3.48
Draft
2.50
Displacement
3.175
Keel / Ballast
Cast iron keel with mixed cast iron/lead ballast treated by spraying with molten zinc. 1100 kg ballast
Hull Material
Fibreglass/GRP
Deck Material
Polyester sandwich - infused PVC foam
Engine Make
Nanni
Engine
Acces to the engine via large hatches and removable companionway.
Horse Power
21
Fuel Type
Diesel
Propulsion
Two-blade folding propeller
Fuel
40
Accommodation
Open race yacht : 2 canvas bunks on aluminium frame on tackle
Ground Tackle
OPTION : Flat Britany 12 kg anchor, 10 m of chain diameter 8 mm, 42 m of line diameter 14 mm
Safety Gear
2 Stainless steel pulpits with load strut, 2 Stainless steel pushpits, 1 Central stainless steel stanchion on rear skirt, 1 Pair of front stanchions with rollers, 3 Pair of stanchions with load struts, 2 Unsheathed lifelines, Toe rail and footrest integrated in the deck moulding, 2 Stainless steel handrails on coachroof
Bilge Pumps
Manual bilge pump near the helmsman
Electrics
12 V circuit, 1 Engine battery (70 Ah) in the engine compartment, 2 service batteries (100 Ah) forward of the foil bulkhead, 1 Battery controller, Electrical panel on central electronic console integrated in the mast bulkhead, 12 V socket, Navigation lights at masthead, Battery service switch access on central console, Engine battery switch access from the companionway on the engine compartment
Electronics
Two packs : NKE or B&G
Sail Inventory
2:1 Mainsail halyard - 1 Masthead - 1 Fractional Genoa / Spinnaker halyard - 1 Genoa halyard - 2 Genoa sheets - 2 Spinnaker sheets and guys with barber adjustment - 1 Mainsail outhaul with tackle - Mainsail sheet traveller and genoa car adjustments - 2 reef lines - 1 Mainsail cunningham
Mast / Rigging
9/10 rig. Carbon mast with aluminium boom
Deck Gear
Polyester twin-rudders hung with stainless steel shaft, Mainsail sheet traveller on rear skirt, Deck equipment Harken and Ropeye, Lewmar clutches for halyards and adjustments, Mainsheet adjustment with fine tune on central console, Cam-Matic ® cleats on roof return, 4 Harken 46.2 winches for halyards, sail handling, genoa and spinnaker setting, 2 Winch handles, 2 Flat-deck return blocks for genoa sheets, 2 Flat-deck return blocks for running backstays, 2 Constrictor ® textile clutches for running backstays, 2 Genoa transversal tracks on side deck 3D adjustment, Shroud and lower shroud chainplates on side of hull, 2 Backstay chainplates, Mast socket fitting with integrated Harken blocks, Watertight hatch on roof for access to weighing point, Fixed carbon bowsprit.
Remarks

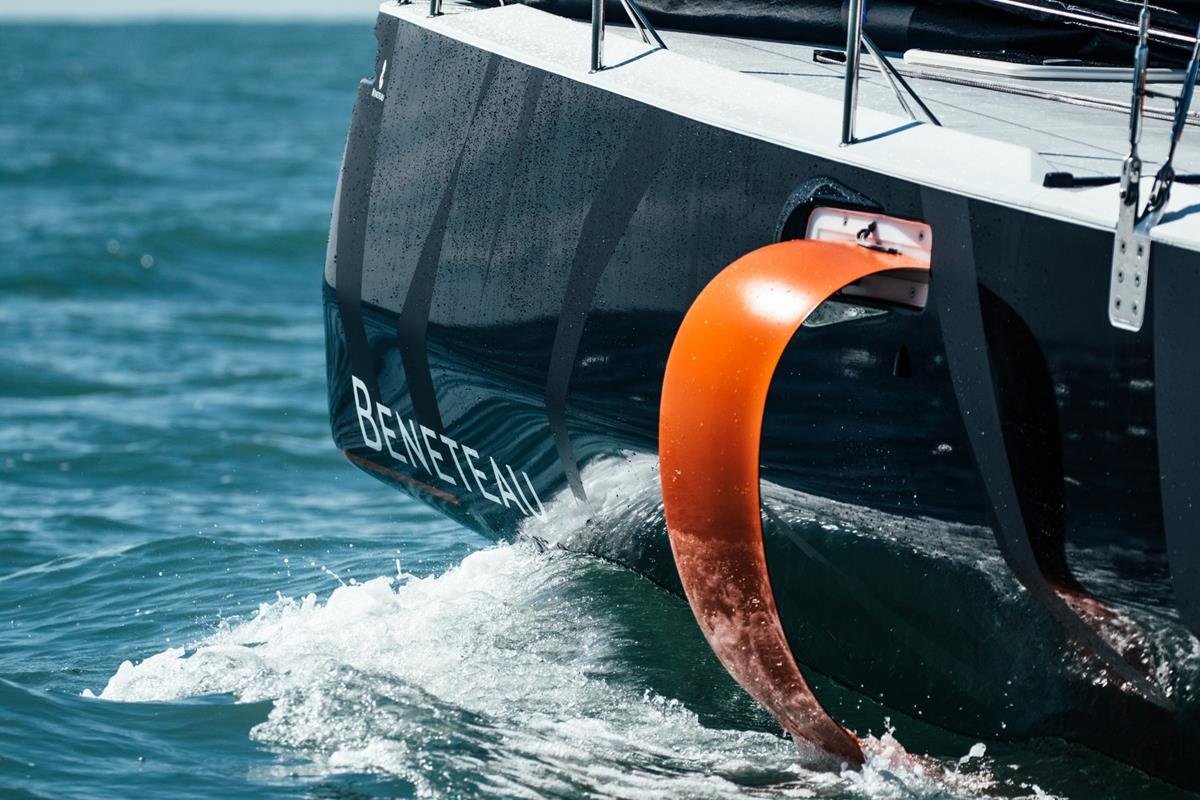

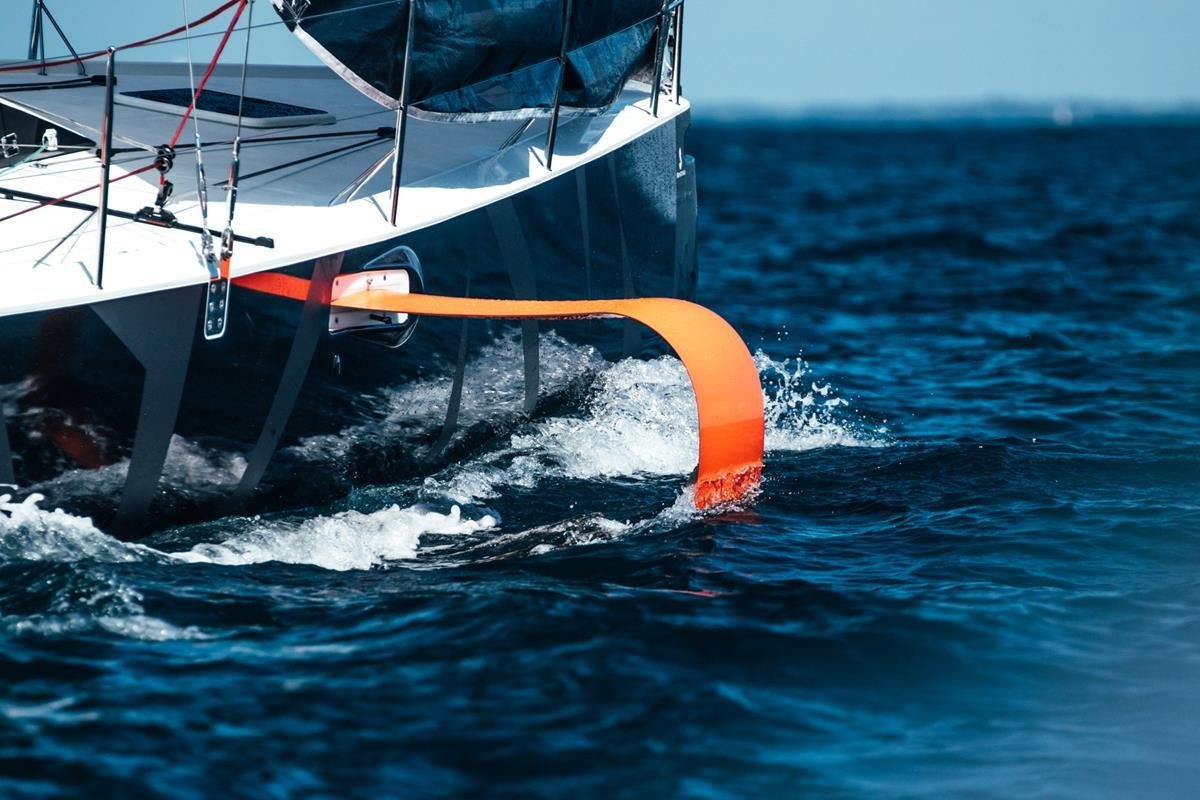

1 pair of independent and retractable carbon / epoxy foils, Full rigging for independent foil rake adjustment, Each foil is manually adjustable by tackle with return to cockpit.
