2012 HORIZON YACHT P110 - New Boat Library
Length
110' - 33.52m
Model Year
2012
Hull Material
Fibreglass
Description: Horizon Yacht P110

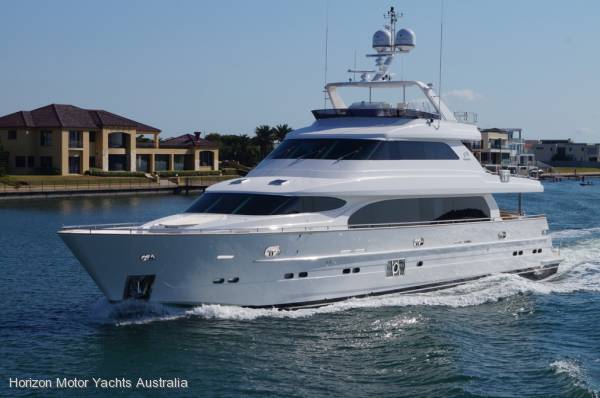

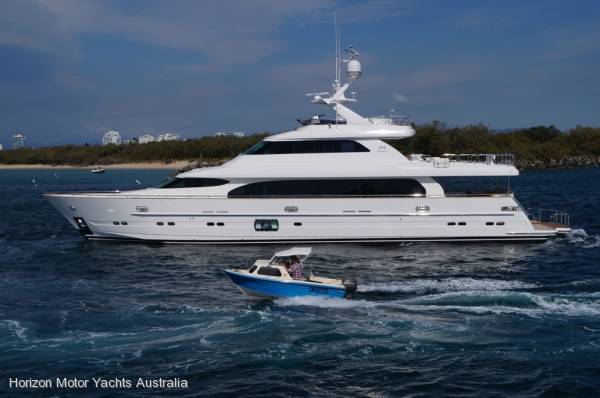

Horizon P110 is a world class tri-deck yacht designed for those who are seeking the ultimate cruising experience. With a sleek, streamlined exterior profile, world class fit and finish, and spacious accommodations that offer either on deck master or country kitchen design the P110 is nothing short of palatial. With not only a sky lounge but a large fly bridge it allows an array of custom features and design options that combine to create a trideck 105 that rivals 120ft yachts in design and function.
Model Year
2012
Designer
Horizon Yachts
Builder
Horizon Yachts
Length
110' - 33.52m
Beam
23'6"
Draft
6'4"
Displacement
125T
Hull Material
Fibreglass
Deck Material
Teak decks
Engine
Upgrade to CAT C32A 1900hp engines. Engine room: Live SAE-C PTO on gear box (P&S) for thrusters / windlass & stabilizer power.
Two extra SAE-B PTO on gear box for steering gear hydraulic.
ZF Mathers fixed engine control system at pilot house / aft deck & flybridge. One handheld remote control with plug-in receptacles at aft deck and flybridge.
Stainless steel shafts Aquamet 22#.
High performance 5 blade propellers S-Class surface.
Main and intermediate bronze struts w/backing plates.
Shaft and rudder packing glands with TIDES Marine dripless seals or equivalent.
Underwater exhaust system for engines w/mufflers. Pipe with fire retardant resin reinforcement.
Hynautic or equivalent power steering system.
Custom steering wheels for both helms.
Stainless steel emergency tiller.
Stainless steel rudder w/zinc plates.
Engine Hours
New
Genset
1. Two “Onan” generator 40 kw (50Hz/60 Hz) w/sound shield.
Fuel
16000L
Water
3800L
Accommodation
Master cabin plus 5 guest cabins and crew quarters
Galley
Siemens wine cooler
Miele plate warmer
Miele steam cooker
Fisher and Paykel Fridge
Miele Coffee maker
1. Granite galley counter top.
2. Cabinets & over head locker pre owner’s arrangement & design.
3. Foot rest around bar.
4. Loose stools in leather for galley counter.
5. Drinking water w/filter.
6. U-shape settee in leather pre GA layout w/two tables. Storage space behind & deep drawers under.
Miele plate warmer
Miele steam cooker
Fisher and Paykel Fridge
Miele Coffee maker
1. Granite galley counter top.
2. Cabinets & over head locker pre owner’s arrangement & design.
3. Foot rest around bar.
4. Loose stools in leather for galley counter.
5. Drinking water w/filter.
6. U-shape settee in leather pre GA layout w/two tables. Storage space behind & deep drawers under.
Shower
6 x hot and cold showers
Toilet
6 x electric toilets
Electrics
1. Color-coded wiring for easy identification.
2. Main electric panel w/circuit breakers inside the engine room.
3. Distribution panels for each cabin areas.
4. Emergency power package & lighting system.
5. AC volt duplex receptacles located throughout including engine room.
6. GFI protection for all AC outlets in heads, galley and engine room.
7. Indirect lighting under valance in saloon, staterooms, pilothouse and galley.
8. Independent 24 volt to 12 volt converters for necessary equipment.
9. Electrolysis bonding & grounding system.
10. Two zinc anodes on transom.
11. VIMAR outlet & switch.
12. Dimmer system for ceiling lights in aft deck, saloon, master and VIP cabin.
2. Main electric panel w/circuit breakers inside the engine room.
3. Distribution panels for each cabin areas.
4. Emergency power package & lighting system.
5. AC volt duplex receptacles located throughout including engine room.
6. GFI protection for all AC outlets in heads, galley and engine room.
7. Indirect lighting under valance in saloon, staterooms, pilothouse and galley.
8. Independent 24 volt to 12 volt converters for necessary equipment.
9. Electrolysis bonding & grounding system.
10. Two zinc anodes on transom.
11. VIMAR outlet & switch.
12. Dimmer system for ceiling lights in aft deck, saloon, master and VIP cabin.
Electronics
1. Raymarine GPS Raystar125Plus
2. Raymarine 12Kw and 4Kw 72nm Open array radar system with 19" screen(2) in pilot house and 15"screen(2) in fly bridge
3. Raymarine Fishfinder
4. Raymarine Autopilot
5. Raymarine ST70Plus multifunction displays
6. Raymarine Wind and speed transducers
7. Raymarine AIS500 AIS
8. Raymarine VHF
9. Raymarine Loudhailer
2. Raymarine 12Kw and 4Kw 72nm Open array radar system with 19" screen(2) in pilot house and 15"screen(2) in fly bridge
3. Raymarine Fishfinder
4. Raymarine Autopilot
5. Raymarine ST70Plus multifunction displays
6. Raymarine Wind and speed transducers
7. Raymarine AIS500 AIS
8. Raymarine VHF
9. Raymarine Loudhailer
Remarks
Options 110-323
Hull and Main Structure
2’ Hull extension (Cockpit and crew area)
Exterior deck and equipment
Hi Lo swim platform
Curved entrance door from aft deck to saloon
Custom after deck bar w/sink, Icemaker & fridge
Custom design big windows in master cabin
Jacuzzi with heating unit on flybridge deck
Additional capstan at bow deck x2
Corner hausers
Swimming platform storage well w/gas piston hatch
Stainless steel cover for port lights at bow area
Bow teak steps
Engine propulsion and steering system
Upgrade to CAT C32A 1900hp engines
TRAC Stabilisers- Zero speed
Hydraulic stern thrusters (A. B. T. 55hp)
Hamann sewage treatment system
Upgrade to 50KW generators
Additional fuel 800 gallons to total of 5000 gallons
SPUR line cutters for shafts
Electronics and lighting system
SAT TV KVH TracVision M9 plus 2nd empty dome
Upgrade Maretron monitoring system
Underwater lights x 8
Interior Finish, furniture and decoration
Interior fit out with the below items
1. Lacquer finish bathroom and galley
2. Upgrade interior lights
3. Upgrade interior fabrics
4. Custom design dining table
5. Custom made granite floor at saloon entrance
6. Upgrade interior hardware
Extra heads (*
Hull and Main Structure
2’ Hull extension (Cockpit and crew area)
Exterior deck and equipment
Hi Lo swim platform
Curved entrance door from aft deck to saloon
Custom after deck bar w/sink, Icemaker & fridge
Custom design big windows in master cabin
Jacuzzi with heating unit on flybridge deck
Additional capstan at bow deck x2
Corner hausers
Swimming platform storage well w/gas piston hatch
Stainless steel cover for port lights at bow area
Bow teak steps
Engine propulsion and steering system
Upgrade to CAT C32A 1900hp engines
TRAC Stabilisers- Zero speed
Hydraulic stern thrusters (A. B. T. 55hp)
Hamann sewage treatment system
Upgrade to 50KW generators
Additional fuel 800 gallons to total of 5000 gallons
SPUR line cutters for shafts
Electronics and lighting system
SAT TV KVH TracVision M9 plus 2nd empty dome
Upgrade Maretron monitoring system
Underwater lights x 8
Interior Finish, furniture and decoration
Interior fit out with the below items
1. Lacquer finish bathroom and galley
2. Upgrade interior lights
3. Upgrade interior fabrics
4. Custom design dining table
5. Custom made granite floor at saloon entrance
6. Upgrade interior hardware
Extra heads (*
