2019 MONTEREY 258 SS - New Boat Library

MAKE A STATEMENT WITH THE 258SS
Create new memories aboard the Monterey 258SS. We've gathered the best attributes of the Super Sport Series to design and create the perfect boat for you to enjoy the water like you've never done before. Hand crafted with some of the most innovative design features seen on the water today, the 258SS is equipped with a long list of standard and optional features. No matter what you want to do or where you want to go, we promise the 258SS will satisfy everything your heart desires.

S = Standard inclusion.
O = Option.
Canvas
Bimini Top w/Embroidered Boot S
Bow & Cockpit Cover O

Cockpit
Cooler, 48 Qt Carry-On S
Courtesy Lighting, Blue/White, LED 12 V S
Drink Holders, Stainless Steel (8) S
Fiberglass Cockpit Liner w/Non-Skid and Drainage S
Grab Handles, Black Urethane w/Stainless Steel Inserts S
Hatch, Engine Compartment, Gas Assisted S
Outlet, 12 V S
Stereo, Fusion Satellite Ready AM/FM w/built-in iPod Dock & 4 JL Audio 6.5" Speakers with LED Lights & Dash Remote S
Storage, In-Floor Ski w/Gas Assisted Hatch Cover, & Dry Deck S
Storage, Side Panels S
Storage, Starboard Helm w/Hanging Rod, Trash Receptacle, Dock Line Straps (2) & Dry Deck S
Arch/Hardtop Tower Cone Speakers, JL with 4 Channel Amplifier (Requires Stereo Upgrade Package) O
Cockpit Inlay (SeaDek) (Brown or Gray) (Requires Swim Platform Inlay Option) O
Cockpit Table O
Stereo Upgrade Package, Includes Subwoofer & 4 Channel Amplifier O
Stereo Remote, Stern O
Transom Shower O
Wet Bar w/Solid Surface Insert, Sink, Faucet & Slide Out Cooler O
Woven Flooring, Cockpit O

Electrical Systems
Battery Switch, Dual w/Additional Battery Tray S
Weatherproof Electrical System w/Individual Circuit Protection S
Transom Tilt Switch S
Engine Compartment
Automatic Bilge Pump S
Bilge Blower S
Fire Port S
Forced Air Ventilation w/Concealed Vents S
Gelcoated Bilge & Engine Compartment S
Battery Charger w/Deck Plug O
Fire Extinguishing System (Domestic Only) O

Fuel Systems
Double Clamped Fuel Lines S

Head
Counter Top w/Solid Surface Inlay S
Flooring, Synthetic Wood S
Toilet (Porta-Potti) S
Vanity w/Sink & Pullout Sprayer S
Toilet, Pump-out Deck Fitting O
Electric Head System w/Holding Tank O

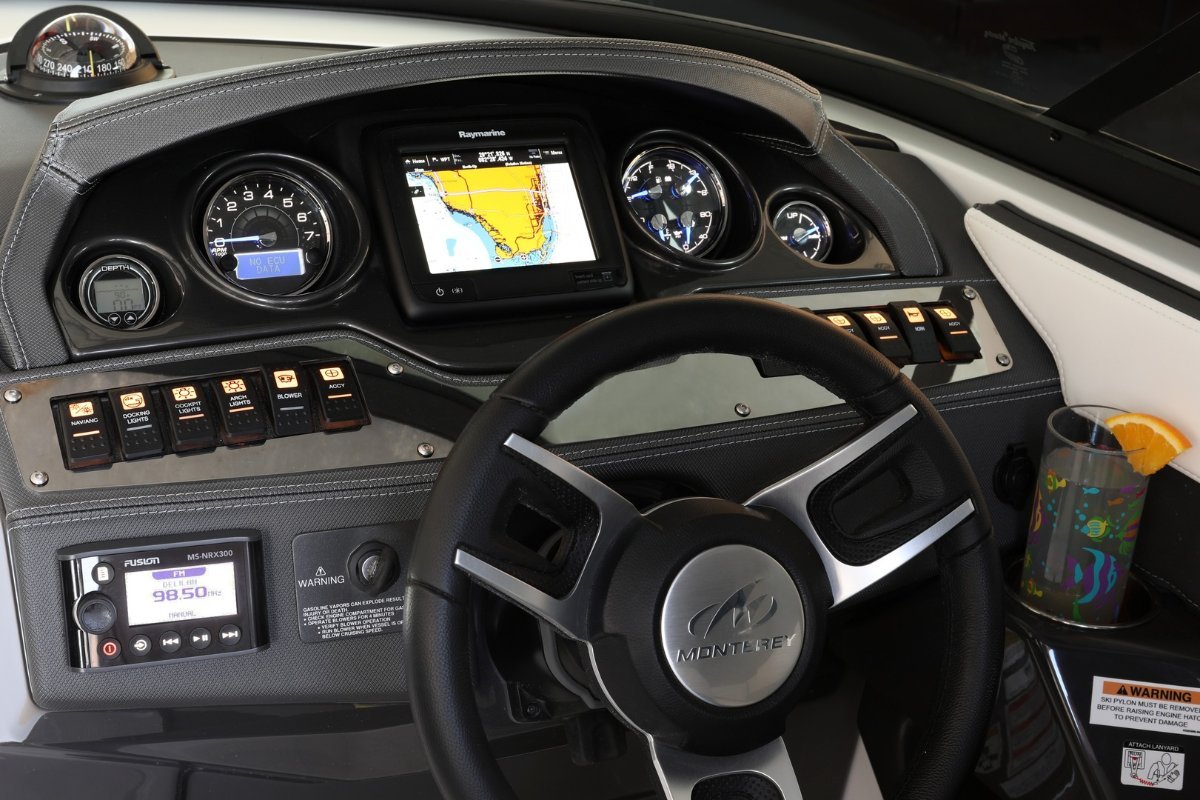

Helm
Compass S
Depthsounde r w/Shallow Water Alarm S
Digital GPS Speedometer S
Instrumentation w/Fog Resistant Gauges & Low Glare Night Lighting S
MP3 Adapter S
Outlet, 12 V S
Steering Wheel, Premium, Black w/Silver Insert S
Steering, Power Assisted S
Steering, Tilt S
Switches, Lighted Weatherproof S
Active Trim (Mercury Only) O
Digital Helm Display, Medallion (Includes Compass, Depthsounder and GPS Functions) O
GPS/Chartplotter/Sonar, W/Transducer (Required with Volvo Forward Drive Option) O

Hull & Deck
Air Assist Chine S
Barrier Coat, Vinylester S
Boarding Ladder, Telescoping & Recessed, Bow S
Bow Hand Rails, SS S
Bow & Stern Eyes, Stainless Steel, with Stainless Steel Backing Plate S
Bow Plate, Stainless Steel S
Cleats, Stainless Steel (6) S
Colored Hull Sides and Deck Stripe S
Cooler Molded In, Bow S
Custom Hull Side Graphics S
Door, Walk-Thru at Helm S
Door, Walk-Thru at Transom S
Drain Plug, Brass Garboard S
Horn, Electric Flush Mount S
Lifetime Limited Hull Warranty S
Lights, Docking S
Lights, Navigation S
NMMA Certified S
Rub Rail, Heavy Duty w/Stainless Steel Insert S
Ski Tow, Stainless Steel S
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) S
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck S
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch S
Swim Platform, Integral with Ski Rope Storage S
Thru Hulls, Stainless Steel Above Waterline S
Transhield Cover S
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed S
Gelcoat Accent Line O
Anchor Windlass, Pre-Wire O
Anchor Windlass w/Anchor Rope & Chain (Requires Dual Battery Switch) O
Colored Hull Bottom (other than Arctic Ice) O
Graphics, Super Sport (Not Available with Gel Accent Stripe) O
Phender Pro Holders (4) O
Platform Grill, Portable (Propane) (Domestic Only) O
Portlight, Stainless Steel w/Screen O
Electric Radar Arch White or Black Fiberglass with Ski Tow W/Aft Bimini O
Ski Tow Pylon, Removable O
Swim Platform Inlay (SeaDek) (Brown or Gray) O
Underwater Lights, LED O
Wakeboard Tower Black or White, Hinged to Fold Down (Includes Wakeboard Bimini) O

Seating
Aft Facing Seat, Starboard w/Carry-on Slide-Out Cooler S
Aft L-Lounge w/Fiberglass Bases, Sun Island Feature, Stainless Steel Stern Rail S
Bow Bolsters S
Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard S
Seat Cushions w/Storage Compartments, Bow S
Bow Filler Cushions O
Helm Seat, Premium O
Portside Forward/Aft Facing Lounger O
Under Water Gear
Super Surf Trim Tabs (Requires Forward Drive Engine Option) O
Trim Tabs w/Indicators O
Waste Systems
Grey Water System for Porta Potti (N/A With Macerator) O
Macerator w/Overboard Discharge (requires Electric toilet option - Not Available w/Grey Water Option) O
Grey Water System For Electric Head (N/A With Macerator)

Beam 8'6" 2.59 M Width of hull at widest section including rubrail
Bridge Clearance w/Tower 7'6" 2.3M Height from water to highest point on tower, normal load
Deadrise 20° 20° Angle of keel measured at transom
Draft - Stern Drive Down 37" 94CM Depth of hull to bottom of stern drive, trimmed down
Draft - Stern Drive Up 24" 61CM Depth of hull to lowest point, stern drive trimmed up
Dry Weight 5100LBS 2313KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Fuel Capacity 65GAL 246.1L Capacity of fuel tank in gallons/liters
LOA w/Swim Platform 25'1" 7.65M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Max Persons Weight 2475LBS 975KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Power 430HP 321KW Maximum horsepower for safe operation
Maximum Persons w/ Gear Weight 2660LBS 1170KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Waste Capacity 11GAL 41.6L Capacity of waste tank in gallons/liters
Water Capacity 10GAL 37.9L Capacity of water tank in gallons/liters
