2025 STALWART MARINE A FRAME WORK BOAT - New Boat Library

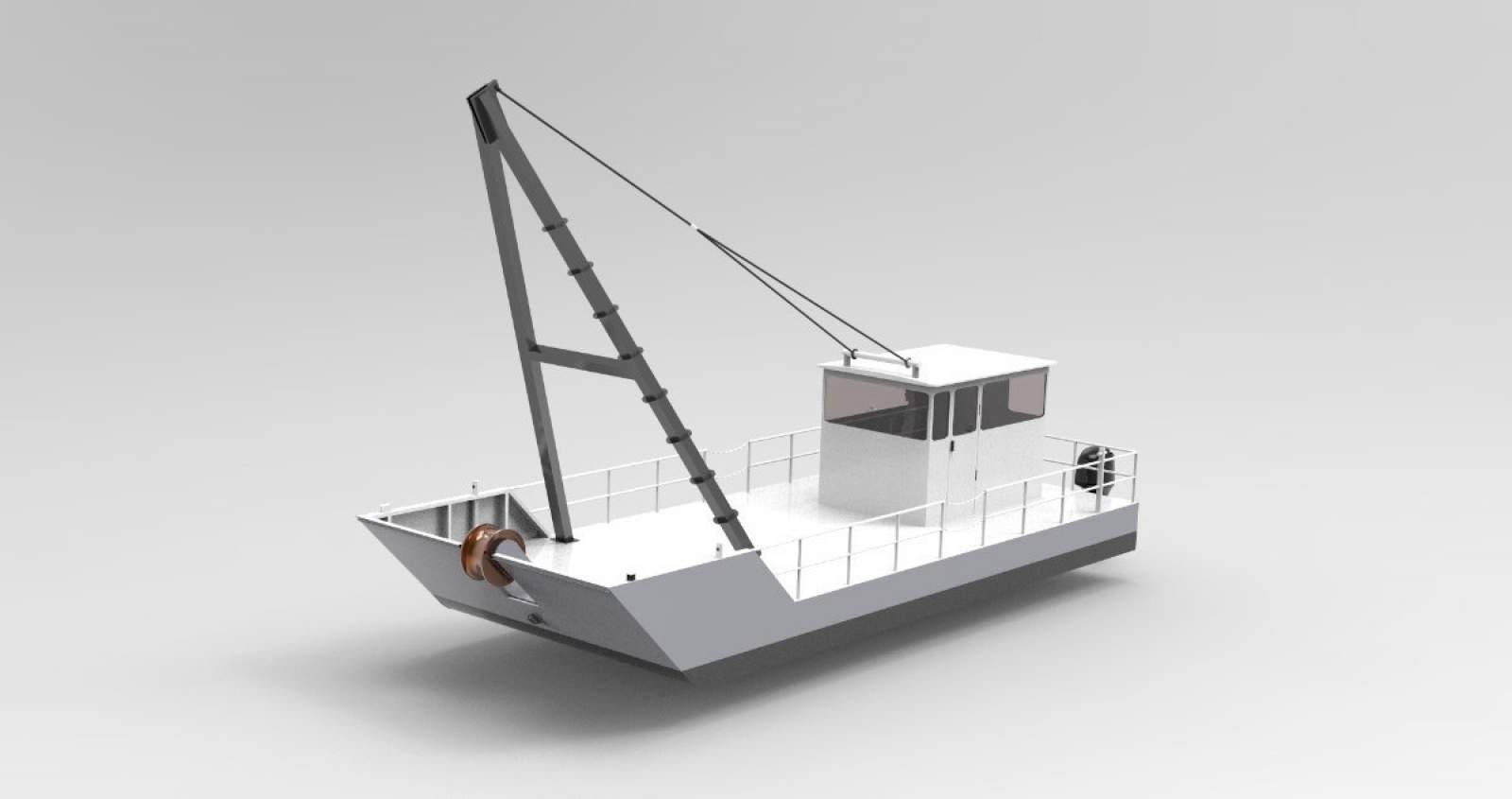

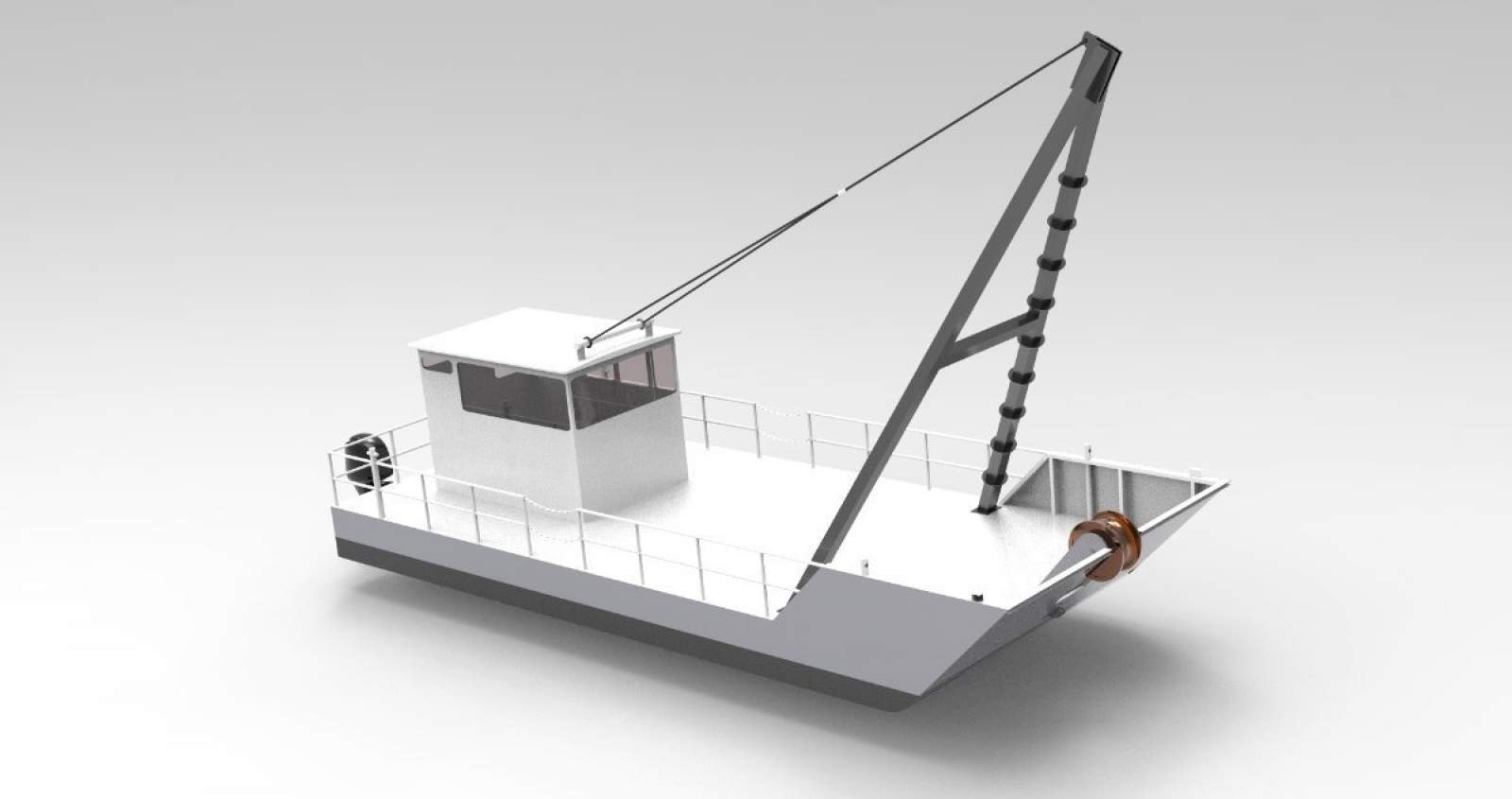

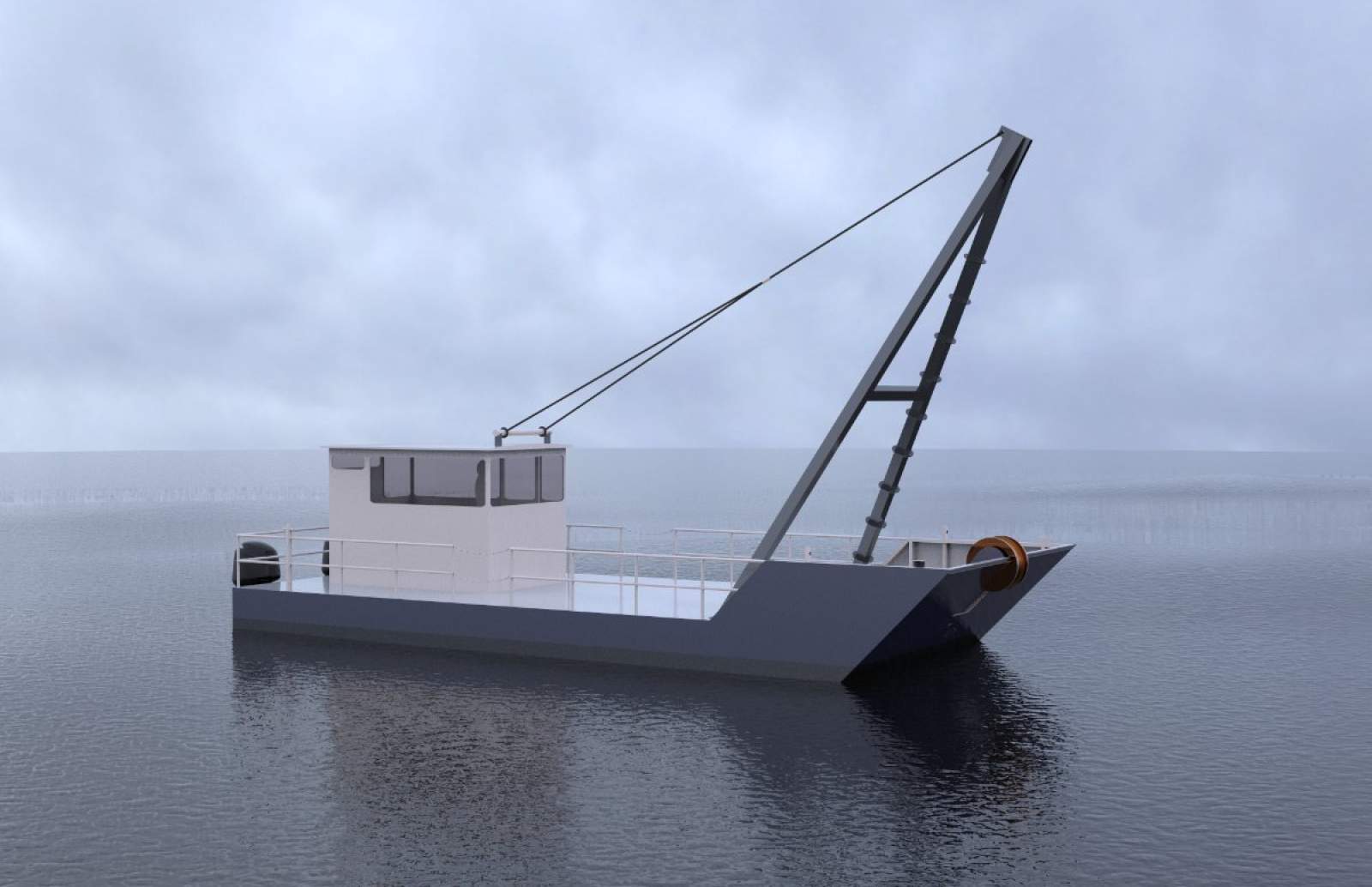

The A Frame workboat is a low cost work boat that can be used for working with mooring repair and mooring placement
the vessel can also be fitted with a Knuckle Boom crane as opposed to a A Frame at additional cost
Specifications
Construction Material: Marine Grade Aluminium
Survey: AMSA 2D
LOA: 11.50 Meters
WOA: 4.50 Meters
Mould Height: 750mm
Deck Thickness: 12mm
Vessel Load: 10.00 tonne, forward of wheelhouse
A Frame Capacity: 5.00 tonne
Winch 1: Bow Roller 5.00 tonne
Winch 2: A Frame 5.00 tonne
Powerpack: Direct drive Diesel motor to Hydraulic pump
Propulsion: 2 x 150hp 4 stroke OBM
Fuel Tank1 x 200lt
Steering: HD Hydraulic
Speed: 12 knots
Colour: Marine Grade PU to Customers choice
Note:
1. This is a made to order vessel and will take approximetly 2 months to deliver
