2013 TARTAN 37 - New Boat Library
Length
37' - 11.27m
Model Year
2013
Hull Material
GRP
Description: Tartan 37

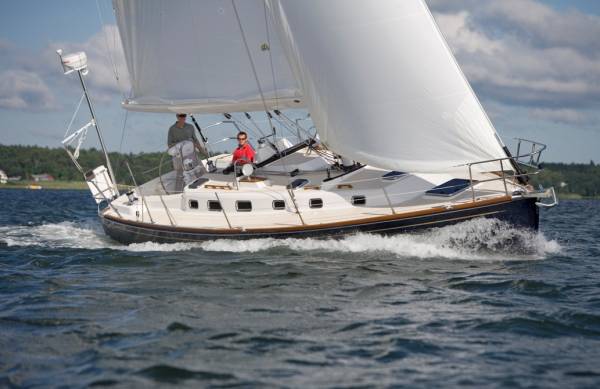

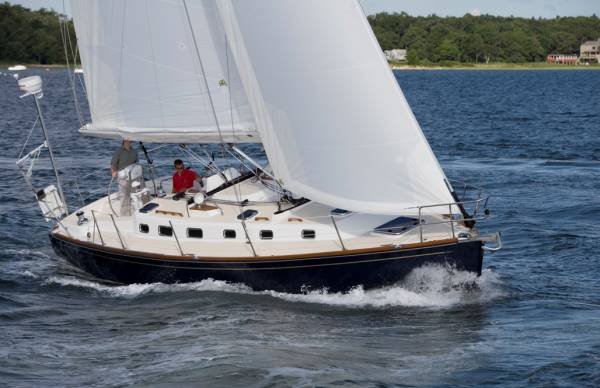

Walking down the dock, the 3700 CCR's rig stands out from the crowd. A carbon fiber engineering showpiece, the lofty tapered rig sports an integrally molded, strong and lightweight masthead and crane. Her double spreader rig is stronger, stiffer, and lighter than an aluminum mast. This results in an increased righting moment, greater sail carrying ability and vastly improved sailing performance. Picture having four 200 lb. Crew members on the weather rail in all conditions, the good news is you get their benefit without having to feed them or house them aboard. Stronger and stiffer mean safer and faster, because carbon can be tailored to meet the changing load requirements in a mast, extra material can be added where it is needed most, this results in a mast that can be engineered with higher safety margins. A stiff rig remains in tune through changing conditions and results in all of the energy of the sails being directly transformed into the energy that drives the boat. A yachts rig is the engine that powers the boat, carbon fiber delivers maximum performance, while increasing safety and strength.
Tartan developed its “Pocket Boom” on its award winning Tartan 3400. This unique feature provides the ability to fit an easy to manage, uncompromised performance mainsail. Unlike furling masts or booms, the “Pocket Boom” mainsail is cut with full roach, full battens and optimized draft. Sailmakers are able to design sails for performance rather than meeting the constraints of the mast or boom. The “Pocket Boom” is fit with an always-in place sail cover, unzip it and raise the sail from its contained “pocket”. When dropping the main, it falls into the boom and lazy jack enclosure, no muss, no fuss. Zip the sail cover back over the sail and the 3700 CCR is shipshape. With Tartan's “Pocket Boom”, performance cruising is not compromised by convenience, instead it is enhanced.
Upwind the 3700 CCR is fit with a roller furling, self-tacking jib. The cut is a high aspect ratio upwind blade with a long luff and tight sheeting angles. We increased the SA/Disp ratio to maintain light air performance, and the high stability of the 3700 CCR allows the boat to carry full sail when others are reefing. Tacking is as simple as putting the helm over, the jib and mainsail tack themselves. Short tacking out of a harbor or anchorage is done with little effort.
When its time to ease the sheets, set the 3700 CCR's 150% furling masthead reacher. This sail can be used close reaching in lighter winds, broad reaching in heavier conditions and dead downwind, wing and wing with the mainsail. Tartan's pursuit of the perfect performance cruiser will keep you sailing while others have no choice but to start their engine.
Tartan 3700 CCR, dedicated to delivering Tartan comfort and packed with performance and handling features to please the most devout sailor.
***
Tartan developed its “Pocket Boom” on its award winning Tartan 3400. This unique feature provides the ability to fit an easy to manage, uncompromised performance mainsail. Unlike furling masts or booms, the “Pocket Boom” mainsail is cut with full roach, full battens and optimized draft. Sailmakers are able to design sails for performance rather than meeting the constraints of the mast or boom. The “Pocket Boom” is fit with an always-in place sail cover, unzip it and raise the sail from its contained “pocket”. When dropping the main, it falls into the boom and lazy jack enclosure, no muss, no fuss. Zip the sail cover back over the sail and the 3700 CCR is shipshape. With Tartan's “Pocket Boom”, performance cruising is not compromised by convenience, instead it is enhanced.
Upwind the 3700 CCR is fit with a roller furling, self-tacking jib. The cut is a high aspect ratio upwind blade with a long luff and tight sheeting angles. We increased the SA/Disp ratio to maintain light air performance, and the high stability of the 3700 CCR allows the boat to carry full sail when others are reefing. Tacking is as simple as putting the helm over, the jib and mainsail tack themselves. Short tacking out of a harbor or anchorage is done with little effort.
When its time to ease the sheets, set the 3700 CCR's 150% furling masthead reacher. This sail can be used close reaching in lighter winds, broad reaching in heavier conditions and dead downwind, wing and wing with the mainsail. Tartan's pursuit of the perfect performance cruiser will keep you sailing while others have no choice but to start their engine.
Tartan 3700 CCR, dedicated to delivering Tartan comfort and packed with performance and handling features to please the most devout sailor.
***
Model Year
2013
Designer
Tim Jackett
Builder
Tartan Yachts
Length
37' - 11.27m
Beam
12'8"
Draft
5'
Displacement
16,150 Lbs
Hull Material
GRP
Engine
Yanmar 40hp. Engine room: • 40 hp diesel saildrive with pedestal mount single lever control
• 38 gallon (143.85 l) fuel capacity in aluminum tank with remote gauge
• Racor fuel filter/water separator
• Lead lined engine insulation
• Excellent engine service access front, sides and aft
• Fixed two-blade prop on saildrive
Fuel
143 Litres
Water
302 Litres
Accommodation
• Structural fiberglass timbers bonded to hull to carry mast and keel loads
• Structural bulkheads bonded to hull
• Bulkheads and risers are pressure laminate or varnished cherry faced marine plywood
• Hand fit varnished cherry trim throughout
• Solid stock raised panel varnished cherry cabinet doors with ventilation slots
• Positive lock polished chrome cabinet hardware
• 1” solid stock raised panel varnished cherry passage doors in full cherry framed jambs
• Polished chrome Mobella mortised door lock sets
• Solid stock varnished cherry cabinet faces throughout
• Solid cherry face, dovetail joined, all wood drawers throughout
• Custom solid stock main salon table with inlaid Tartan logo and centerline drawer storage
• Easy maintainance, varnished cherry battened overhead with strategically placed access panels
• Varnished teak and holly cabin sole with extensive teak banded access hatches
• Varnished teak handrails placed for security in a seaway
• Selection of designer fabrics available for interior upholstery
• (6) Stainless steel unlimited offshore CE approved deck hatches
• (12) Cabin side mounted stainless steel opening port lights with fly screens
• (3) Cockpit mounted stainless steel opening port lights with fly screens
• (2) 4” Chrome dorade vents with stainless steel guard
• Lexan sliding companionway hatch with fiberglass spray hood, solid teak hatch boards and trim
• Marine head with 24 gallon (90.85 l) holding tank w/deck pump out and vent
• Y-valve with direct overboard discharge for offshore use
• Macerator pump for holding tank discharge for offshore use
• Snake river holding tank remote level indicator
• Marine premium grade sanitation hoses with low odor permeability
• Separate stall shower with Plexiglas enclosure, molded seat
• Shower drains to separate sump with automatic electric pump for overboard discharge
• Premium marine grade head faucet and shower mixer
• Molded Granicote solid surface counter tops with integral sink
• Utility storage under sink through raised panel cherry door
• Ample storage in upper vanity
• Forward cabin with vanity and sink, extensive lockers, hanging locker and dovetail drawers
• Furniture grade main cabin settees and seats with contoured cushions
• Main cabin fit with cherry cabinets and ventilated raised panel doors throughout
• Through bulkhead raised panel ventilation door to forward cabin
• Large storage outboard of main cabin seat backs
• Main cabin settee converts to double berth
• Varnished, drop leaf, solid stock cherry table with center storage bin and two dovetail drawers
• Full navigation station to port with four drawers
• Navigation lockers with installation space for extensive electronics
• Aft cabin with a double berth, hanging locker and shelves
• Storage below berths
• Cockpit seat locker
• Cockpit lazarette hatches port and starboard
• Propane gas bottle storage in cockpit for two 11 lb (5 kg) tanks
• Structural bulkheads bonded to hull
• Bulkheads and risers are pressure laminate or varnished cherry faced marine plywood
• Hand fit varnished cherry trim throughout
• Solid stock raised panel varnished cherry cabinet doors with ventilation slots
• Positive lock polished chrome cabinet hardware
• 1” solid stock raised panel varnished cherry passage doors in full cherry framed jambs
• Polished chrome Mobella mortised door lock sets
• Solid stock varnished cherry cabinet faces throughout
• Solid cherry face, dovetail joined, all wood drawers throughout
• Custom solid stock main salon table with inlaid Tartan logo and centerline drawer storage
• Easy maintainance, varnished cherry battened overhead with strategically placed access panels
• Varnished teak and holly cabin sole with extensive teak banded access hatches
• Varnished teak handrails placed for security in a seaway
• Selection of designer fabrics available for interior upholstery
• (6) Stainless steel unlimited offshore CE approved deck hatches
• (12) Cabin side mounted stainless steel opening port lights with fly screens
• (3) Cockpit mounted stainless steel opening port lights with fly screens
• (2) 4” Chrome dorade vents with stainless steel guard
• Lexan sliding companionway hatch with fiberglass spray hood, solid teak hatch boards and trim
• Marine head with 24 gallon (90.85 l) holding tank w/deck pump out and vent
• Y-valve with direct overboard discharge for offshore use
• Macerator pump for holding tank discharge for offshore use
• Snake river holding tank remote level indicator
• Marine premium grade sanitation hoses with low odor permeability
• Separate stall shower with Plexiglas enclosure, molded seat
• Shower drains to separate sump with automatic electric pump for overboard discharge
• Premium marine grade head faucet and shower mixer
• Molded Granicote solid surface counter tops with integral sink
• Utility storage under sink through raised panel cherry door
• Ample storage in upper vanity
• Forward cabin with vanity and sink, extensive lockers, hanging locker and dovetail drawers
• Furniture grade main cabin settees and seats with contoured cushions
• Main cabin fit with cherry cabinets and ventilated raised panel doors throughout
• Through bulkhead raised panel ventilation door to forward cabin
• Large storage outboard of main cabin seat backs
• Main cabin settee converts to double berth
• Varnished, drop leaf, solid stock cherry table with center storage bin and two dovetail drawers
• Full navigation station to port with four drawers
• Navigation lockers with installation space for extensive electronics
• Aft cabin with a double berth, hanging locker and shelves
• Storage below berths
• Cockpit seat locker
• Cockpit lazarette hatches port and starboard
• Propane gas bottle storage in cockpit for two 11 lb (5 kg) tanks
Galley
• 3 burner Force 10 gimbaled LPG stove with oven and broiler
• (1) 11 lb (5 kg) LPG tank
• LPG sniffer with automatic shut off
• Cherry faced cabinetry with raised panel access doors
• Cherry faced, dovetailed cutlery drawers
• 9” deep stainless steel double sinks with premium marine grade galley faucet and manual foot pump with swivel spigot
• Granicote solid surface galley countertops available in several designer colors
• Storage under galley sink through ventilated raised panel cherry doors
• Hinge out galley trash bin with cherry raised panel door access
• Molded icebox with Granicote solid surface counter top and 4” foam insulation, insulated front and top load access
• Hot and cold pressure water with easy service access to pump and plumbing
• Freshwater plumbing features polyethylene tubing and Whale mechanical fittings
• All below water hose connections are double stainless steel clamped for added security
• Premium marine grade hoses used throughout
• 80 gallons (302.8 l) of freshwater tankage with distribution manifold
• Forespar Marelon thru-hull fittings throughout, UL approved and corrosion free
• Forward cabin vanity with sink, hot and cold water and Granicote solid surface counter top
• 6 gallon (27.7 l) water heater, with engine heat exchanger and 220 VAC operation
• (1) 11 lb (5 kg) LPG tank
• LPG sniffer with automatic shut off
• Cherry faced cabinetry with raised panel access doors
• Cherry faced, dovetailed cutlery drawers
• 9” deep stainless steel double sinks with premium marine grade galley faucet and manual foot pump with swivel spigot
• Granicote solid surface galley countertops available in several designer colors
• Storage under galley sink through ventilated raised panel cherry doors
• Hinge out galley trash bin with cherry raised panel door access
• Molded icebox with Granicote solid surface counter top and 4” foam insulation, insulated front and top load access
• Hot and cold pressure water with easy service access to pump and plumbing
• Freshwater plumbing features polyethylene tubing and Whale mechanical fittings
• All below water hose connections are double stainless steel clamped for added security
• Premium marine grade hoses used throughout
• 80 gallons (302.8 l) of freshwater tankage with distribution manifold
• Forespar Marelon thru-hull fittings throughout, UL approved and corrosion free
• Forward cabin vanity with sink, hot and cold water and Granicote solid surface counter top
• 6 gallon (27.7 l) water heater, with engine heat exchanger and 220 VAC operation
Shower
Yes
Toilet
Yes
Electrics
• Batteries, (3) Group 27
• Freedom 10 inverter/charger
• Polished chrome and stainless steel interior lighting
• Automatic lights in hanging locker, liquor locker and refrigerator compartment
• Service lighting in engine compartment
• Service lighting in cockpit lockers
• Directional reading lights at berths and main cabin settees
• Directional spot lights in galley and over main cabin table
• Recessed, dimmable overhead spotlights in cabin over head
• Interior courtesy lighting
• Cockpit and swim ladder courtesy lighting
• Dual 30 amp shore power services
• 50 foot shore power cord
• 220 VAC distribution panel prepped to accept gen set
• 220 VAC shore power outlets in each cabin, GFI protected
• 12 VDC metered distribution panel
• Battery selector switch
• Electrical bonding system
• Electric sump pump with automatic float switch for icebox and shower drains
• Electric bilge pump with automatic float switch with manual override
• UL approved, stranded, tinned copper wiring for increased corrosion resistance
• Wiring bundled in PVC conduit with additional conduit in place and available for future installations
• All wiring is properly chafe protected where it passes through bulkheads, liners and cabinetry
• ABYC color coded wiring throughout
• USCG approved navigation lights on bow rail, stern rail and mast
• Freedom 10 inverter/charger
• Polished chrome and stainless steel interior lighting
• Automatic lights in hanging locker, liquor locker and refrigerator compartment
• Service lighting in engine compartment
• Service lighting in cockpit lockers
• Directional reading lights at berths and main cabin settees
• Directional spot lights in galley and over main cabin table
• Recessed, dimmable overhead spotlights in cabin over head
• Interior courtesy lighting
• Cockpit and swim ladder courtesy lighting
• Dual 30 amp shore power services
• 50 foot shore power cord
• 220 VAC distribution panel prepped to accept gen set
• 220 VAC shore power outlets in each cabin, GFI protected
• 12 VDC metered distribution panel
• Battery selector switch
• Electrical bonding system
• Electric sump pump with automatic float switch for icebox and shower drains
• Electric bilge pump with automatic float switch with manual override
• UL approved, stranded, tinned copper wiring for increased corrosion resistance
• Wiring bundled in PVC conduit with additional conduit in place and available for future installations
• All wiring is properly chafe protected where it passes through bulkheads, liners and cabinetry
• ABYC color coded wiring throughout
• USCG approved navigation lights on bow rail, stern rail and mast
Mast / Rigging
Mast:
• Novis Composites carbon-fiber mast for greater strength, lower weight, increased safety margins and improved performance
• White AwlGrip coated double spreader design
• Tapered mast section for reduced weight aloft
• Tapered airfoil swept spreaders
• Custom designed carbon fiber masthead
• 1 x 19 Stainless steel wire rigging with forged turnbuckles
• Internal halyards
• Mast to deck tie rod to carry running rigging loads
• Custom designed stainless steel chainplate system ties to extensive internal FRP structure and hull
• Mast head anchor light
• Steaming light with foredeck illuminator
• Mast wiring conduit
• VHF wiring for masthead antenna
• Spartite mast sealing and chock system
• Harken furler for self-tacking jib
Boom:
• White AwlGrip, epoxy and carbon fiber composite “pocket boom”
• (2) Single line reefs led aft to cockpit winch, allows reefing from the cockpit
• Internal 4:1 outhaul
• Two-part boom topping lift
• Rod boom vang with tag line led aft
• (1) Low stretch genoa halyard
• (1) Low stretch main halyard
• (1) Dacron self-tacking jib sheet
• (1) Dacron mainsheet
• (2) Main traveler taglines
• (2) Reef lines
• Novis Composites carbon-fiber mast for greater strength, lower weight, increased safety margins and improved performance
• White AwlGrip coated double spreader design
• Tapered mast section for reduced weight aloft
• Tapered airfoil swept spreaders
• Custom designed carbon fiber masthead
• 1 x 19 Stainless steel wire rigging with forged turnbuckles
• Internal halyards
• Mast to deck tie rod to carry running rigging loads
• Custom designed stainless steel chainplate system ties to extensive internal FRP structure and hull
• Mast head anchor light
• Steaming light with foredeck illuminator
• Mast wiring conduit
• VHF wiring for masthead antenna
• Spartite mast sealing and chock system
• Harken furler for self-tacking jib
Boom:
• White AwlGrip, epoxy and carbon fiber composite “pocket boom”
• (2) Single line reefs led aft to cockpit winch, allows reefing from the cockpit
• Internal 4:1 outhaul
• Two-part boom topping lift
• Rod boom vang with tag line led aft
• (1) Low stretch genoa halyard
• (1) Low stretch main halyard
• (1) Dacron self-tacking jib sheet
• (1) Dacron mainsheet
• (2) Main traveler taglines
• (2) Reef lines
Deck Gear
HULL
• NPG Isothalic gelcoat for superior gloss retention
• Epoxy hull laminate producing a strength to weight ratio not attainable in any production polyester laminates
• Epoxy allows all uni-directional fabric laminate
• Epoxy's superior adhesive strength reduces overall hull weight while increasing strength producing a faster and safer performance cruising yacht
• Strict resin control through use of resin impregnation produces glass to resin ratio of 65% glass, 35% resin. (production polyester boats are typically 25% glass, 75% resin=heavy and brittle)
• Superior fatigue and cyclic loading characteristics of epoxy ensure a hull that retains its shape and strength longer resulting in higher resale value
• Extensive internal structure designed to carry rig and keel loads, glass taped into hull using modified epoxy resin
• Synthetic foam hull coring, provides lightweight structure, stiffness, sound and thermal insulation and superior impact resistance
• Hull is vacuum-bagged and structure is laminated in “one shot” thus does not rely on secondary bonding of structural materials
• Epoxy hull laminate is far stronger than any polyester laminate of similar weight, i. E. Greater safety margins while delivering superior performance over normal production polyester hulls
• 90 degree throw, Marelon, flush thru hull fittings. Marelon fittings are UL and ABS approved and are corrosion free
• Complete interior paintout for enhanced cosmetics and to seal interior laminate surfaces
• Built to meet ABS Plan Certification
• Industry leading, non-prorated 15 year hull structural and blister guarantee
• Warranty is transferable
• Deck is a balanced composite laminate utilizing vinylester resin, unidirectional “E”-glass reinforcements, and high strength/stiffness Baltek premium AL 600 balsa coring
• Our custom resin infusion process creates the best resin-to-glass reinforcement ratio possible resulting in the stiffest, lightest, strongest deck in production boatbuilding
• Weight saved high increases righting moment improving safety and performance
• Infusion process with vinylester resin provides a stronger more fatigue resistant deck laminate than typical production polyester deck laminates
• Deck is locally reinforced at high load areas with additional plies of bidirectional “E”-glass reinforcement
• NPG Isothalic gelcoat for improved color and gloss retention
• Gelcoat is formulated for greater flexibility reducing occurrence of common gel coat crazing
• White or off-white gelcoat with patterned, molded non-skid surface on horizontal deck areas.
• Balsa coring provides acoustic as well as thermal insulation increasing interior comfort
• Core “windows” at all deck hardware installations. Window is reinforced with solid laminate and isolates hardware installations from cored laminate, reducing stress crazes around hardware often seen in laminates reinforced with plywood and eliminates rot problems associated with decks reinforced with plywood
• Structurally loaded hardware backed with either FRP or 6061 T6 aluminum backing plates
• Time-tested hull to deck joint. Deck is fastened to inward facing hull flange with integrally molded hardened 6061 T6 aluminum bar forming a full sheer length backing plate
• Stainless steel fasteners sized to meet or exceed ABS standard for offshore use, are drilled and tapped into aluminum bar, offering full serviceability from the outside of the boat
• Deck to hull joint bonded with 3M 5200 adhesive sealant
KEEL & BALLAST
6,000 lb. (2721 kg) fin, 6,200 lb. (2812 kg) beavertail or 6400 lb. (2703 kg) keel centerboard, 4% antimonial hardened lead casting
• Template ground for fit and maximum performance
• Faired and epoxy coated
• Deep fin, beavertail bulb design, or keel/centerboard significantly lowers center of gravity improving righting moment. Result is increased sail carrying ability, performance and safety
• Ballast is thru-bolted to hull with cast in place stainless steel bolts. Quantity and size exceed ABS standard for offshore use
RUDDER
• Pedestal style rack and pinion steering pedestal
• 44” stainless steel leather covered Commodore wheel
• Stainless steel pedestal guard
• Single-lever, pedestal-mounted engine control with stainless steel handle
• 5” binnacle compass
• High density, closed cell urethane foam rudder blade with modified epoxy reinforced skins
• 3 1/2” type 304 stainless steel rudder post
• High density low friction rudder bearings
• Bronze rudder stuffing box
• Emergency tiller
• (2) Harken 53.2 STC (self-tailing chrome) primary genoa winches
• (1) Harken 40.2 STC (self-tailing chrome) aft house top-mounted winch for sail controls and mainsheet
• (1) Harken 46.2 STC (self-tailing chrome) aft house top-mounted winch for sail controls and self-tacking jib sheet
• 27” x 1 1/8” diameter, all-welded stainless steel stanchions, 4 hole mounting base with backing plate installation
• 27” x 1 1/8” tube double stainless steel bow rail with rail-mounted combination navigation light
• 27” x 1 1/8” tube double stainless steel split stern rail with rail mounted navigation light
• 7 x 19 double lifelines with port, starboard, and stern boarding gates with pelican hooks
• Custom designed and fabricated stainless steel stem fitting with integral single bow roller
• Custom fabricated rail mount chocks for bow mooring cleats
• Stainless steel 10” bow mooring cleats with backing plate
• Custom fabricated mid mooring chocks with 10” stainless steel mooring cleats, installed with backing plates
• Stern stainless steel quarter caps
• Stainless steel 10” aft mooring cleats
• 2” x 1 1/2” teak toerails through-bolted to 6060 T6 aluminum bar in hull flange
• Teak taffrail
• Polished stainless steel toerail mounted genoa track with eye slides
• Harken curved tracks for self-tacking jib
• (2) Harken aluminum winch handles
• (8) Spinlock rope clutches for aft sail control leads
• Harken stacked double aft lead control blocks
• Harken turning blocks at base of mast for aft sail control leads
• Five-part Harken mainsheet system led to housetop self tailing winch
• Harken traveler with six-part tagline adjustment led to aft end of housetop for easy adjustment
• Custom stainless steel mast collar with multiple attachments for blocks
• Polished chrome 4” dorades on teak dorade caps
• (2) Stainless steel dorade guards
• Companionway hatch sea hood with instrument pod
• 5” binnacle compass
• Match molded anchor locker lid with latch
• CE unlimited offshore approved stainless steel deck hatches
• CE unlimited offshore approved stainless steel port lights
• On deck drains to waterline discharge, eliminates hull streaking
• Extensive housetop teak handrails
• Manual cockpit mounted bilge pump
• Drink holders in cockpit
• Offshore ready, match-molded, and gasketed cockpit seat hatches
• Swim platform with a retracting stainless steel ladder
• NPG Isothalic gelcoat for superior gloss retention
• Epoxy hull laminate producing a strength to weight ratio not attainable in any production polyester laminates
• Epoxy allows all uni-directional fabric laminate
• Epoxy's superior adhesive strength reduces overall hull weight while increasing strength producing a faster and safer performance cruising yacht
• Strict resin control through use of resin impregnation produces glass to resin ratio of 65% glass, 35% resin. (production polyester boats are typically 25% glass, 75% resin=heavy and brittle)
• Superior fatigue and cyclic loading characteristics of epoxy ensure a hull that retains its shape and strength longer resulting in higher resale value
• Extensive internal structure designed to carry rig and keel loads, glass taped into hull using modified epoxy resin
• Synthetic foam hull coring, provides lightweight structure, stiffness, sound and thermal insulation and superior impact resistance
• Hull is vacuum-bagged and structure is laminated in “one shot” thus does not rely on secondary bonding of structural materials
• Epoxy hull laminate is far stronger than any polyester laminate of similar weight, i. E. Greater safety margins while delivering superior performance over normal production polyester hulls
• 90 degree throw, Marelon, flush thru hull fittings. Marelon fittings are UL and ABS approved and are corrosion free
• Complete interior paintout for enhanced cosmetics and to seal interior laminate surfaces
• Built to meet ABS Plan Certification
• Industry leading, non-prorated 15 year hull structural and blister guarantee
• Warranty is transferable
• Deck is a balanced composite laminate utilizing vinylester resin, unidirectional “E”-glass reinforcements, and high strength/stiffness Baltek premium AL 600 balsa coring
• Our custom resin infusion process creates the best resin-to-glass reinforcement ratio possible resulting in the stiffest, lightest, strongest deck in production boatbuilding
• Weight saved high increases righting moment improving safety and performance
• Infusion process with vinylester resin provides a stronger more fatigue resistant deck laminate than typical production polyester deck laminates
• Deck is locally reinforced at high load areas with additional plies of bidirectional “E”-glass reinforcement
• NPG Isothalic gelcoat for improved color and gloss retention
• Gelcoat is formulated for greater flexibility reducing occurrence of common gel coat crazing
• White or off-white gelcoat with patterned, molded non-skid surface on horizontal deck areas.
• Balsa coring provides acoustic as well as thermal insulation increasing interior comfort
• Core “windows” at all deck hardware installations. Window is reinforced with solid laminate and isolates hardware installations from cored laminate, reducing stress crazes around hardware often seen in laminates reinforced with plywood and eliminates rot problems associated with decks reinforced with plywood
• Structurally loaded hardware backed with either FRP or 6061 T6 aluminum backing plates
• Time-tested hull to deck joint. Deck is fastened to inward facing hull flange with integrally molded hardened 6061 T6 aluminum bar forming a full sheer length backing plate
• Stainless steel fasteners sized to meet or exceed ABS standard for offshore use, are drilled and tapped into aluminum bar, offering full serviceability from the outside of the boat
• Deck to hull joint bonded with 3M 5200 adhesive sealant
KEEL & BALLAST
6,000 lb. (2721 kg) fin, 6,200 lb. (2812 kg) beavertail or 6400 lb. (2703 kg) keel centerboard, 4% antimonial hardened lead casting
• Template ground for fit and maximum performance
• Faired and epoxy coated
• Deep fin, beavertail bulb design, or keel/centerboard significantly lowers center of gravity improving righting moment. Result is increased sail carrying ability, performance and safety
• Ballast is thru-bolted to hull with cast in place stainless steel bolts. Quantity and size exceed ABS standard for offshore use
RUDDER
• Pedestal style rack and pinion steering pedestal
• 44” stainless steel leather covered Commodore wheel
• Stainless steel pedestal guard
• Single-lever, pedestal-mounted engine control with stainless steel handle
• 5” binnacle compass
• High density, closed cell urethane foam rudder blade with modified epoxy reinforced skins
• 3 1/2” type 304 stainless steel rudder post
• High density low friction rudder bearings
• Bronze rudder stuffing box
• Emergency tiller
• (2) Harken 53.2 STC (self-tailing chrome) primary genoa winches
• (1) Harken 40.2 STC (self-tailing chrome) aft house top-mounted winch for sail controls and mainsheet
• (1) Harken 46.2 STC (self-tailing chrome) aft house top-mounted winch for sail controls and self-tacking jib sheet
• 27” x 1 1/8” diameter, all-welded stainless steel stanchions, 4 hole mounting base with backing plate installation
• 27” x 1 1/8” tube double stainless steel bow rail with rail-mounted combination navigation light
• 27” x 1 1/8” tube double stainless steel split stern rail with rail mounted navigation light
• 7 x 19 double lifelines with port, starboard, and stern boarding gates with pelican hooks
• Custom designed and fabricated stainless steel stem fitting with integral single bow roller
• Custom fabricated rail mount chocks for bow mooring cleats
• Stainless steel 10” bow mooring cleats with backing plate
• Custom fabricated mid mooring chocks with 10” stainless steel mooring cleats, installed with backing plates
• Stern stainless steel quarter caps
• Stainless steel 10” aft mooring cleats
• 2” x 1 1/2” teak toerails through-bolted to 6060 T6 aluminum bar in hull flange
• Teak taffrail
• Polished stainless steel toerail mounted genoa track with eye slides
• Harken curved tracks for self-tacking jib
• (2) Harken aluminum winch handles
• (8) Spinlock rope clutches for aft sail control leads
• Harken stacked double aft lead control blocks
• Harken turning blocks at base of mast for aft sail control leads
• Five-part Harken mainsheet system led to housetop self tailing winch
• Harken traveler with six-part tagline adjustment led to aft end of housetop for easy adjustment
• Custom stainless steel mast collar with multiple attachments for blocks
• Polished chrome 4” dorades on teak dorade caps
• (2) Stainless steel dorade guards
• Companionway hatch sea hood with instrument pod
• 5” binnacle compass
• Match molded anchor locker lid with latch
• CE unlimited offshore approved stainless steel deck hatches
• CE unlimited offshore approved stainless steel port lights
• On deck drains to waterline discharge, eliminates hull streaking
• Extensive housetop teak handrails
• Manual cockpit mounted bilge pump
• Drink holders in cockpit
• Offshore ready, match-molded, and gasketed cockpit seat hatches
• Swim platform with a retracting stainless steel ladder
