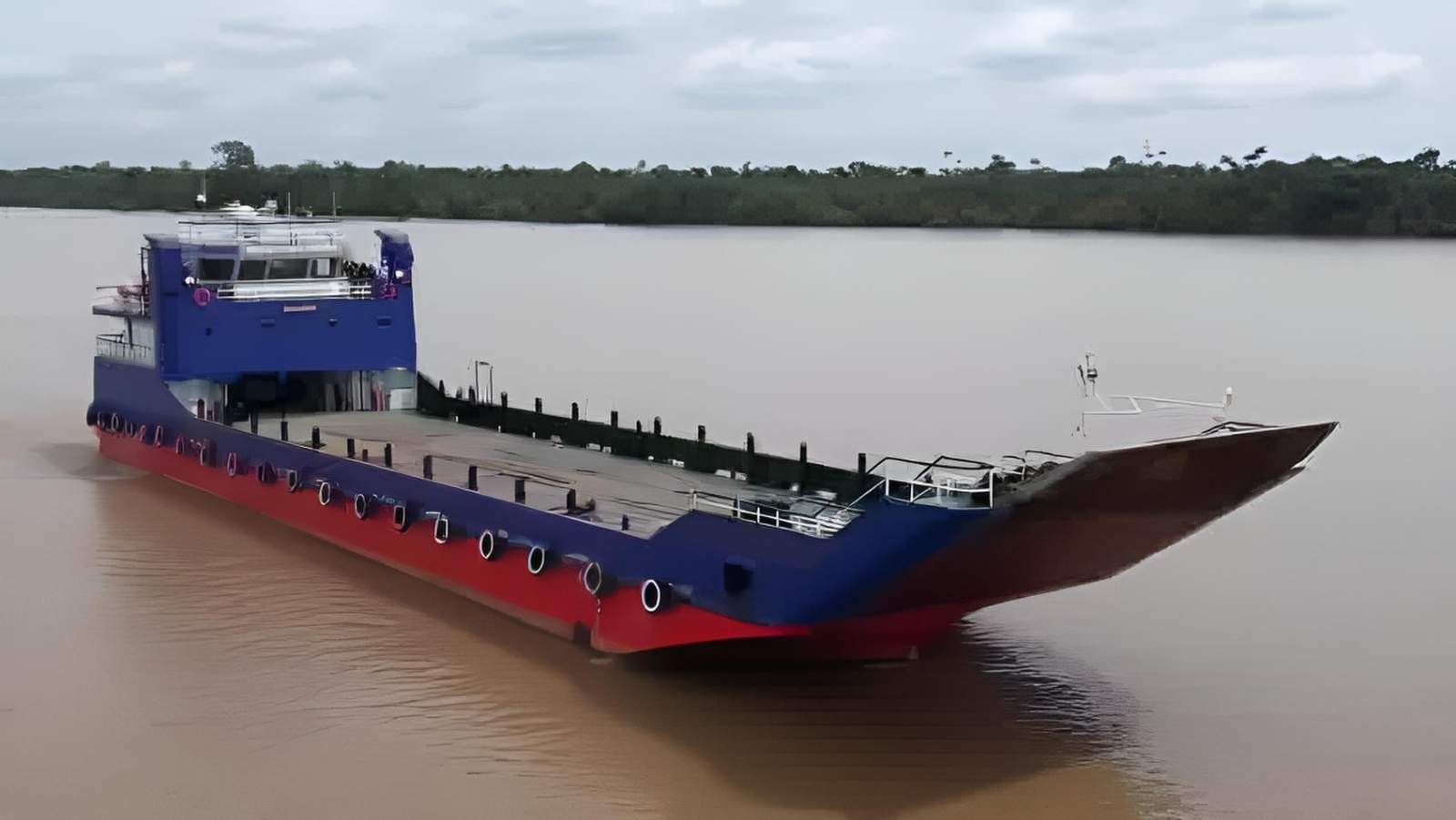

NEW 61.77m Landing Craft
Max Speed: 11.00 knots. Economical Speed: 9.00 knots. Fresh Water Consumption: 4 ton / day. Fuel Type:MDO. Fuel Consumption at Economical Speed: 250 liters / day. Clear Deck Space Area: 468 mtr. Sqr. No of crew berths: 13 person. Main Engines: 2 x Mitsubishi S6A3 MPTK (490 KW @1960 pm).
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
Region
Asia
Location
Indonesia
Reference
5796
Model Year
New
Hull
Steel
Length
202' 8" - 61.77m
Beam
12.00m (39ft 4.4in)
Draft
3.30m (10ft 10in)
Engine Make
Mitsubishi
Engine
VESSEL PERFORMANCES PARTICULARS
Economical Speed: 9.00 knots
Fuel Type:MDO
Fuel Consumption at Economical Speed: 250 liters / day
PROPULSION AND MACHINERY DETAILS
Main Engines: 2 x Mitsubishi S6A3 MPTK (490 KW @1960 pm)
Gear Box: Advance Gearbox D300A 5.9: 1
Bow Thruster: BTX 2500CC plus abt 3.12 tons
Generator Bow Thruster: 1 x Cummins 350 KW for Bow Thruster
Sewage Tank: 1.00m3
Generator: 2x Weichai 100 KW @1500 rpm, 1x Weichai 60kw @ 1500 rpm
Propulsion: Fixed Pitch
Emergency Generator: 1x Weichai 50 kw @ 1500 rpm
Sewage Treatment System: HNBA-15
Number Engines
2
Power Source
Diesel
Max Speed
11.00 knots
Drive Type
None
Fuel
371.337m3
Water
256.526m3 Fresh Water Consumption: 4 ton / day
Accommodation
ACCOMMODATION DETAILS
No of crew berths: 13 person
No of crew berths: 13 person
Safety Gear
LSA AND FRA EQUIPMENT
Navigation & Search Light: 1 x 100 watt
Fire Fighting as per SOLAS: Available
Inflatable Life Raft: 2 x 16 men
Rescue Boat: Type - WJ45KR/L-4.50m
SPECIAL FEATURE DETAILS
FiFi Pump Details: Ebara Pump 80x65 FS JA
Air Conditioning: 2x Compressor 15 HP 380-440V
Chiller For Meat And Vegetable: 2x Compressor 5 hp. 3 PH loW Temp.
Total ballast capacity of the ship in cubic meters:70.45m
Spray Boom Details: 2 unit
Throw Distance Deepest Ballast Drafts (Normal & Heavy Weather: 25m
Identification (rank) of the appointed ballast water management officer: Chief Officer
Navigation & Search Light: 1 x 100 watt
Fire Fighting as per SOLAS: Available
Inflatable Life Raft: 2 x 16 men
Rescue Boat: Type - WJ45KR/L-4.50m
SPECIAL FEATURE DETAILS
FiFi Pump Details: Ebara Pump 80x65 FS JA
Air Conditioning: 2x Compressor 15 HP 380-440V
Chiller For Meat And Vegetable: 2x Compressor 5 hp. 3 PH loW Temp.
Total ballast capacity of the ship in cubic meters:70.45m
Spray Boom Details: 2 unit
Throw Distance Deepest Ballast Drafts (Normal & Heavy Weather: 25m
Identification (rank) of the appointed ballast water management officer: Chief Officer
Electronics
COMMUNICATION AND NAVIGATION EQUIPMENT
MF / HF / VHF: IC - M220
SSB: Furuno FS 2575 C
Radar: Furuno Radar MU190
GPS: Furuno GP-170
Echo Sounder:Garmin 350 FF
INMARSAT: 447090310
Navtex: Furuno NX-300
Magnetic Compass: Daiko Keiki
AIS: Samyung Ais-son
Auto Pilot: TBA
ECDIS: Transas
MF / HF / VHF: IC - M220
SSB: Furuno FS 2575 C
Radar: Furuno Radar MU190
GPS: Furuno GP-170
Echo Sounder:Garmin 350 FF
INMARSAT: 447090310
Navtex: Furuno NX-300
Magnetic Compass: Daiko Keiki
AIS: Samyung Ais-son
Auto Pilot: TBA
ECDIS: Transas
Remarks
LBP: 55.00m
Depth Moulded: 3.30m
Light Ship: TBA
DWT: 1200 tones
GRT: 674
NRT: 203
Keel Plate: 12mm
Bottom Plate: 10mm
Side Plate: 10mm
Deck Plate: 8mm
VESSEL CARGO PARTICULARS
Clear Deck Space Area: 468 mtr. Sqr
Cargo Tank Details
Total Cargo Weight The Vessel: TBA
Can Carry/DWCC
Cargo Doors/Ramp Doors: L=8.00m
Details: B= 9.50m
Deck Strength: 5.57 ton /msqr
Maximum Height of Cargo Allowed: TBA
No. Of Refer Sockets: 10 units
Clear Deck Dimensions L* B in M: L 39.00m, B 1140m
Depth Moulded: 3.30m
Light Ship: TBA
DWT: 1200 tones
GRT: 674
NRT: 203
Keel Plate: 12mm
Bottom Plate: 10mm
Side Plate: 10mm
Deck Plate: 8mm
VESSEL CARGO PARTICULARS
Clear Deck Space Area: 468 mtr. Sqr
Cargo Tank Details
Total Cargo Weight The Vessel: TBA
Can Carry/DWCC
Cargo Doors/Ramp Doors: L=8.00m
Details: B= 9.50m
Deck Strength: 5.57 ton /msqr
Maximum Height of Cargo Allowed: TBA
No. Of Refer Sockets: 10 units
Clear Deck Dimensions L* B in M: L 39.00m, B 1140m
