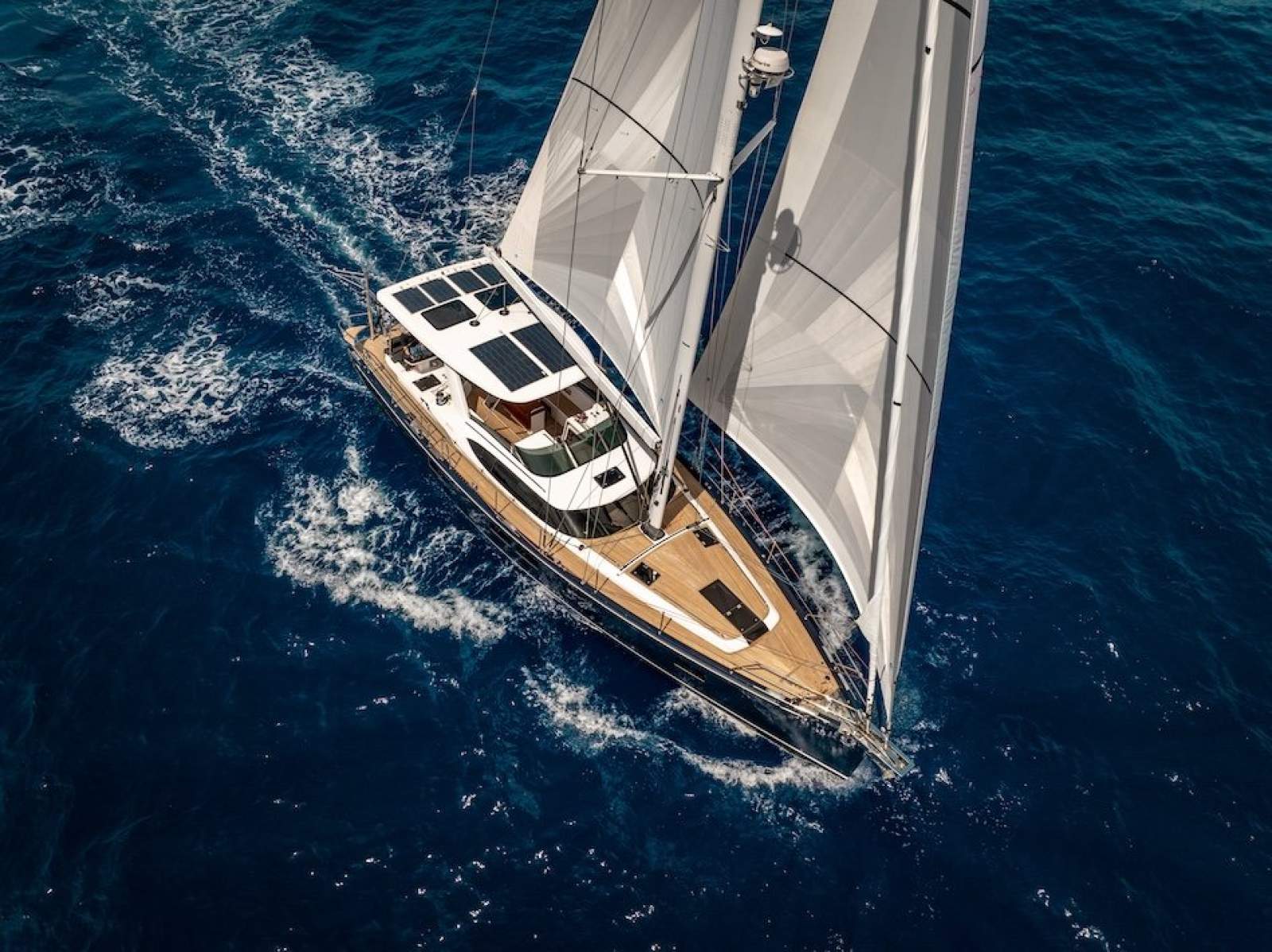

NEW Hylas H57

2024 Hylas H57 Hull 7 SPECS | AVAILABLE FOR IMMEDIATE DELIVERY | FLORIDA

HULL CONSTRUCTION
o Vacuum infused E-glass hull with closed cell foam core
o Reinforced with multiaxial fiberglass laminate with oversized chainplate backing plates
o Watertight bow and stern sections
o Limber holes installed throughout the hull to promote drainage to the bilge sump
o 12 flush-mounted, oversized sealed portlights for abundant natural lighting
o 5 coats of of epoxy barrier paint before bottom antifoul paint

KEEL
o Draft 6'5"
o External solid lead keel
o 14 30mm and 2 16mm stainless keelbolts
o Transverse mounted 16mm backing plates

TRANSOM
o Lowering transom to provide access to transom steps storage and swim platform with
7" stainless dinghy cleats
o Deck WingsTM to expand aft deck social space
o Double lifeline stern gate
o Transom steps finished with 3/8" teak
o Stainless steel boarding handrails
o Stainless steel swim ladder

DECK CONSTRUCTION
o Hand laid E-glass fiberglass construction using vinyl-ester resins and Airex closed cell
foam core
o Bonded teak decks
o Molded fiberglass bulwark
o Pop-up deck cleats
o 32" stanchions with integrated boarding gates on port and starboard sides
o Stainless steel handrails
o Stainless steel fold-down side-boarding ladder
o Signature Hylas stern quarter seats
o Stainless life rail extends to side gates
o Simpson series davits
o Stainless steel antenna mast, starboard quarter

CENTER COCKPIT
o Extended hardtop with two aft fixed single glazing panels over helm stations
o Spray shield
o Twin helm station configuration with separate center cockpit lounge area
o Carbonautica 39" 5-spoke composite wheels in either black or white
o Cubbies with fiddles for convenient stowage
o Bonded 1/2" solid teak cockpit sole
o Teak cockpit lounge table with built-in insulated beverage cooler
o Sliding companionway hatch
o Stainless steel companionway handrails
o Oversized cockpit scuppers
o Stainless steel folding pad eyes for tethers located at companionway and both helm
stations
o White fiberglass arch and hardtop with carbon fiber and stainless steel reinforcements
o Cushion backrest pulpit rails at aft end of cockpit

HATCHES AND DECK LOCKERS
o Forepeak deck locker forward of the collision bulkhead with storage for primary and
secondary ground tackle as well as separate sail locker
o Full beam lazarette
o Recessed life raft locker at transom
o LPG vented propane locker with two 20 lb. Standard tanks
o 7 flush-deck hatches with stainless steel frames and acrylic lenses
o 4 portlights opening inboard toward the cockpit
o Stainless steel line-hanging rails in deck lockers
o Glendinning Cable Master 50A shore power cord electric spool with a 50' shore power
cord installed in the transom garage

WINCHES
o 2 electric Antal 66 XT chromed 2-speed self-tailing primary winches
o 2 electric Antal 66 XT chromed 2-speed self-tailing secondary winches (Available in
black)
o Electric Antal 52 XT chromed 2-speed self-tailing cockpit winch

GROUND TACKLE & MOORING
o Maxwell RC12 24v vertical windlass with foot controls at bow
o AA560 windlass control with chain counter at helm
o Helm controller for windlass
o Ultra UA45 100 lb. Polished stainless steel primary anchor
o Stainless steel bow sprit with intergrated anchor roller
o Six New England Ropes docklines
o Four Taylor fenders

RUDDER & STEERING
o Twin spade rudders
o Jefa torque-tube and transmission gearbox steering system
o Two Jefa 17-DUT-S624 transmission autopilot units

SPARS & RIGGING
o Selden Solent rigged aluminum two-spreader mast with hydraulically controlled
in-mast furling main and Selden boom
o Three Antal halyard tension tracks located on mast
o LED navigation lights including tri-color, anchor, steaming and foredeck lights
o Twin Selden HT-W12/14 black anodized hydraulic backstay adjusters
o Selden black anodized hydraulic boom vang
o Selden Furlex hydraulic genoa and jib furler
o Discontinuous 316 stainless steel 1x19 wire standing rigging with Sta-Lok mechanical
fittings
o In-boom Preventer led to cockpit
o Outhaul led to cockpit
o 12-strand Dyneema halyards
o Dyneema-cored running rigging
o Self-tacking Jib with controls led to cockpit

SAILS
o Standard sail package from North Sails NPL Tour Xi offshore main, jib and genoa

ENGINE & GENERATOR
o Spurs Shaft Line Cutter - Assembly C 1-3/4"
o Volvo Penta D3-150 5-cylinder 2.4 liter 150 hp diesel engine
o Dual Racor 500 fuel-filtration system
o Custom exhaust/water separator
o Volvo engine controls located at both helm stations
o Bruntons Varifold 4-blade 24" folding prop
o Northern Lights 12kw generator
o Generator control panel at nav station
o Full height engine room access from nav station
o CE-approved fire-retardant and noise-dampening insulation
o Two 143-gallon diesel tanks for a total of 286 gallons
o Walbro fuel transfer pump
o Side-power 24v variable speed twin counter-rotating 5-blade bow thruster.
o Stern thruster

SYSTEMS
o Two 130-gallon stainless steel freshwater tanks for total of 260 gallons
o Sensotex freshwater gauges at nav station
o Torrid stainless steel 17-gallon 110v freshwater heater
o Spectra Newport 1000c 24v with Z-Ion filter with control panel at the navigation station
41 g (155 l) per hour
o Two fiberglass holding tanks, 23-gallons forward and 40-gallons aft
o Termodinamica HVAC Two 18,000 BTU units for the salon, One 18,000 BTU each for
the aft cabin and forward cabin
o Rule 4000 24v high capacity 4000-gallon per hour primary automatic bilge pump
o Additional 24v 320-gallon per hour bilge pumps in bilge sump and transom garage
o Arid Bilge system 3 zone series 2
o Manual bilge pump located in cockpit
o Transom hot and cold freshwater shower
o Freshwater and saltwater washdowns at bow and stern
o Freshwater shore connection at transom
o Fireboy 200 cft automatic engine room suppression and alarm system
o One Halatron 5 lb handheld fire extinguisher in engine room
o Three handheld dry chemical 5 lb fire extinguishers located in cabins
o Fire blanket in galley

ELECTRICAL SYSTEM
o Glendinning Cable Master 50A shore power cord electric spool with a 50' shore power
cord installed in transom locker
o Bridgeport magnets Dual MP6 50/60 Hz isolation transformer, 12kVA 50A with
automatic voltage boost system
o 24-volt house battery bank of 3 Xantrex Lithium Ion batteries with a capacity of 615
amp hours, expandable to 4 batteries and 820 amp hours
o Dedicated engine start 12-volt Lifeline AGM GPL-27T 100 amp hour battery
o Dedicated generator start 12-volt Lifeline AGM GPL-24T 80 amp hour battery
o 12-volt house battery Lifeline AGM GPL-27T 100 amp hour
o Serpentine belt driven high-output Mastervolt 24-volt 110 amp hour primary alternator
with three-stage regulator dedicated to the house battery bank
o Secondary 12-volt 180 amp hour alternator for the service bank and both the engine
and generator start batteries
o Xantrex Freedom SW 3000W True Sine Wave inverters and 75Ah charger 120vAC/
24vDC (total of 2 units plus system control panel) dedicated to the house battery bank
o Xantrex TrueCharge2 12v 40A bank charger (total of 1 unit) dedicated to the 12-volt
engine and generator start batteries, plus the 12-volt house battery

NAVIGATION & COMMUNICATION
o Raymarine Axiom 16" XL with HybridTouch displays with integrated high CHIRP
conical sonar at both helms
o Raymarine Axiom 16" XL installed at the navigation station
o Raymarine 4kW 48 nautical mile range HD color radar and associated cabling
o Raymarine Clear CruiseTM AR - (1)CAM220 eyeball camera. One on each side of the
spreader for viewing forward
o Raymarine (1)CAM210 bullet camera. One on each side of the hardtop for viewing
mainsail
o Flir M232 marine thermal camera. 360 degree viewing while underway. Combine with
a Raymarine Axiom MFD and ClearCruiseTM intelligent thermal analytics
o Thermal camera FLIR AX8. Continuous condition and safety monitoring. The AX8
helps guard against unplanned outages, service interruptions, and failure of electrical
or mechanical equipment. One in the engine room
o Sirius satellite weather receiver + Weather System, SR200-Sirius XM infolink weather
RX kit
. O Three Raymarine i70 displays over the companionway and two i70 displays
at both helms
o Raymarine EV-400 Sail with p70 autopilot displays at both helms
o Raymarine Raystar RS150 72-channel 10Hz GPS receiver
o 5" Ritchie Globemaster FD-500-EP flush mount with red LED backlights
o Raymarine Ray73 VHF radio with AIS receiver, digital selective calling, and loudhailer
o Raymic 60/70 handheld VHF mic installed at the helm
o Raymarine AIS 700 receiver and transmitter - Class B AIS with antenna splitter
o Fusion RA770 stereo system with AM/FM, Bluetooth, Sirius XM, and aux input
o Stereo speakers throughout the yacht including two in the master stateroom, two in the
salon, and two on the hardtop

INTERIOR CABINETRY
o White Oak with teak sole

MASTER STATEROOM
o Queen size centerline berth
o Lee cloth and pad-eyes installed (3 Lee clothes & 6 Pad-eyes per berth)
o Drawers located port and starboard beneath the berth
o Double lounge seat on starboard and storage on port
o Extra-large cedar-lined hanging lockers located port and starboard
o Nightstands with fiddled surfaces located on both sides of the berth
o Pre-wiring for TV mounted on the Master Stateroom forward bulkhead, the installation
area 35"x 20" will be solid wood panel (owner to supply TV and bracket) (Maximum
dimension 59"x32")(Size65")
o HDMI outlet installed near headboard for the television in the master stateroom

MASTER HEAD
o Electric 24v Raritan Marine Elegance head with sea/fresh water inlet option
o Self-priming Dometic Sealand "TW" Series 24v premium macerator pump
o Head base finished with white fiberglass

o Meganite countertops with fiddles
o Hylas designed white sink
o Mirror-faced medicine cabinet located above the sink
o Double door cabinet below the sink
o Teak floor
o Separate stall shower with tempered glass shower door
o Molded fiberglass shower seat
o Teak slat shower floor
o Secondary walkin engine room access (Optional)

GALLEY
o Ocean Chef 3-burner, glass door(G1010G), and stainless steel safety bar
o Isotherm Inox CR36 stainless steel beverage drawer
o Raritan ice makers Icerette Model 87 at the forward most cabinet above the counter
o Seagull X-2KF water filtration system with ice maker plumbing
o Fisher & Paykel FISDD24SCTX9N 24 inch drawer dishwasher
o Meganite countertops with fiddles
o GN Espace Gastronorm A (large) galley sink compatible with a variety of Gastronorm
galley accessories
o Vitrifrigo DW360 BTX upper refrigerator compartment (5.5 cft) and lower freezer
compartment (5.1 cft) with steelock flush latches
o Microwave: Panasonic NN-CD87KS Home Chef 4-in-1 microwave oven with air fryer,
convection bake, FlashXpress broiler, inverter, 1000 watt, stainless steel, 1.2 cft or
similar
o Full-size pullout rubbish bin. Electric trash compactor optional
o Countertop built-in knife rack

MAIN SALON
o Five panoramic 3D laminated curved safety-glass windows with a carbon fiber
unidirectional reinforced frame
o Single lounge seat to port, aft-facing against the forward bulkhead
o Double lounge seat to starboard, aft-facing against the forward bulkhead
o End tables with fiddled edges to port and starboard between the settees and lounge
seats
o Cabinets above the seating area port and starboard adjacent to the forward bulkhead
o Volumes of storage capacity beneath the port and starboard settees and lounge seats
as well as top-access storage inside the end tables
o Two overhead stainless steel handholds with leather wrap
o Stainless
