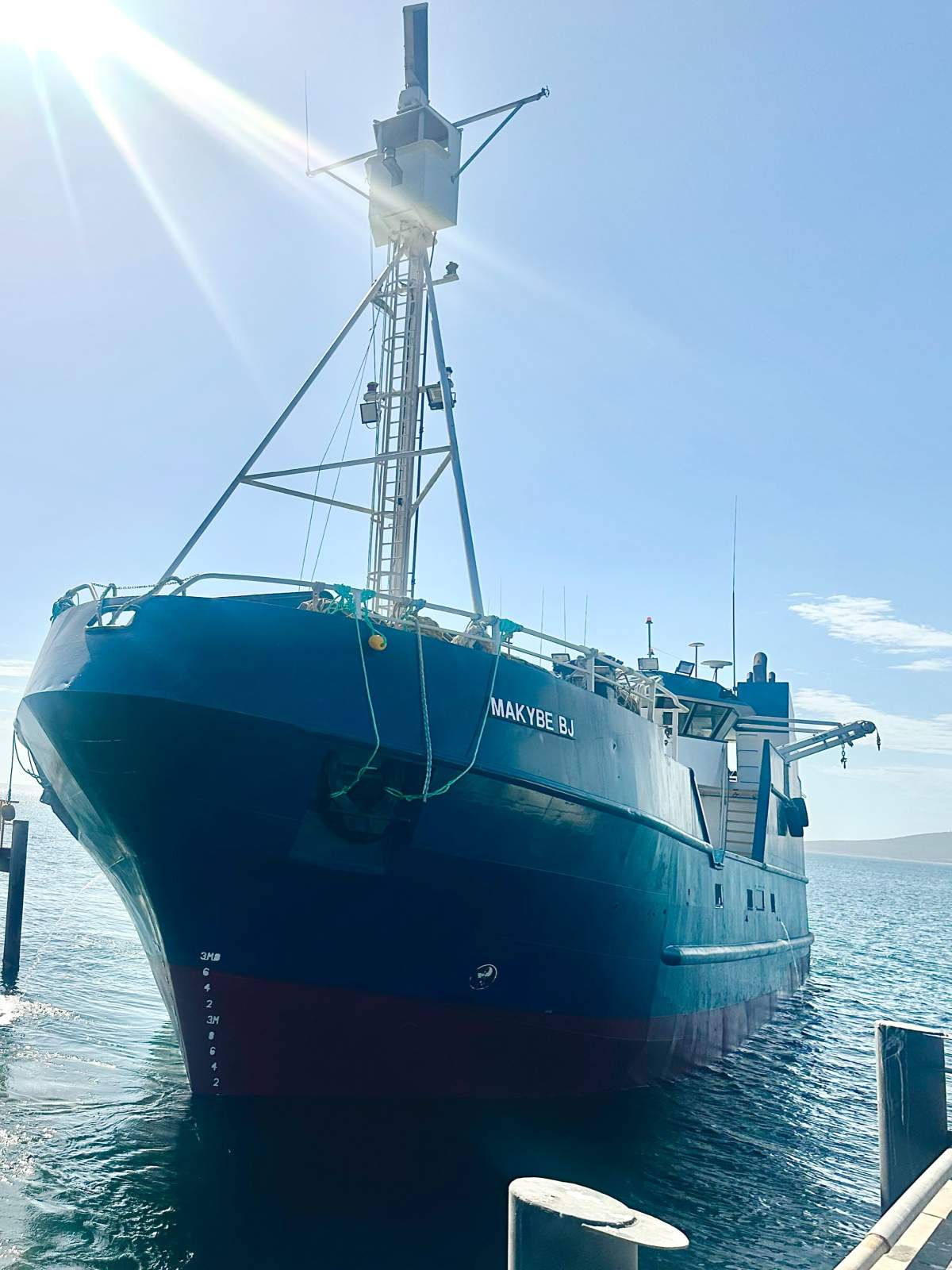

34m Dual Purpose Fishing Vessel
The FV Makybe BJ is a 34m Dual Purpose Fishing Vessel with an operating history in the Australian Southern Bluefin Tuna, Skipjack Tuna and Small-Pelagic Fisheries. The vessel has just completed an AMSA 10 yearly survey as part of her January 2026 slipping. Recent upgrades for the Vessel includes:
New shaft, stern seals and bearings
Fully serviced rudder with new pintle and upper bearings
Hull Thickness Test completed (available upon request)
Fuel Tanks Inspected
Fresh anti-foul and spot blast and paint above the waterline
Brine tanks painted and in excellent condition'
New Exhaust fans for engine room
New Masson Gearbox (installed in February 2024)
The vessels machinery, refrigeration and fishing equipment is high-calibre and fit for purpose. Driven by a 1000 HP Cummins KTA 50 and fitted with a Triplex Net Handling and Hauling System, the fishing system is well-proven and efficient. The vessels electronics system compliments the package. The crew accommodation and facilities support extended voyages in offshore conditions.
The recent hull thickness report and stability book are available upon request. Please call Christian Pyke on with all enquiries.
New shaft, stern seals and bearings
Fully serviced rudder with new pintle and upper bearings
Hull Thickness Test completed (available upon request)
Fuel Tanks Inspected
Fresh anti-foul and spot blast and paint above the waterline
Brine tanks painted and in excellent condition'
New Exhaust fans for engine room
New Masson Gearbox (installed in February 2024)
The vessels machinery, refrigeration and fishing equipment is high-calibre and fit for purpose. Driven by a 1000 HP Cummins KTA 50 and fitted with a Triplex Net Handling and Hauling System, the fishing system is well-proven and efficient. The vessels electronics system compliments the package. The crew accommodation and facilities support extended voyages in offshore conditions.
The recent hull thickness report and stability book are available upon request. Please call Christian Pyke on with all enquiries.
Region
South Australia
Location
Port Lincoln SA
Reference
FV79
Usage
In-shore Fishing, Off-shore Fishing, Commercial
Launch Year
2000
Hull
Steel
Builder
Pambula Broadwater, NSW
Length
111' 7" - 34.00m
Beam
8.52m Beam
Draft
5.0m Draft
Engine Make
Cummins
Engine
KTA50 (Engine fitted with oil centrifuge cleaning unit, heat exchanged and has hydraulic pump mounted fwd to operate stern thruster)
Horsepower
1004 HP @ 1600 RPM
Propulsion
Single Screw
Thrusters
Bow & Stern Thrusters
Genset
Aux. 1 - Cummins NTA855T (430 HP) with 300 KVA Mecc Alte Genset / Aux. 2 - Cummins QSM11 (470 HP) with 300 KVA Mecc Alte Genset (Genset installed new in 2020)/ Aux. 3 - Perkins 4cyl 3056 (160 HP) with
Fuel
11 x Tanks
Accommodation
Crew Quarters - 1 x 4 Berth Cabin / 1 x 3 Berth Cabin / 1 x 2 Berth Cabin / 1 x Single Berth Cabin. Wheelhouse Accommodation - 1 x 2 berth cabin with toilet and ensuite / Galley and Mess area fitted with large walk-in fridge / freezer and large galley table to accommodate the crew / washing and drying facilities / crew toilet and shower with additional shower in crew quarters
Electrics
Radar 1: Furuno RCU014
Radar 2: Furuno FET Daylight 48m
Sonar: Furuno CH-5040
Sounders: Furuno FCV 1100L
Radios: Multiple HF / VHF / Private
Satellite Phone: Thrane & Thrane
Plotter 1: C-Plot
Plotter 2: Time-Zero
GPS: Furuno GP32
Satellite Compass: Furuno GP39
Magnetic Compass: Saura TI150
Autopilot: Simrad AP35
VMS: Yes - Operational
Radar 2: Furuno FET Daylight 48m
Sonar: Furuno CH-5040
Sounders: Furuno FCV 1100L
Radios: Multiple HF / VHF / Private
Satellite Phone: Thrane & Thrane
Plotter 1: C-Plot
Plotter 2: Time-Zero
GPS: Furuno GP32
Satellite Compass: Furuno GP39
Magnetic Compass: Saura TI150
Autopilot: Simrad AP35
VMS: Yes - Operational
Remarks
Gearbox: Masson - MMW 7200 (installed new in Feb 2024)
Reduction Gear: 4.926 : 1
Unloading Crane/Boom: Palfinger - PK32080D (6.42 Tonne @ 4.4m)
Purse Seine: Vessel is a fully operational purse seine vessel with Triplex Net Hauling / Handling System, Twin waterfall winches, multiple deck service winches, high-capacity fish pumps (load / unload) and Palfinger Deck Crane
Pelagic Tuna Longline: Vessel is currently configured for tuna longline fishing - fully operational with longline reel, hook boxes and bubbles
Factory / Processing Plant:
RSW Plant: Stability Book with brine tank dimensions available on request.
Freezer Plant: 1 x Brine Tank currently operating as -18 degree holding room
Fish Hold: Total hold capacity of 192 Tonnes (Stability Book with brine tank dimensions available on request)
Cooling System: Twin 6 cyl Carrier Compressors running RSW through Copper Nickel Chillers for Brine Tanks / Single Bitzer Compressor running the -18 Degree Freezer Holding room
Accommodation: Crew Quarters - 1 x 4 Berth Cabin / 1 x 3 Berth Cabin / 1 x 2 Berth Cabin / 1 x Single Berth Cabin. Wheelhouse Accommodation - 1 x 2 berth cabin with toilet and ensuite / Galley and Mess area fitted with large walk-in fridge / freezer and large galley table to accommodate the crew / washing and drying facilities / crew toilet and shower with additional shower in crew quarters
Various:
Auxiliary Engines 1 & 2 can be load shared for power or refrigeration purposes
Auxiliary Engine 3 operates on seperate fuel supply as standby / emergency power-source
Anchoring system run off twin heavy-duty winches driven off fwd hydraulic unit / twin dreadnaught anchors in good condition
Items of note in galley / accomodation areas:
Beko 6 Burner electric stove / oven
Westinghouse range hood
Panasonic Inverter Microwave
Teac and TCL Flat Screen TV's
Samsung DVD Player
Fujitsu Split System A/C Unit
2 x Westinghouse bar fridges
Reduction Gear: 4.926 : 1
Unloading Crane/Boom: Palfinger - PK32080D (6.42 Tonne @ 4.4m)
Purse Seine: Vessel is a fully operational purse seine vessel with Triplex Net Hauling / Handling System, Twin waterfall winches, multiple deck service winches, high-capacity fish pumps (load / unload) and Palfinger Deck Crane
Pelagic Tuna Longline: Vessel is currently configured for tuna longline fishing - fully operational with longline reel, hook boxes and bubbles
Factory / Processing Plant:
RSW Plant: Stability Book with brine tank dimensions available on request.
Freezer Plant: 1 x Brine Tank currently operating as -18 degree holding room
Fish Hold: Total hold capacity of 192 Tonnes (Stability Book with brine tank dimensions available on request)
Cooling System: Twin 6 cyl Carrier Compressors running RSW through Copper Nickel Chillers for Brine Tanks / Single Bitzer Compressor running the -18 Degree Freezer Holding room
Accommodation: Crew Quarters - 1 x 4 Berth Cabin / 1 x 3 Berth Cabin / 1 x 2 Berth Cabin / 1 x Single Berth Cabin. Wheelhouse Accommodation - 1 x 2 berth cabin with toilet and ensuite / Galley and Mess area fitted with large walk-in fridge / freezer and large galley table to accommodate the crew / washing and drying facilities / crew toilet and shower with additional shower in crew quarters
Various:
Auxiliary Engines 1 & 2 can be load shared for power or refrigeration purposes
Auxiliary Engine 3 operates on seperate fuel supply as standby / emergency power-source
Anchoring system run off twin heavy-duty winches driven off fwd hydraulic unit / twin dreadnaught anchors in good condition
Items of note in galley / accomodation areas:
Beko 6 Burner electric stove / oven
Westinghouse range hood
Panasonic Inverter Microwave
Teac and TCL Flat Screen TV's
Samsung DVD Player
Fujitsu Split System A/C Unit
2 x Westinghouse bar fridges
