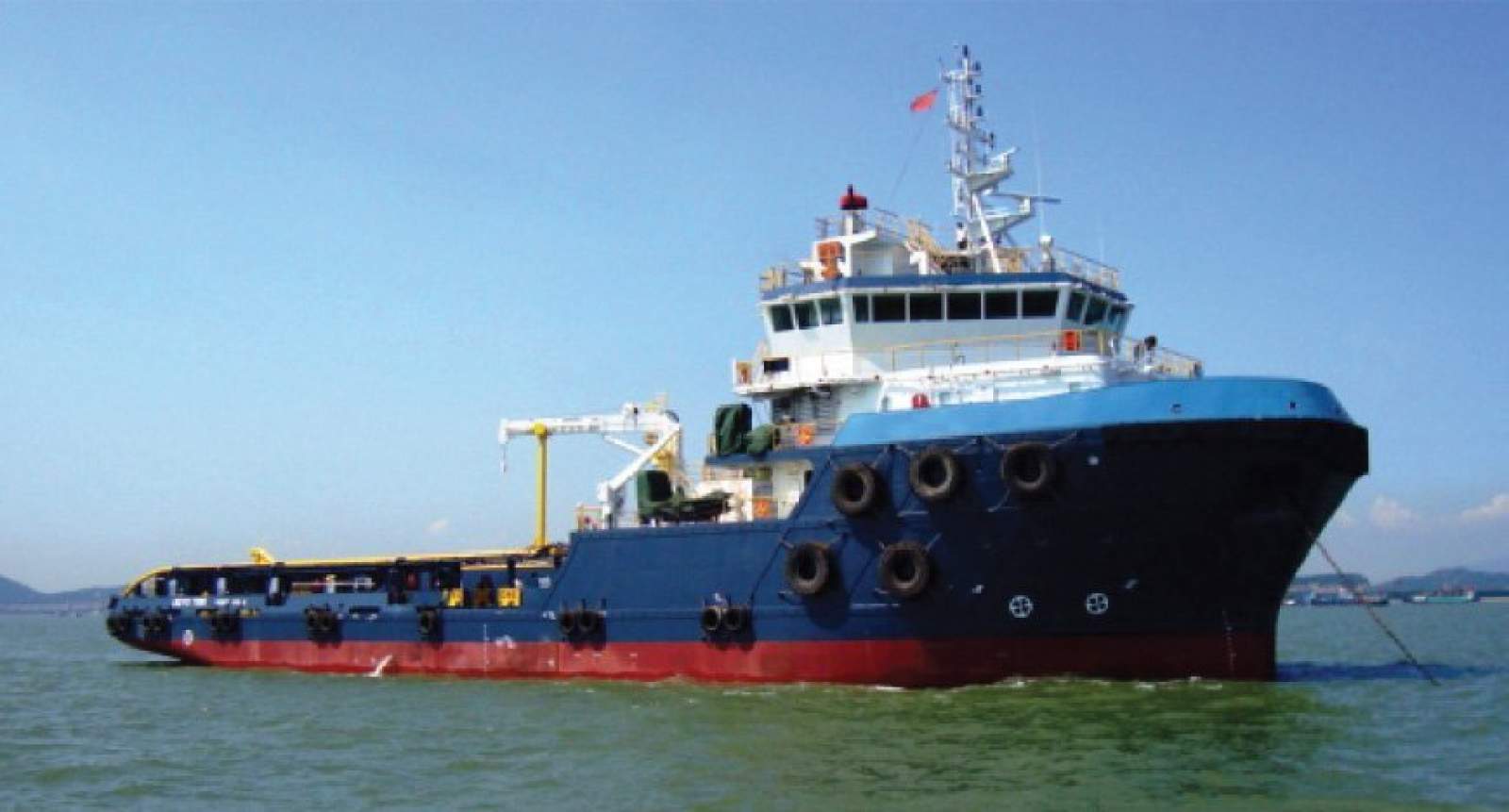

8000 hp DP2 AHTS

8000 hp DP2 AHTS
(Ref No fb843)

Anchor Handling Towing Supply
LOA: 69.99m
Beam: 16.6m
Draft: 6.3m
Displacement : 4820 mt
DWT: 2570 mt
NT: 781
GT: 2605
Bollard pull : 110 mt

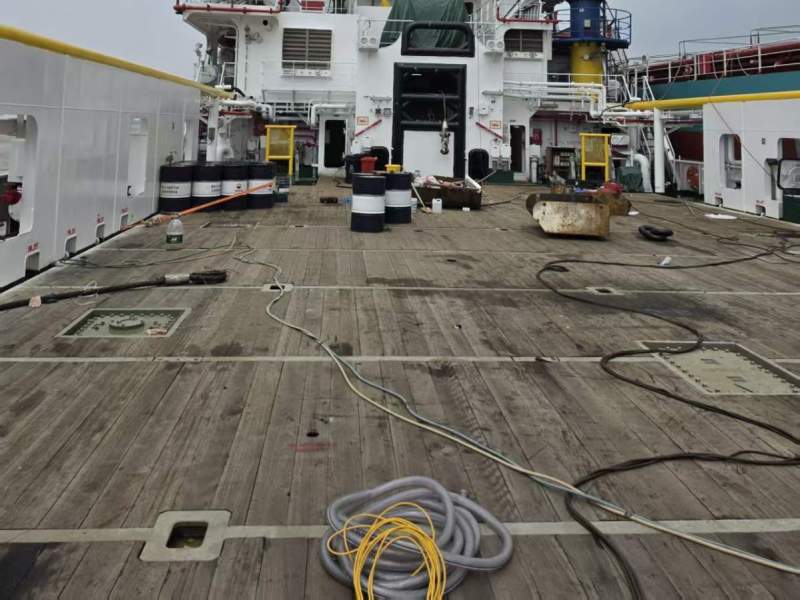

Deck Space : 37m x 13m
Deck Strength (fwd) : 5 tm2 / (aft) : 10 tm2
Class Notations : ABS + A1 (E). OSV. AH. Towing Vessel, FFV-1,+AMS, + DPS-2, UWILD
Built: 2012
Builder: Yuexin Shipbuilding, China

Machinery
2 x GE 16V 228 (Total hp) 8200
Kort Nozzles - 2
Gearboxes - 2 x Twin Disc 6.54:1
Speed : Max - 14 kts; Cruising - 10 kts; Economical - 8 kts
Range - 7930 nm
Gen sets - 2 x Cat18 / 420kw ; 2 x Main Eng / 1200 kw ; Emergency - 1 x Volvo D7A-T / 99 kw
Thrusters - (2 x bow Kawaski KT-55/ 430 kf el. Motor & 1 x stern Kawaski KT-55)
Tow/Anchor Handling
Winch - Oil States Waterfall (Model 84, line pull 280 mt, tow/AH wire - 1500m / 1500 m of 64mm)
Permanent reels - 2 x 1500 m of 64mm
Shark Jaw - 200 t SWL
Tow pins - 1 set-200 T SWL
Chain lockers - (2) 1530 m of 76mm chain
Chain handler
Stern Roller - 20FT x 6.5FT: 300 mt SWL
Crane - 5 t@ 12.2m
Capstans - 2 x 5 t Electro-hydraulic

Nav/Comms
Radar (2)
Depth Sounder
Gyro Compass (3)
Wind Speed Indicators (3)
Doppler Log
Radios - 2 x VHF; 1 x SSB
Sat Com - IRDIUM & Sat C

Accommodation - 40 (15 cabins)
Hospital - yes

Special Equipment
Fire Fighting - FiFi - 1
Dynamic Positioning - DP-2
Ref Systems - 2 x MRU ; 2 x DGPS ; 1 x Microwave-based
Water maker - 1 x 12 t/day
Mud Circulation System/mud mixers - yes
Rescue zone
Rescue Boat - 6-man SOLAS Approved
Gas Detection
Reefer Sockets - 2 x 440v; 2 x 240v
Misc - MSD 40 persons/day

Location: Delivery from Guangdong, China

Price: USD $15.7m
