German Frers

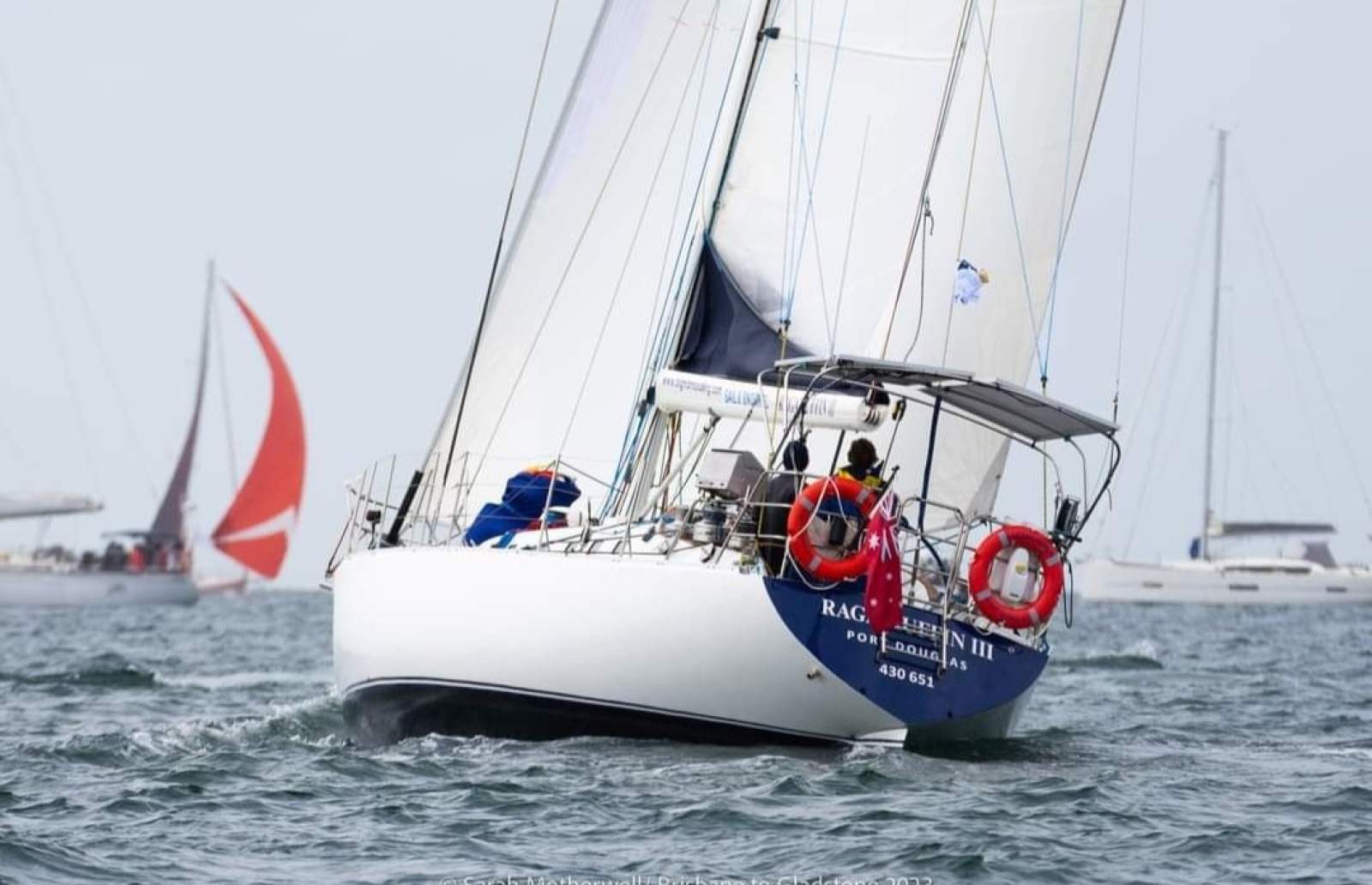

Ragamuffin 111 is a historical vessel, with a colourful racing involvment including Sydney to Hobart. Ragamuffin 111 has competed in a variety of QLD yacht regattas including Brisbane to Gladstone Yacht Race, and achieved great results in the 2 handed division. A vessel that is easily sailed solo, comfortable and a solid ocean going vessel. Jump on board and go cruising, live on board or she is ready to work as a commercial vessel.

Vessel Particulars:
Length : 14.25 m
Beam : 4.05 m
Draft : 2.45 m
Displacement : 11.3 tonnes
Registration : Domestic Commercial Vessel, 430651
Australian Register of ships, official # 374705
Certificate of Survey : 1D & 2C 16 persons
Design : Sailing Sloop, German Frers
Builder : Unknown, Rozelle, New South Wales.
Completed : 1976
Construction:
Hull Material : 6 mm Aluminium plate, 8mm keel plate
Bulkheads : 3x watertight
Deck : 4 mm Aluminium plate
Superstructure : 4 mm Aluminium plate
Windows : Portlights
Handrails : Stainless steel tube pushpit and pulpit rails, stainless steel
Stanchions.
3x Stainless Steel wire rope guardrails.
Tanks:
Fuel : 1x aluminium integral
Capacity : 350 litres total
Water : 4x aluminium integral
Capacity : 475 litres total
Holding Tank : 1x Turtle Pac bladder
Capacity : 150 litres
Pumping Arrangements:
Bilge : 1x bilge manifold with engine driven Jabsco pump.
1x 12 volt submersible
1x manual
Alarms : Engine room high level alarm
Fresh Water : 1x 12v pressure pump
Machinery:
Main Engine : 1x Yamaha ME200F, 30.9 kW @ 3100 rpm
Serial # NO6 00014
Hours : 10 approximately since installed in 2012
Shaft drive : 1x Hydraulic motor in keel with pump on engine.
Controls : Morse Cable
Exhaust System : Wet
Cooling System : Heat exchanger
Engine Alarms : Audible
Propeller Shaft : 1x 316 stainless steel, 38 mm diameter
Propeller : 1x 2 fixed blade propeller, diameter 618 mm
Hot water : 1x marine heat exchange system
Hydraulics : Engine driven pump system
Electrical Supply:
Circuit Voltage : 12 volt
Alternators : 1x 12v, 60 amp belt drive from main engine.
Batteries Starting : 1x 12v, 100 amp hour
House : 1x 12v, 400 amp hour in 1x 12v bank
Battery Charger : 1x Centuar 12v/30 Amp smart charger
Solar Panels : 2x 270 watt with regulator
Shore Power : 240 V shore power
Invertor : 1x Powertech 1000 watt
Steering Equipment:
Primary : Wheel, chain, system
Secondary : Emergency tiller
Rudder : Balanced rudder on skeg
Ground Tackle:
Winch : 1x 12v Maxwell, vertical capstan
Primary : 1x 35 kg Plough with 82metres/ 10mm gal chain
Stowed on bow roller
Secondary : 1x 32.5 kg Plough with 82 m of 10mm chain &
16mm nylon rope
Sails and Equipment:
Mast : 1x Aluminium
Stays : 10mm SS wire rope with SS fittings
Sheet winches : 4x electric/ hydraulic, in cockpit
Sails : 1x main sail, stowed on boom with cover and lazy jacks
1x Foresail on furler
Awnings : Nil
Accommodation:
Arrangement : Double island berth in forward cabin, with bathroom
starboard aft and single berth to port
Saloon midships with navigation station to starboard aft and
Galley to port.
Quarter berths aft port and starboard
Furnishings : Timber panelling with timber trim.
Covered foam mattresses and settee cushions.
Toilet : 2x 12v marine toilet, in 2x bathrooms
Galley : Located to port midships
Marine Air conditioner
Fire Equipment:
Engine Room : Fixed DCP extinguisher operated from outside space
Fire Hydrant : 1x from engine Jabsco pump and fire hose.
Extinguishers : to 1D & 2C survey requirements - 6 monthly inspections
Other : 1x fire blanket
2x fire buckets
Lifesaving Equipment:
Liferaft : 2 x 8 man NSCV coastal- rented
Lifejackets : 16 x Adult Coastal
Hand Flares : 3x parachute rockets
2x red hand flares
1x orange smoke
Lifebuoy : 2x Solas, 1 with light, 1 with buoyant line
EPIRB : Float free 406MHz in cockpit & Epirb inside
Other : First aid kit
Equipment:
Nav Lights : In accordance with collision regulations
Compass : 1x Plastimo Olympic 135, magnetic
Charts : Electronic and some paper charts
Publications : Engine and equipment manuals
Instruments : Warning alarms
Radios : 1x VHF
Sounder : 1x Raymarine depth
Plotter/GPS : 1x Garmin multi display
Radar : Nil
Auto pilot : Yes-
AIS
Other : 1x Raymarine wind indicator
Notes: Slipped yearly
Great Barrrier Reef Marine Park Permit
Certificate of Survey
