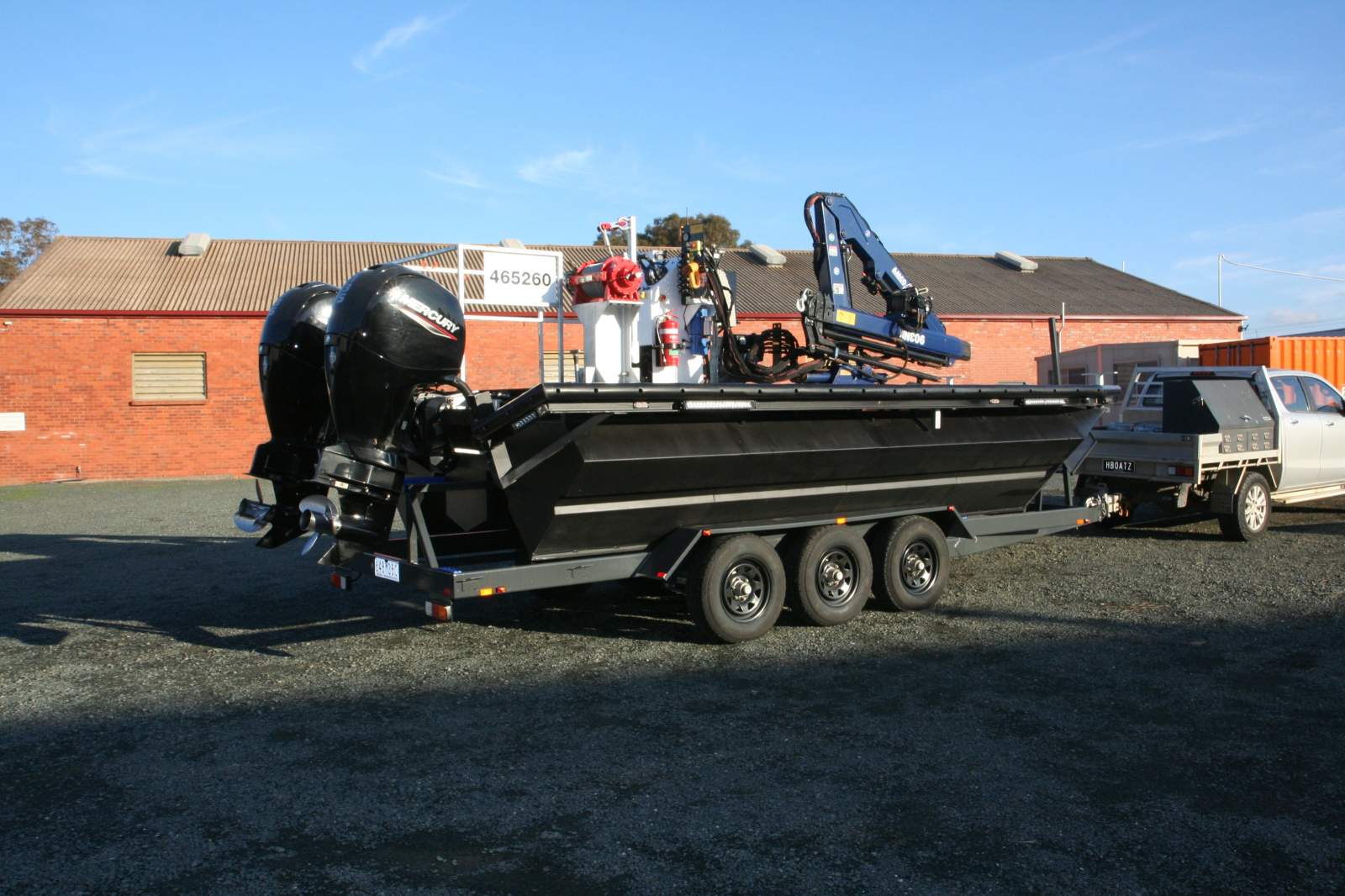

Transformer Marine Trailerable Fast Workboat with Crane and Winch

Manufactured by Transformer Marine

AMSA survey DCV Exemption 02; 2d/2e certified 6m twin engine fast work barge; 900kg deck weight; Collision avoidance certified to 27 knots (max power capacity assesment - documentation provided); 2 x 135 Mercury outboard engines on 316 stainless steel transom ; Mercury vessel view display and binnacle hand controls; 4mm 5083 Aluminium tri-pontoons fully baffled and pressure tested; Pontoons painted with Dulux Durebild STE 2 pack epoxy paint; Full engineered (FEA Finite Element Analysis) deck frame for crane mounting points and winch mount (calculations, computations and certification provided); Structural UB and PFC deck frame mild steel, galvanised and painted with Dulux Durebild STE 2 pack epoxy paint; 5mm 5083 marine grade aluminum deck painted with non slip coating and Dulux Durebild STE 2 pack epoxy paint; 300 litre fuel tank with breather and fuel guage; Amco Veba 903NFM 3 stage Marine Crane with winch (500kg rated) and remote control, Load limiting device for crane winch operations; Crane certified till 2033, Crane certified to lift 380k abeam and at max crane capacity over the bow; Warrior JP10 (10 tonne) hydraulic winch with remote control; mesh safety (galvanised) barrier for winch operations; 6 tonne pulley for winch operations; tow pole; 4 x tie off bollards (galvanised); 4 x drop in bumpers (galvanised); rubber fender front and sides; light bars all round, navigation lights; hydraulic power pack (honda petrol engine) with hydraulic tank for crane and winch operations, first aid kit, life jackets, 2 x life buoys with rope, fire extinguisher, storage box, lifting chains & slings, 3 x hard hats, triaxle 4.5 tonne trailer with disc brakes, electric braking, towing breakaway, fully painted with automotive paint, tie down points for barge, oversize sign and oversize flags for trailer transportation of barge, crane scales, full example documentation with AMSA Safety Management System which you can customise to your commercial operation, all mauals laminated and in folders;

PURCHASE YOURSELF A READY TO GO OPERATION! FAST, CAPABLE, MOBILE & CERTIFIED.
CONTACT US IF YOU REQUIRE A CUSTOM BUILD.
