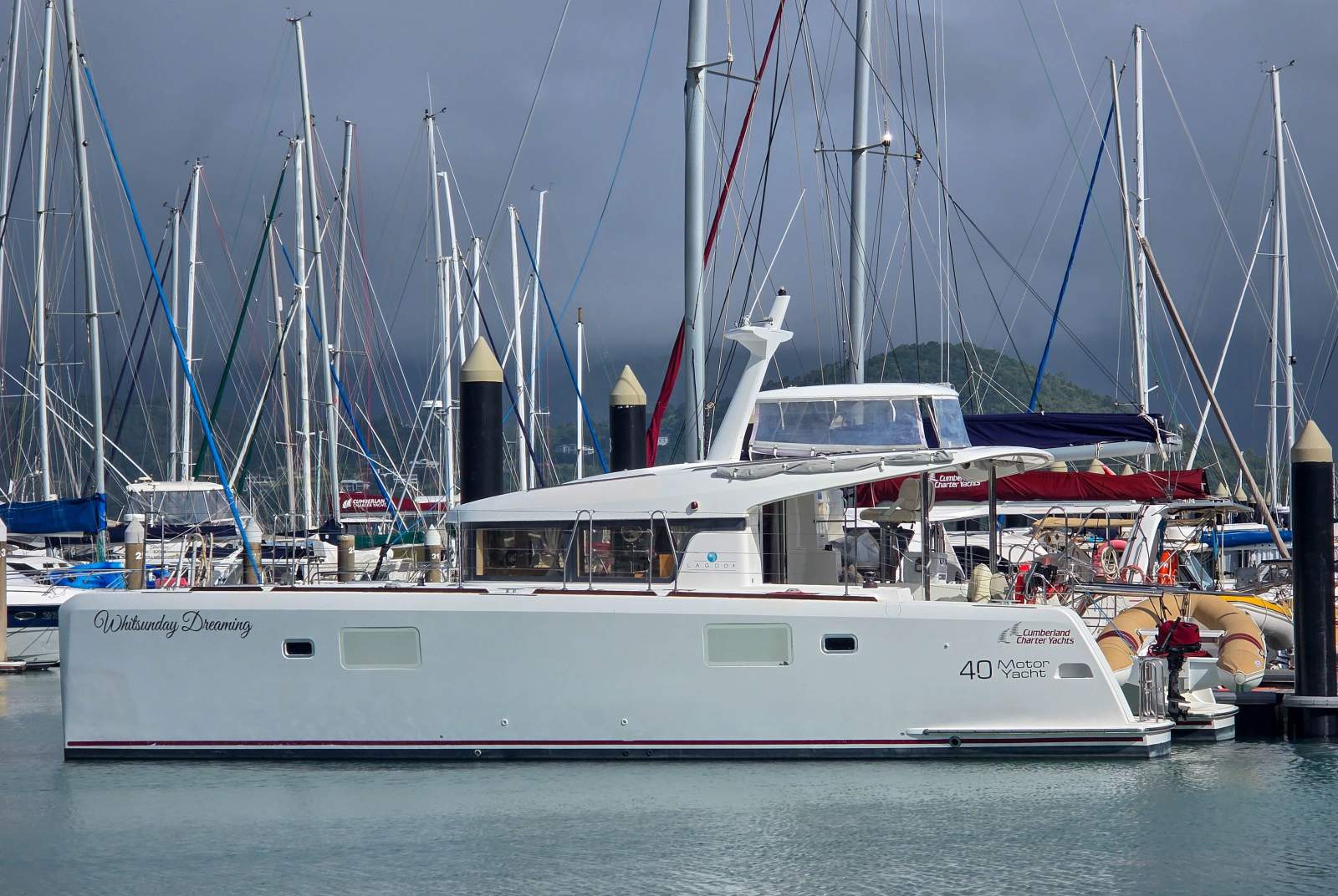

Lagoon 40 MY
This commercially registered 2015 Lagoon 40 MY power catamaran delivers comfort luxury and performance across the platform which explains the model's continuing popularity. Inside you will find four double cabins, all with ensuites, and all cabins deliver excellent natural light and lots of storage. The fully equipped galley features gas cooking, ample refrigeration and excellent meal prep areas, which adjoins the comfortable saloon. The sliding external door and servery window ensures easy flow to the large fully covered rear cockpit.
The model is known for its wide side-decks which provide safe transit to and from the large foredeck, while the boarding platforms ensure easy loading and unloading.
2 x 80hp Yanmar inboards deliver economical motoring. Engine servicing and hull antifoul was completed in Jan/Feb 2026. A Simrad navigational system with autopilot is installed, as well as a commercial tender / outboard package. The vessel comes with a Certificate of Survey in 4D for 10 passengers.
The vessel is currently part of the Cumberland Charter Yacht fleet and delivering excellent forward booking which will benefit the new owner form the date of settlement. Based at Coral Sea Marina located in the Whitsundays, Airlie Beach, call for more information or for an inspection. Price is plus GST.
Region
Queensland
Location
Mackay/Whitsundays Area Airlie Beach - Whitsunday QLD
Reference
021
Usage
Family, Cruising, Charter
Launch Year
2015
Hull
Fibreglass/GRP
HIN
FR-CNB4P014C515.
Rego
454794
Designer
Naval architects: Van Peteghem / Lauriot Prévost (VPLP Design).
Builder
Lagoon Catamaran (France).
Length
39' 4" - 11.99m
Beam
6.79 metres.
Draft
0.91 metres.
Displacement
Approximately 14,500kgs.
Deck Material
Fbireglass.
Engine Make
Yanmar
Engine
No: of engines: Two.
Engine make / model: Yanmar 4JH80.
Engine numbers: Port = E50258., Starboard = E50257.
Engine build year: Built February 2014.
Engine service info: Last serviced 14/05/2026.
Engine horsepower: 2 x 80hp.
Diesel / Petrol: Diesel.
Cruise / Max speeds: Approximately 8-10 knot cruise and 12 knot max.
Fuel consumption: Approximately 10-12 litres per hour at cruise combined.
Fuel capacity: 800 litres of fuel.
Other: 2 x Yanmar engine displays.
Other: Single cable throttle quadrant.
Number Engines
2
Horsepower
2 x 80hp.
Fuel Type
Diesel.
Engine Hours
Port = E50258.
2nd Engine Hrs
Starboard = E50257.
Fuel Consumption
Approximately 10-12 litres per hour at cruise combined.
Max Speed
Approximately 8-10 knot cruise and 12 knot max.
Cruise Speed
Approximately 8-10 knot cruise and 12 knot max.
Propulsion
2 x Yanmar Saildrive. 2 x 3 bladed propellors.
Fuel
800 litres of Diesel.
Water
600 litres of water.
Accommodation
Double berths: 4 x double cabins all with ensuites. Layout is 2 x east / west and 2 x north / south.
Total berths: Sleeps eight.
Number of cabins: Four cabins, two in each hull.
Number of ensuites: 4 x ensuites.
Number of heads: Four electric toilets.
Number of showers: 4 x hot / cold showers.
Other: Fans.
Other: Reading lights.
Total berths: Sleeps eight.
Number of cabins: Four cabins, two in each hull.
Number of ensuites: 4 x ensuites.
Number of heads: Four electric toilets.
Number of showers: 4 x hot / cold showers.
Other: Fans.
Other: Reading lights.
Cabins
Four cabins, two in each hull. 4 x ensuites.
Berths
Sleeps eight.
Galley
Layout: "L" shaped galley with opening servery windows to cockpit.
Stove details: ENO 3 burner gas stove.
Oven: ENO gas oven.
Grill: ENO gas grill.
Sink: 2 x stainless steel sinks.
Hot / Cold water: Hot and cold water throughout.
Water delivery type: Pressure water.
External BBQ: External BBQ in cockpit.
Other: Dometic portable two 12v zone fridge / freezer.
Other: Dometic Cool Ice3 42 Esky.
Saloon Information:
"L" shaped seating around central table.
Soft furnishings.
Chart table off to one side.
Fan.
Excellent lighting and air flow.
Cockpit Information:
Fully covered hardtop.
"U" shaped seating with cushions around dining table.
Side and aft roll up shade cover.
Easy access to internal spaces, side-decks, helm, boarding platforms.
Esky.
BBQ.
Stove details: ENO 3 burner gas stove.
Oven: ENO gas oven.
Grill: ENO gas grill.
Sink: 2 x stainless steel sinks.
Hot / Cold water: Hot and cold water throughout.
Water delivery type: Pressure water.
External BBQ: External BBQ in cockpit.
Other: Dometic portable two 12v zone fridge / freezer.
Other: Dometic Cool Ice3 42 Esky.
Saloon Information:
"L" shaped seating around central table.
Soft furnishings.
Chart table off to one side.
Fan.
Excellent lighting and air flow.
Cockpit Information:
Fully covered hardtop.
"U" shaped seating with cushions around dining table.
Side and aft roll up shade cover.
Easy access to internal spaces, side-decks, helm, boarding platforms.
Esky.
BBQ.
Refrigeration
Vitrifrigo Front loading fridge freezer in galley. 2nd top loading Vitrifrigo fridge in galley.
Freezer
Freezer section in galley fridge.
Stove
ENO 3 burner gas stove, oven and grill.
Hotwater System
240v / heat exchange / storage hot water system.
Shower
4 x hot / cold showers.
Toilet
Four electric toilets.
Entertainment
Flat Screen TV: ECO Tv in saloon.
Radio: Fusion MS-AV750 head-unit.
Speakers: Various speakers.
Radio: Fusion MS-AV750 head-unit.
Speakers: Various speakers.
Dinghy
2023 model 3.5 metre Barefoot 8 person alloy hull tender.
Outboard
Mercury 6hp outboard.
Covers
Various hatch covers.
Ground Tackle
Windlass: Muir 12v Anchor windlass.
Anchors: Main anchor, plus additional spare anchor.
Chain: Approximately 60m chain on main anchor.
Anchors: Main anchor, plus additional spare anchor.
Chain: Approximately 60m chain on main anchor.
Safety Gear
Life jackets: 10 x Life jackets.
Life Ring / Buoys: 2 x life rings.
Life raft: Not applicable.
Raft compliant Y/N: Not applicable.
EPIRB: Single EPIRB. As per commercial registration requirements.
First aid kit: As per commercial registration requirements.
Flares: As per commercial registration requirements.
V-sheet: As per commercial registration requirements.
Bilge manual: Two manual bilge pumps.
Bilge automatic: 2 x 12v bilge pumps on float switches.
Manual firefighting: 3 x handheld fire extinguishers.
Auto firefighting: Not applicable.
Other: 4 x stainless steel wire lifelines.
Other: M. O. B. Light
Life Ring / Buoys: 2 x life rings.
Life raft: Not applicable.
Raft compliant Y/N: Not applicable.
EPIRB: Single EPIRB. As per commercial registration requirements.
First aid kit: As per commercial registration requirements.
Flares: As per commercial registration requirements.
V-sheet: As per commercial registration requirements.
Bilge manual: Two manual bilge pumps.
Bilge automatic: 2 x 12v bilge pumps on float switches.
Manual firefighting: 3 x handheld fire extinguishers.
Auto firefighting: Not applicable.
Other: 4 x stainless steel wire lifelines.
Other: M. O. B. Light
Bilge Pumps
2 x 12v bilge pumps on float switches. Two manual bilge pumps.
Epirb
Single EPIRB. As per commercial registration requirements.
Life Jackets
10 x Life jackets.
Flares
As per commercial registration requirements.
Fire Protection
3 x handheld fire extinguishers.
Electrics
Shore power: Single 240v 15amp shore power connection with power lead.
Solar panels: 4 x roof mounted solar panels.
Battery engine: 2 x crank batteries. TBC
Battery house: 3 x house batteries. TBC
Battery charger: Cristec YPower 12V/40A battery charger.
Inverter: Inverter. TBC.
Lighting: LED lighting.
Underwater lighting: Two underwater lights.
Hot water system: 240v / heat exchange / storage hot water system.
Windscreen wipers: Not applicable.
Other: 2 x aft facing LED spotlights.
Solar panels: 4 x roof mounted solar panels.
Battery engine: 2 x crank batteries. TBC
Battery house: 3 x house batteries. TBC
Battery charger: Cristec YPower 12V/40A battery charger.
Inverter: Inverter. TBC.
Lighting: LED lighting.
Underwater lighting: Two underwater lights.
Hot water system: 240v / heat exchange / storage hot water system.
Windscreen wipers: Not applicable.
Other: 2 x aft facing LED spotlights.
Electronics
GPS / Plotter: Simrad NNS 12" touch screen chart plotter.
Autopilot: Simrad autopilot with single controller.
Depth sounder: Single Simrad multi display. Log and Depth.
Rudder indicator: Displayed as part of autopilot.
Compass: Single Compass.
Marine radios: Simrad RS35 VHF.
AIS: AIS transceiver.
Other: VHF antenna.
Autopilot: Simrad autopilot with single controller.
Depth sounder: Single Simrad multi display. Log and Depth.
Rudder indicator: Displayed as part of autopilot.
Compass: Single Compass.
Marine radios: Simrad RS35 VHF.
AIS: AIS transceiver.
Other: VHF antenna.
Deck Gear
Wide open side-decks provide safe navigation between the aft cockpit and foredeck.
Radar mast fitted on roof.
Transom: Easy access boarding platforms each side.
Davit information: Stainless Davit arms off transom fitted with manual Tender pulley lifting system.
Swim ladder: Stainless and timber swim ladder.
Timber toe-rails.
4 x stainless steel gates.
2 x Forepeak seats.
Foredeck trampoline.
Foredeck ladder for access to coach-roof.
Bow roller.
Single Harken 40 2SP S/T deck winch with one winch handle.
Rod holders.
Mooring lines plus spare rope.
4 x fenders.
Full complement of onboard equipment for charters. (Refer to full inventory document).
Radar mast fitted on roof.
Transom: Easy access boarding platforms each side.
Davit information: Stainless Davit arms off transom fitted with manual Tender pulley lifting system.
Swim ladder: Stainless and timber swim ladder.
Timber toe-rails.
4 x stainless steel gates.
2 x Forepeak seats.
Foredeck trampoline.
Foredeck ladder for access to coach-roof.
Bow roller.
Single Harken 40 2SP S/T deck winch with one winch handle.
Rod holders.
Mooring lines plus spare rope.
4 x fenders.
Full complement of onboard equipment for charters. (Refer to full inventory document).
Remarks
Survey information: Certificate of Survey = 4D for 10 persons. Number: COS-86844-005.
Charter information: Under a current charter agreement with Cumberland Charter Yachts. All forward books from the date of settlement will be to the benefit of the new owner.
Charter information: Under a current charter agreement with Cumberland Charter Yachts. All forward books from the date of settlement will be to the benefit of the new owner.
