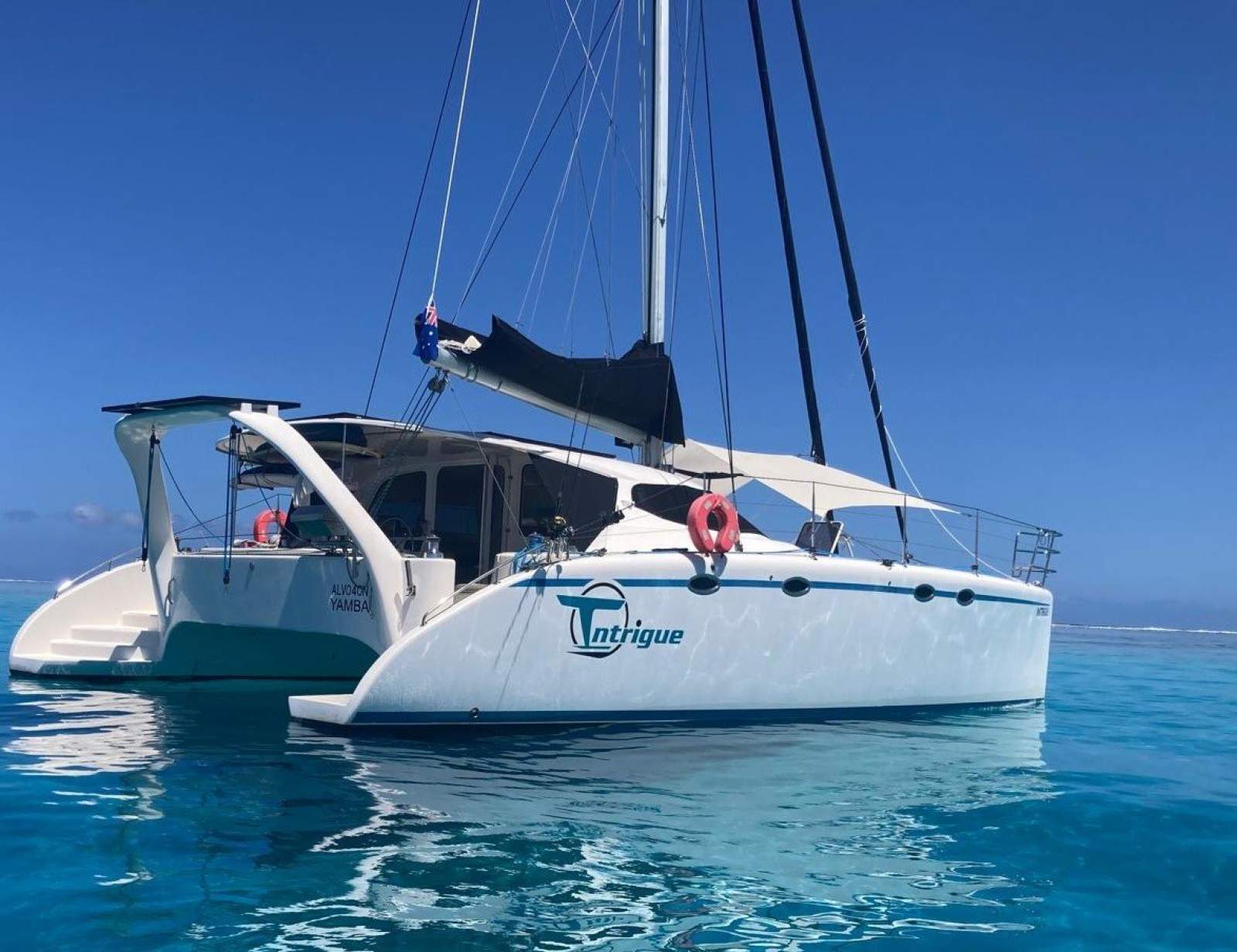

Fusion Catamarans 40
Fusion 40 currently sailing in Fji and available for inspection start of July.
Presents in very good condition with all major upgrades completed in the last 2 years.
Well proven sailing vessel having completed a 2.5 year trip with a family of five from Australia to Lord Howe, New Caledonia and recently spent the last year cruising Fiji. Excellent well known saililng perfomance and very spacious comfortable vessel for its size.
We are the third owner and the boat has been lightly used and well cared for throughout its life.
Finished internally to a high standard providing for comfortable off grid living.
Australian registered.
Presents in very good condition with all major upgrades completed in the last 2 years.
Well proven sailing vessel having completed a 2.5 year trip with a family of five from Australia to Lord Howe, New Caledonia and recently spent the last year cruising Fiji. Excellent well known saililng perfomance and very spacious comfortable vessel for its size.
We are the third owner and the boat has been lightly used and well cared for throughout its life.
Finished internally to a high standard providing for comfortable off grid living.
Australian registered.
Region
Fiji
Location
Fiji
Usage
Cruising
Launch Year
2007
Hull
Fibreglass/GRP
HIN
AU-WWA211101KD3
Rego
ALV040N
Rego Expiry
30/04/2027
Designer
Gary Lidgard
Builder
Fusion Catamarans Airlie Beach
Length
40' 0" - 12.20m
Beam
7.2m
Draft
1.2m and 800mm bridgedeck clearance
Displacement
7 ton cruise mode
Keel / Ballast
Mini keels
Deck Material
Composite G/F
Engine Make
Yanmar
Engine
3YM30
New engine mounts Feb 2025
Number Engines
2
Horsepower
30
Power Source
Diesel
Engine Hours
1968
2nd Engine Hrs
1906
Fuel Consumption
2.2 litres per hour at 2400 rpm
Max Speed
8.5 knots motoring
Cruise Speed
6.5 knots motoring and 6 to 12 plus knots under sail
Drive Type
Inboard Sail Drive : SD20 sail drives with Gori 16.5" folding props
Genset
Honda EU20i
Fuel
380 litres in 2 tanks / 20L diesel jerry cans x 4
Water
400 L in 2 tanks
Accommodation
X 2 queen cabins
x 1 double cabin
x 1 single cabin
x 1 large bathroom
x 1 double cabin
x 1 single cabin
x 1 large bathroom
Cabins
4
Berths
Sleeps 7 in cabins
Galley
Galley up in saloon with double bowl stainless steel sink
Cookout stainless steel gas BBQ mounted rear cockpit
2 x 9 kg gas bottles
Cookout stainless steel gas BBQ mounted rear cockpit
2 x 9 kg gas bottles
Refrigeration
Vitrifigo 130 L upright fridge
Freezer
Vitrifigo 130 L upright freezer
Stove
Smev gas oven & grill with 4 burner cooktop
Water Maker
Schenker Modular 30 Electron 12 volt - new membranes May 2024
Hotwater System
Bosch W125 gas hot water system
Shower
Large internal shower and transom shower on port side
Toilet
TMC electric toilet and macerator (new macerator May 2026) and holding tank
Entertainment
Blaupunkt smart TV with Netflix apps and DVD player new 2026
Fusion Stereo RA210 and x 4 fusion 6.5" speakers cockpit and saloon new 2024
Fusion Stereo RA210 and x 4 fusion 6.5" speakers cockpit and saloon new 2024
Air Conditioning
No. Sirroco 12v fans to all cabins
Dinghy
Polycraft 3.0m
Outboard
Yamaha 2 stroke 15 hp 2007 / x 2 20L yamaha fuel tanks, jerry cans 3 x 20L
Covers
Saloon glass windows replaced May 2024 with 10mm automotive toughened glass
Black sun shade covers to saloon windows
Rear and side shade covers to cockpit area
Ocean South hatch covers x 5
Lewmar roller mosquito screens and blockout blinds to all main deck hatches
Shade sail for front trampoline area
Black sun shade covers to saloon windows
Rear and side shade covers to cockpit area
Ocean South hatch covers x 5
Lewmar roller mosquito screens and blockout blinds to all main deck hatches
Shade sail for front trampoline area
Ground Tackle
Rocna 45lb anchor with 80m of chain new May 2024
Spare anchor Manson Plough with 50m chain and 50m nylon rope
Spare 16mm nylon rope 100m
Maxwell 1200 anchor windlass with deck and helm controls (new windlass motor 2025)
Spare anchor Manson Plough with 50m chain and 50m nylon rope
Spare 16mm nylon rope 100m
Maxwell 1200 anchor windlass with deck and helm controls (new windlass motor 2025)
Safety Gear
Lifejackets x 8
Bosuns chair
Safety buoy rings x 2
Sea anchor
Bosuns chair
Safety buoy rings x 2
Sea anchor
Bilge Pumps
4
Life Raft
Viking Pro 6P new Jan 2025 next service due Jan 2028
Epirb
Yes
Life Jackets
8
Flares
Yes day and night
Fire Protection
Fire extinguishers x 3 and fire blanket
Electrics
New June 2024
Sunpower Maxeon solar panels 3 x 400W = 1.2kW with Victron MPPT smart 100/30
Full river DC 210 AGM batteries x 3 = 630 amps
Enerdrive 40 amp battery charger
Separate crank battery
Sunpower Maxeon solar panels 3 x 400W = 1.2kW with Victron MPPT smart 100/30
Full river DC 210 AGM batteries x 3 = 630 amps
Enerdrive 40 amp battery charger
Separate crank battery
Electronics
New Raymarine electronics package upgrade May 2024 as below:
Axiom 12" chartplotter
RS150 GPS antenna
EV200 autopilot with P70s control head
i60 wind instrument
i50 depth instrument
AIS700 Class B transceiver
Ray63 VHF radio with GPS
New NMEA 2000 backbone network kit
Starlink Mini
Uniden hand held VHF
Barometer
Steering compass mounted at helm
Axiom 12" chartplotter
RS150 GPS antenna
EV200 autopilot with P70s control head
i60 wind instrument
i50 depth instrument
AIS700 Class B transceiver
Ray63 VHF radio with GPS
New NMEA 2000 backbone network kit
Starlink Mini
Uniden hand held VHF
Barometer
Steering compass mounted at helm
Sail Inventory
Fully batten cross cut dacron main with x 3 reefing points new Feb 2025. Boom bag and lazy jacks in VGC
Battened head sail on self tacker in cross cut dacron new Feb 2025 on profurl furler and UV strip
Screecher approx age 2020 on continuous furler and UV strip
Battened head sail on self tacker in cross cut dacron new Feb 2025 on profurl furler and UV strip
Screecher approx age 2020 on continuous furler and UV strip
Mast / Rigging
New Jan 2025 as below by David Lambourne Rigging:
Standing rigging replaced
Gooseneck service
Reefing lines replaced
Running rigging all very good condition majority replaced 2023
Standing rigging replaced
Gooseneck service
Reefing lines replaced
Running rigging all very good condition majority replaced 2023
Remarks
Receipts available for all major upgrades and work.
Assorted tools and spares on board to be negotiated with sale.
Main spares include:
- SD 20 sail drive diaphragms
- Maxwell anchor windlass motor and brushes
- Linear drive Type 1 autopilot motor
- Steering wheel main chain and spare SS cable and fittings
- Fresh water pump
- Spare carby for outboard
- Oil & fuel filters
- O Ring kit for water maker
Assorted tools and spares on board to be negotiated with sale.
Main spares include:
- SD 20 sail drive diaphragms
- Maxwell anchor windlass motor and brushes
- Linear drive Type 1 autopilot motor
- Steering wheel main chain and spare SS cable and fittings
- Fresh water pump
- Spare carby for outboard
- Oil & fuel filters
- O Ring kit for water maker
