J Boats J/122 'Javelin' Racing Yacht
J/122 'Javelin' Racing Yacht
27-JAN-25 PRICE REDUCED FROM 285k TO 270k

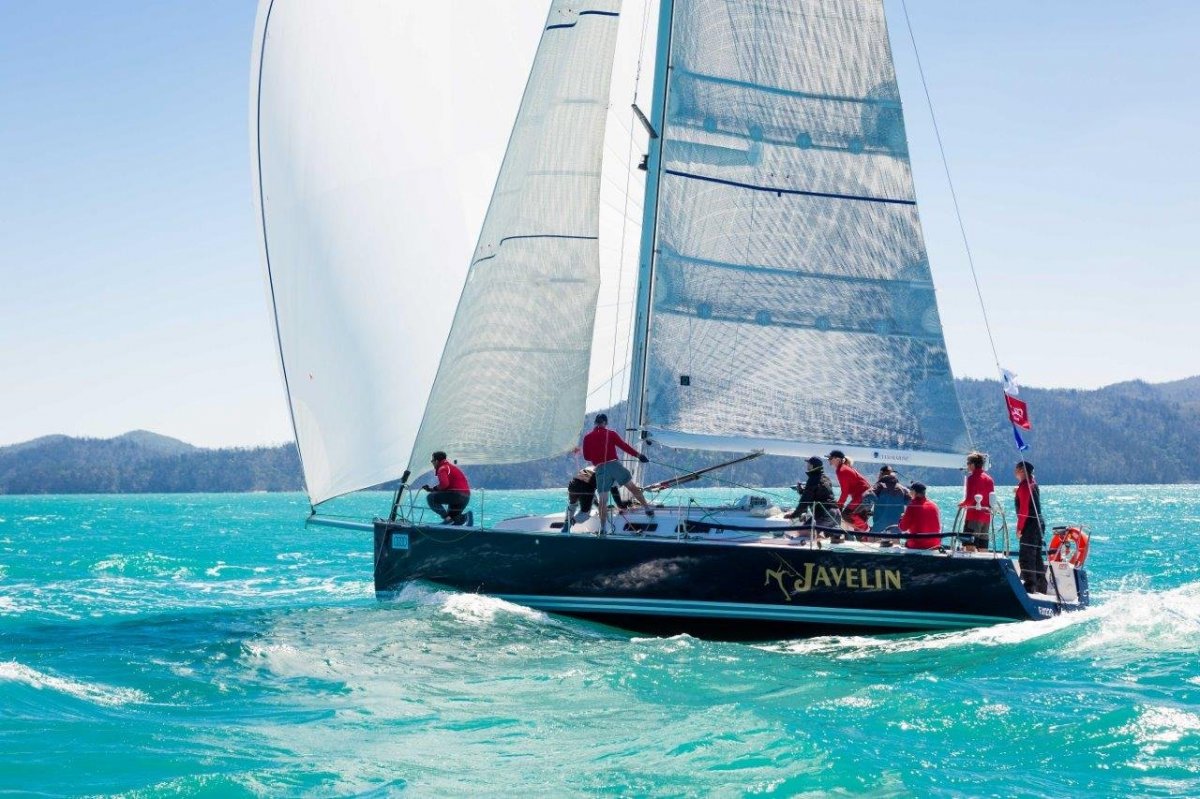

Javelin is a versatile 40 foot performance sailboat with comfortable live-aboard accommodations, a refined deck
layout, low VCG keel with a moderate 2.2m draft. The hull & deck are built using superior infusion moulding
technology to maximize durability and long term value.
An IRC-friendly cruiser/racer, J/122 offers a completely furnished interior, a simple to manage balanced sail plan,
head turning sailing performance and great looks-- perhaps the ultimate 40' day sailing, weekending, racing and
cruising sailboat.
Javelin was built in 2008 and has had just 3 owners.
Current IRC Rating 1.075
Current AMS Rating 0.923
ORCi Rating 1.0709
HULL AND DECK
o The hull and deck are laminated with high quality materials: Sandwich construction using Uni and multidirectional fibreglass, low density balsa core, vinylester resin and the "SCRIMP" patented resin infusion process
o Dark blue hull finish with double boot stripe
o Race-prepared "International Ultra 2" anti-foul in dark grey (mid 2023)
o Off-white deck with light grey non-skid
o Hull-to-deck joint is bonded with a methacrylate structural adhesive
o Transverse/longitudinal grids and mast step are infused as part of the hull moulding
o SCRIMP infusion moulded, main bulkhead
o All intermediate bulkheads are glassed to hull and deck for strength and stiffness
o Keel with lead bulb (2.2 m draft), bolted and bonded to sump
o Flush-closing FlowTech Marelon sea-cocks (internals replaced 2018, serviced annually)
o ORC legal foredeck toe rails are an integral part of the deck moulding
o Large capacity self-draining foredeck chain locker, with Lewmar electric anchor windlass (replaced 2019)
o 2 side lockers in cockpit for storage of life-rafts, safety gear, sheets etc
o 1 aft locker
o 1 gas bottle locker, self draining, 2 x stainless steel gas bottles
o Instrument pod with multi-function display and auto-pilot on helm pod
o Instrument pod on the sliding hatch garage, with integrated mountings for sprayhood attachment
o Transom platform with stainless steel removable swimming ladder
o Balanced, composite rudder using uni and multi-directional fibreglass, on high grade stainless steel stock,
turning on "JP3" self-aligning bearings (replaced 2019)
o Removeable cockpit table
SPARS and RIGGING
o Hall Spars carbon mast, 2 sets of spreaders, with mainsail track, longitudinal inertia designed not to require
use of checkstay
o White painted aluminium boom replaced 2018, with 12:1 outhaul purchase system, mainsail reef lines
sheaves, internal mainsheet and forward articulated blocks to deck
o Discontinuous rod rigging (Nitronic 50), replaced 2018, checked annually
o Navtec hydraulic backstay ram (new 2109), Nav-tec pump with pressure gauge (new 2019) integrated into
binnacle
o Harken jib furling system with integrated below-deck furler
o Retractable carbon bowsprit controlled from cockpit with adjustable watertight system.
o Rod kicker boom vang with integral purchase system for a final ratio of 24:1
o Alloy whisker pole
o 1 mainsail halyard
o Mainsail track with Antell cars, custom fit of trysail connection to track
o 2 jib halyards with snapshackles
o 2 spinnaker halyard with snapshackles
o 4 spinnaker Spectra sheets (two are tapered light-weight sheets)
o 2 jib sheets
o 1 spinnaker tack line with snapshackle
o 1 mainsheet (continuous)
o 2 reef lines, rigged for single-line to cockpit cam cleats
o Spinlock cam-cleat jaws replaced 2018
o Whisker pole
DECK HARDWARE
o 2 Harken 48STA self-tailing primary winches
o 2 Harken 46.2STA mainsheet winches
o 2 Harken 44STA halyard winches on aft end of coach-roof (1 with electric option)
o 4 Harken lock-in winch handles
o 4 winch handle holders
o Mainsheet system on 2:1 Harken blocks, led forward through boom, then down to side decks, then aft under
deck to cockpit winches
o Harken adjustable mainsheet traveller with 6:1 purchase led to a cleat on both sides of the cockpit
o Harken jib tracks, with ball-bearing car system and adjustable purchase, adjusted from the Cockpit
o Adjustable jib inhaulers
o 2 Harken foot blocks for genoa sheets
o Harken spinnaker sheet blocks mounted on through deck u-bolts
o 5 mast foot Harken halyards/reefs turning blocks
o 2 x 4-sheave deck organisers to lead halyards and reef lines aft
o 4 Spinlock XCS stoppers on each side of coachroof
o Spinnaker tack line led aft to Spinlock XCS stopper on starboard of coachroof
o Roller furling control line led aft to Spinlock XCS stopper on port side of coachroof
o Bowsprit control line led to cockpit
o 2 forward stainless steel mooring cleats
o 2 aft stainless steel mooring cleats
o 1 bow roller
o Lewmar electric windlass (new 2019)
o Lewmar Windlass controller (new 2019)
o Stainless steel chainplates for shrouds and backstay
o 1 foredeck opening hatch (500 x 500 mm)
o 1 opening hatch (340 x 200) for heads
o 1 opening hatch (340 x 200) for forward cabin
o 1 opening hatch (500 x 370 mm) with vent for main cabin
o 2 opening ports (304 x 155 mm) for forward cabin and heads
o 4 opening ports (670 x 170 mm) for main cabin
o 4 opening ports for aft cabins (2 on sides, 2 in cockpit)
o Large companionway sprayhood with removable sides and opening front
o Stainless steel handrails on top of coachroof
o Double stainless rail pulpit and pushpit
o All around stainless lifelines, 8 stanchions including 4 with reinforcing leg
o Stainless steel collapsible stern boarding ladder and fixings
o Alloy steering wheel, leather covered, on custom moulded pedestal, with well and drain
o Compass on wheel pedestal with stainless steel protection bar
o Plexi companionway washboard with lock and vent, stored in aft cockpit locker
o Flagstaff holder integrated into pushpit basement
o Stainless steel emergency tiller
o Manual bilge pump (replaced 2018)
o Push-pit rails modified 2017 to comply with Australian Sailing Special Regulations (offshore racing)
INTERIOR ARRANGEMENT
o Built using laminated or solid cherrywood. All wooden parts are varnished or laminated with white Formica.
Floors are in plywood laminated with walnut effect
o Vinyl lining / white wood hull lining
FORWARD CABIN
o Access door to heads, large hanging locker,
o Desk with storage above and below
o Occasional seal with storage below
o Large double berth with lockers below
o Shelf above berth on port and starboard side
o Access door to main cabin and forward heads
o Adjustable fan (new 2019)
FORWARD HEADS
o Access door to main and forward cabins
o Lower part integrally moulded for easier maintenance, with integral shower tray, sink with access below to
seacocks, toilet roll holder
o Sink is recessed in synthetic resin Corian worktop, with rail for hand towel
o Shower with pressurised hot and cold water
o Marine WC with electric flush and stainless steel macerator, effluent out through "Y" valve to black water
holding tank or through-hull sea-cock (motor replaced 2018)
o Electric shower drain pump
o Shelf along the hull side with mirror
o Emergency internal manual bilge pump
AFT CABINS (Port & Starboard)
o Access door to main cabin
o Large hanging locker, Locker with doors, storage below and above, Shelf along the hull side
o Large double berth
o Access door to engine
CHART TABLE (to port)
o Large chart table facing forward
o Axiom 12" Chart-plotter multi-function display (new 2019)
o Chart storage under table lid & pencil box
o Locker under chart table
o Bookshelf
o Large hinged instrument panel
o Navigator's seat with storage below
o 2 x 12v charging outlets for USB etc.
MAIN CABIN
o Settee/berths to port and starboard, expandable to 4 x full length berths with lee cloths
o Drop leaf table with cold moulded fiddles, bottle storage in centre fixed part, quilted felt/canvas protective
cover
o Large storage lockers behind backrests
o Water tanks and fuel tank under seats
o Stainless steel handrail on ceiling
o Hinged backrest for pilot berth
o Adjustable fan for cabin / navigation table (new 2019)
o Quilted felt/canvas protective cover for dining table
U-SHAPED GALLEY (to starboard)
o Gimballed gas stove with oven and 2 burners, with s/s protection bar
o Double stainless steel sink unit recessed in synthetic resin worktop
o Pressurised hot and cold water
o Large 150 litre moulded icebox/fridge, with double access, divider and storage shelf, 12volt compressor
(Compressor, pipework, condenser and thermostat replaced 2019)
o 2 utensil drawers
o Large storage under drawers
o Storage under sink with shelf
o Trash bin with direct access from worktop
o Full length locker outboard of galley worktop, with crockery storage system
o Cold moulded fiddle around the edge of the worktop with integrated handrail
COMPANIONWAY
o White Formica finish for better wear resistance
o Steps with angled treads between bulkheads, stainless steel handrails on bulkheads
o Main engine access through removable panel
PLUMBING AND ELECTRICAL
o Manual bilge pump in cockpit
o Electric bilge pump with switch from automatic to manual functioning with control panel and individual
warning light
o Electric flush toilet with macerator and holding tank
o Shower drain pump with filter
o Pressurised water system
o Stainless steel water tank (150 litres) under main cabin settee
o Icebox drain
o 20 litre pressurised hot water tank (replaced 2021)
o Marine WC with holding tank
o 2 x 120 AH gel AGM type batteries & 1 x 80 AH battery (new 2024) for engine. The batteries are charged by either the
engine or the battery charger
o 12 V electrical panel, with fuel gauge, water level, voltmeter and battery monitoring
o Circuit breakers for house and start batteries
o LED lights on ceilings and swivelling tulip lights in cabins
o LED ceiling light in heads
o LED navigation lights on pushpit and pulpit, steaming light and mooring light
o Tri-colour masthead light
o Deck light mast mounted with guard
o Rig earthed for protection against lightning
o Mastervolt battery charger, Shore power
PROPULSION & ANCHORING
o Inboard Volvo-Penta D2-40B 40 HP Saildrive diesel engine, 115 AH alternator (new 2020), with double diode
and fresh water-cooling with heat exchanger (replaced 2021). 1600 engine hours. Full service history
o Engine control panel recessed in cockpit, with plexiglass protection, including rev. Counter, hour meter and
alarms for oil pressure, low voltage and water temperature
o 130 litre fuel tank (gauge working)
o Sound insulated engine compartment, ventilation pipes
o Two-blade folding racing propeller
o 2 x 50m nylon anchor lines incl spliced 10mm anchor chains
o 30m x 10mm cruising anchor chain
o Drogue
SAIL INVENTORY
Norths Year Condition
3Di J2 2018 V Good
3Di Mailsail 2018 V Good
A4 running spinnaker 2018 V Good
Quantum (Carbon Lam with taffeta)
Delivery main; 60% carbon / 40% Aramid, taffeta coated 2011 Good
Racing Mainsail; 60% carbon / 40% Aramid, taffeta coated 2016 V Good
J2; 60% carbon / 40% Aramid, taffeta coated 2015 Good
J3; 60% carbon / 40% Aramid, taffeta coated 2015 V Good
J4; 60% carbon / 40% Aramid, taffeta coated 2015 Excellent
A3 Spinnaker 2013 Good
A5 Spinnaker 2013 V Good
Ian Short
Carbon J1 tri radial 2018 V Good
A2 running spinnaker 2021 V Good
Storm Sails
Quantum Storm Jib 2018 Excellent
Norths Trisail 2018 Excellent
o Norths boom tent, fore-deck cover, steering wheel and binnacle cover
ELECTRONICS / INSTRUMENTS
o 5 x Raymarine S70 instrument displays on companionway seahood (new 2019)
o Raymarine Axiom 12" multi-function display chart plotter (new 2019)
o Raymarine AIS transceiver (new 2019)
o Raymarine wind, depth and speed transducers (new 2019)
o Raymarine Axiom 7" multi-function display chart plotter on navigation pod (ne
27-JAN-25 PRICE REDUCED FROM 285k TO 270k
Javelin is a versatile 40 foot performance sailboat with comfortable live-aboard accommodations, a refined deck
layout, low VCG keel with a moderate 2.2m draft. The hull & deck are built using superior infusion moulding
technology to maximize durability and long term value.
An IRC-friendly cruiser/racer, J/122 offers a completely furnished interior, a simple to manage balanced sail plan,
head turning sailing performance and great looks-- perhaps the ultimate 40' day sailing, weekending, racing and
cruising sailboat.
Javelin was built in 2008 and has had just 3 owners.
Current IRC Rating 1.075
Current AMS Rating 0.923
ORCi Rating 1.0709
HULL AND DECK
o The hull and deck are laminated with high quality materials: Sandwich construction using Uni and multidirectional fibreglass, low density balsa core, vinylester resin and the "SCRIMP" patented resin infusion process
o Dark blue hull finish with double boot stripe
o Race-prepared "International Ultra 2" anti-foul in dark grey (mid 2023)
o Off-white deck with light grey non-skid
o Hull-to-deck joint is bonded with a methacrylate structural adhesive
o Transverse/longitudinal grids and mast step are infused as part of the hull moulding
o SCRIMP infusion moulded, main bulkhead
o All intermediate bulkheads are glassed to hull and deck for strength and stiffness
o Keel with lead bulb (2.2 m draft), bolted and bonded to sump
o Flush-closing FlowTech Marelon sea-cocks (internals replaced 2018, serviced annually)
o ORC legal foredeck toe rails are an integral part of the deck moulding
o Large capacity self-draining foredeck chain locker, with Lewmar electric anchor windlass (replaced 2019)
o 2 side lockers in cockpit for storage of life-rafts, safety gear, sheets etc
o 1 aft locker
o 1 gas bottle locker, self draining, 2 x stainless steel gas bottles
o Instrument pod with multi-function display and auto-pilot on helm pod
o Instrument pod on the sliding hatch garage, with integrated mountings for sprayhood attachment
o Transom platform with stainless steel removable swimming ladder
o Balanced, composite rudder using uni and multi-directional fibreglass, on high grade stainless steel stock,
turning on "JP3" self-aligning bearings (replaced 2019)
o Removeable cockpit table
SPARS and RIGGING
o Hall Spars carbon mast, 2 sets of spreaders, with mainsail track, longitudinal inertia designed not to require
use of checkstay
o White painted aluminium boom replaced 2018, with 12:1 outhaul purchase system, mainsail reef lines
sheaves, internal mainsheet and forward articulated blocks to deck
o Discontinuous rod rigging (Nitronic 50), replaced 2018, checked annually
o Navtec hydraulic backstay ram (new 2109), Nav-tec pump with pressure gauge (new 2019) integrated into
binnacle
o Harken jib furling system with integrated below-deck furler
o Retractable carbon bowsprit controlled from cockpit with adjustable watertight system.
o Rod kicker boom vang with integral purchase system for a final ratio of 24:1
o Alloy whisker pole
o 1 mainsail halyard
o Mainsail track with Antell cars, custom fit of trysail connection to track
o 2 jib halyards with snapshackles
o 2 spinnaker halyard with snapshackles
o 4 spinnaker Spectra sheets (two are tapered light-weight sheets)
o 2 jib sheets
o 1 spinnaker tack line with snapshackle
o 1 mainsheet (continuous)
o 2 reef lines, rigged for single-line to cockpit cam cleats
o Spinlock cam-cleat jaws replaced 2018
o Whisker pole
DECK HARDWARE
o 2 Harken 48STA self-tailing primary winches
o 2 Harken 46.2STA mainsheet winches
o 2 Harken 44STA halyard winches on aft end of coach-roof (1 with electric option)
o 4 Harken lock-in winch handles
o 4 winch handle holders
o Mainsheet system on 2:1 Harken blocks, led forward through boom, then down to side decks, then aft under
deck to cockpit winches
o Harken adjustable mainsheet traveller with 6:1 purchase led to a cleat on both sides of the cockpit
o Harken jib tracks, with ball-bearing car system and adjustable purchase, adjusted from the Cockpit
o Adjustable jib inhaulers
o 2 Harken foot blocks for genoa sheets
o Harken spinnaker sheet blocks mounted on through deck u-bolts
o 5 mast foot Harken halyards/reefs turning blocks
o 2 x 4-sheave deck organisers to lead halyards and reef lines aft
o 4 Spinlock XCS stoppers on each side of coachroof
o Spinnaker tack line led aft to Spinlock XCS stopper on starboard of coachroof
o Roller furling control line led aft to Spinlock XCS stopper on port side of coachroof
o Bowsprit control line led to cockpit
o 2 forward stainless steel mooring cleats
o 2 aft stainless steel mooring cleats
o 1 bow roller
o Lewmar electric windlass (new 2019)
o Lewmar Windlass controller (new 2019)
o Stainless steel chainplates for shrouds and backstay
o 1 foredeck opening hatch (500 x 500 mm)
o 1 opening hatch (340 x 200) for heads
o 1 opening hatch (340 x 200) for forward cabin
o 1 opening hatch (500 x 370 mm) with vent for main cabin
o 2 opening ports (304 x 155 mm) for forward cabin and heads
o 4 opening ports (670 x 170 mm) for main cabin
o 4 opening ports for aft cabins (2 on sides, 2 in cockpit)
o Large companionway sprayhood with removable sides and opening front
o Stainless steel handrails on top of coachroof
o Double stainless rail pulpit and pushpit
o All around stainless lifelines, 8 stanchions including 4 with reinforcing leg
o Stainless steel collapsible stern boarding ladder and fixings
o Alloy steering wheel, leather covered, on custom moulded pedestal, with well and drain
o Compass on wheel pedestal with stainless steel protection bar
o Plexi companionway washboard with lock and vent, stored in aft cockpit locker
o Flagstaff holder integrated into pushpit basement
o Stainless steel emergency tiller
o Manual bilge pump (replaced 2018)
o Push-pit rails modified 2017 to comply with Australian Sailing Special Regulations (offshore racing)
INTERIOR ARRANGEMENT
o Built using laminated or solid cherrywood. All wooden parts are varnished or laminated with white Formica.
Floors are in plywood laminated with walnut effect
o Vinyl lining / white wood hull lining
FORWARD CABIN
o Access door to heads, large hanging locker,
o Desk with storage above and below
o Occasional seal with storage below
o Large double berth with lockers below
o Shelf above berth on port and starboard side
o Access door to main cabin and forward heads
o Adjustable fan (new 2019)
FORWARD HEADS
o Access door to main and forward cabins
o Lower part integrally moulded for easier maintenance, with integral shower tray, sink with access below to
seacocks, toilet roll holder
o Sink is recessed in synthetic resin Corian worktop, with rail for hand towel
o Shower with pressurised hot and cold water
o Marine WC with electric flush and stainless steel macerator, effluent out through "Y" valve to black water
holding tank or through-hull sea-cock (motor replaced 2018)
o Electric shower drain pump
o Shelf along the hull side with mirror
o Emergency internal manual bilge pump
AFT CABINS (Port & Starboard)
o Access door to main cabin
o Large hanging locker, Locker with doors, storage below and above, Shelf along the hull side
o Large double berth
o Access door to engine
CHART TABLE (to port)
o Large chart table facing forward
o Axiom 12" Chart-plotter multi-function display (new 2019)
o Chart storage under table lid & pencil box
o Locker under chart table
o Bookshelf
o Large hinged instrument panel
o Navigator's seat with storage below
o 2 x 12v charging outlets for USB etc.
MAIN CABIN
o Settee/berths to port and starboard, expandable to 4 x full length berths with lee cloths
o Drop leaf table with cold moulded fiddles, bottle storage in centre fixed part, quilted felt/canvas protective
cover
o Large storage lockers behind backrests
o Water tanks and fuel tank under seats
o Stainless steel handrail on ceiling
o Hinged backrest for pilot berth
o Adjustable fan for cabin / navigation table (new 2019)
o Quilted felt/canvas protective cover for dining table
U-SHAPED GALLEY (to starboard)
o Gimballed gas stove with oven and 2 burners, with s/s protection bar
o Double stainless steel sink unit recessed in synthetic resin worktop
o Pressurised hot and cold water
o Large 150 litre moulded icebox/fridge, with double access, divider and storage shelf, 12volt compressor
(Compressor, pipework, condenser and thermostat replaced 2019)
o 2 utensil drawers
o Large storage under drawers
o Storage under sink with shelf
o Trash bin with direct access from worktop
o Full length locker outboard of galley worktop, with crockery storage system
o Cold moulded fiddle around the edge of the worktop with integrated handrail
COMPANIONWAY
o White Formica finish for better wear resistance
o Steps with angled treads between bulkheads, stainless steel handrails on bulkheads
o Main engine access through removable panel
PLUMBING AND ELECTRICAL
o Manual bilge pump in cockpit
o Electric bilge pump with switch from automatic to manual functioning with control panel and individual
warning light
o Electric flush toilet with macerator and holding tank
o Shower drain pump with filter
o Pressurised water system
o Stainless steel water tank (150 litres) under main cabin settee
o Icebox drain
o 20 litre pressurised hot water tank (replaced 2021)
o Marine WC with holding tank
o 2 x 120 AH gel AGM type batteries & 1 x 80 AH battery (new 2024) for engine. The batteries are charged by either the
engine or the battery charger
o 12 V electrical panel, with fuel gauge, water level, voltmeter and battery monitoring
o Circuit breakers for house and start batteries
o LED lights on ceilings and swivelling tulip lights in cabins
o LED ceiling light in heads
o LED navigation lights on pushpit and pulpit, steaming light and mooring light
o Tri-colour masthead light
o Deck light mast mounted with guard
o Rig earthed for protection against lightning
o Mastervolt battery charger, Shore power
PROPULSION & ANCHORING
o Inboard Volvo-Penta D2-40B 40 HP Saildrive diesel engine, 115 AH alternator (new 2020), with double diode
and fresh water-cooling with heat exchanger (replaced 2021). 1600 engine hours. Full service history
o Engine control panel recessed in cockpit, with plexiglass protection, including rev. Counter, hour meter and
alarms for oil pressure, low voltage and water temperature
o 130 litre fuel tank (gauge working)
o Sound insulated engine compartment, ventilation pipes
o Two-blade folding racing propeller
o 2 x 50m nylon anchor lines incl spliced 10mm anchor chains
o 30m x 10mm cruising anchor chain
o Drogue
SAIL INVENTORY
Norths Year Condition
3Di J2 2018 V Good
3Di Mailsail 2018 V Good
A4 running spinnaker 2018 V Good
Quantum (Carbon Lam with taffeta)
Delivery main; 60% carbon / 40% Aramid, taffeta coated 2011 Good
Racing Mainsail; 60% carbon / 40% Aramid, taffeta coated 2016 V Good
J2; 60% carbon / 40% Aramid, taffeta coated 2015 Good
J3; 60% carbon / 40% Aramid, taffeta coated 2015 V Good
J4; 60% carbon / 40% Aramid, taffeta coated 2015 Excellent
A3 Spinnaker 2013 Good
A5 Spinnaker 2013 V Good
Ian Short
Carbon J1 tri radial 2018 V Good
A2 running spinnaker 2021 V Good
Storm Sails
Quantum Storm Jib 2018 Excellent
Norths Trisail 2018 Excellent
o Norths boom tent, fore-deck cover, steering wheel and binnacle cover
ELECTRONICS / INSTRUMENTS
o 5 x Raymarine S70 instrument displays on companionway seahood (new 2019)
o Raymarine Axiom 12" multi-function display chart plotter (new 2019)
o Raymarine AIS transceiver (new 2019)
o Raymarine wind, depth and speed transducers (new 2019)
o Raymarine Axiom 7" multi-function display chart plotter on navigation pod (ne
Region
Queensland
Location
Brisbane QLD
Usage
Racing
Launch Year
2009
Hull
Fibreglass/GRP
Length
40' - 12.19m
ABOUT THE SELLER
richard
brisbane
QLD 4059 Australia
QLD 4059 Australia
