Lagoon 400 Owner's Version, never chartered, full refit 2022

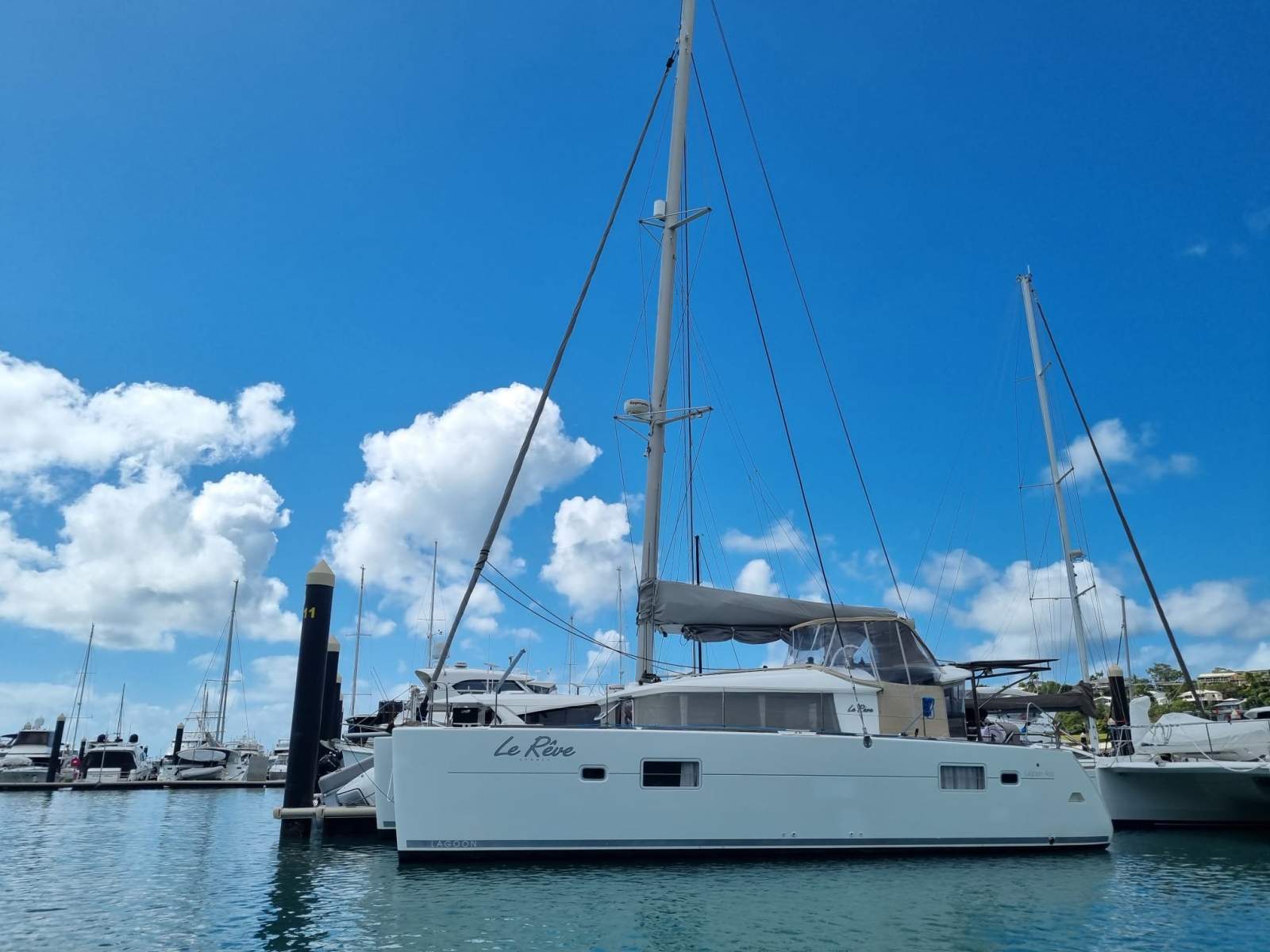

2010 LAGOON 400 OWNER'S VERSION | "LE REVE" | NEVER CHARTERED | AIRLIE BEACH
Le Reve is a three cabin Owner's Version Lagoon 400, privately owned, never chartered, and rebuilt from 2022 onward as a full time liveaboard and off grid cruising catamaran.
The refit was carried out in 2022 to prepare her for taking the family up the east coast, so it was done to a cruising standard rather than a resale one. The mast came out of the boat for full re-rigging, with all new standing rigging and halyards, and every sail was replaced at the same time by Brad Anson Sails. New VHF and AIS antennas and cabling went in while the mast was down.
The structural bulkhead was fully rebuilt and reglassed at the same time. This is the item every informed Lagoon 400 buyer asks about, and on Le Reve it has already been dealt with.
The same year she was given a new galley with Caesarstone benchtops, new refrigeration, a dishwasher and an induction cooktop. The air conditioning was replaced in every cabin and the saloon. All the cushions and upholstery were redone, smart TVs went into every cabin, and the port forward head was converted into a full size laundry. A custom stainless steel arch was fabricated to carry the new solar array, the BBQ and the davits.
The power system was built for living at anchor: 14.4kWh of lithium at 24 volts, 1,900W of solar, a Victron MultiPlus 5000, and a 7kW Onan generator wired to start itself when the batteries get low. The watermaker makes 160 litres an hour.
She was hauled in June 2026 for antifoul, a full engine service and new saildrive seals, so there is nothing due. Both Yanmars have run around 2,500 hours a side. For a 2010 catamaran that is low.
The Owner's Version layout gives the whole starboard hull to the owner: a queen suite with a 65 inch smart TV, a separate office with a desk and monitor, a pantry, and a private head with a bidet. Two guest berths and a second head sit forward and aft to port.
If you intend to live aboard rather than visit on weekends, this is a different boat to the four cabin charter layouts that make up most of the market.
FROM THE OWNER
We bought Le Reve and moved aboard, so she was set up from the start as a long term home rather than a weekender. Everything on her was chosen by someone who was going to be living with it.
We sailed her from Sydney up to Airlie Beach with my wife and our two kids. She has taken the family everywhere we have pointed her and she has been comfortable doing it.
She is fitted out with every creature comfort you actually need. Air conditioning in every cabin, a proper galley, a dishwasher, a full size washing machine and dryer, hot water, unlimited fresh water from the watermaker, and enough lithium and solar to live off the grid without thinking about it. Air conditioning runs off the generator, which starts itself, so you are not out there managing power. It is closer to a floating apartment than a yacht interior.
The gear is all good gear, and having looked at what else is out there, I would put her up against any Lagoon 400 on the market. If you are shopping for a 40 foot catamaran, she is worth the trip to come and see.
The best part has been the family trips. That is what she was bought for and that is what she has delivered.
She has been maintained the whole way through and the recent work is documented. There is nothing waiting to be spent on her.
AT A GLANCE
- 2010 Lagoon 400, Owner's Version, 3 cabins, 2 heads, 6 berths
- Never chartered, privately owned
- 2 x Yanmar 3JH5E, 39hp each, approximately 2,500 hours per engine
- Yanmar SD50 saildrives, seals replaced June 2026
- Structural bulkhead fully rebuilt and reglassed 2022
- Cummins Onan MDKBL 7kW generator with Victron auto start
- 600Ah at 24V lithium, 14.4kWh nominal
- 1,900W solar on a custom stainless arch built in 2022
- 2 x Victron MPPT, Victron MultiPlus 5000 24V inverter charger
- Water Makers Australia watermaker, 160 litres per hour
- Full mast off re-rigging 2022, all new standing rigging and halyards
- All new sails 2022 by Brad Anson Sails
- Raymarine Axiom 12 inch and 9 inch, new autopilot, Quantum digital colour radar
- Vesper Marine WatchMate Vision Class B AIS transponder
- Mantus 29.5kg anchor, 100m of new 10mm chain, Quick 1000W windlass
- Air conditioning replaced throughout 2022, plus diesel heating
- New galley 2022 with Caesarstone benchtops, induction and dishwasher
- Full size Bosch washing machine and Fisher and Paykel dryer
- Touchscreen Home Assistant vessel monitoring and control
- OC Tenders 310 with Johnson 20hp four stroke, 2022
- Antifouled June 2026, recent survey on file
POWER AND OFF GRID CAPABILITY
- 600Ah lithium house bank at 24 volts, 14.4kWh nominal
- 1,900W of solar, mounted on a custom stainless steel arch fabricated in 2022
- 2 x Victron MPPT solar controllers
- Victron MultiPlus 5000 24V inverter charger
- 2 x 50 amp 24V alternators, one per engine
- Cummins Onan MDKBL 7kW 240V diesel generator, 6,266 hours, full service carried out 20 hours ago. Wired to the Victron system for automatic start on low battery.
- 15 amp shore power with a Victron transfer switch and galvanic isolation fitted
- 240V and 12V outlets throughout
- Water Makers Australia watermaker, 160 litres per hour, which fills both tanks in under four hours
In practice the lithium and solar carry the everyday loads, including the galley, the refrigeration and the watermaker, and the generator handles the heavy ones such as air conditioning. Because it starts on its own when the batteries get low, nobody has to watch the power.
VESSEL CONTROL
A touchscreen Home Assistant system monitors and controls the boat's systems from one place, with an anchor watch alarm repeated in the owner's cabin.
ENGINES, DRIVES AND RUNNING GEAR
- 2 x Yanmar 3JH5E diesels, 39hp (28.7kW) each
- Approximately 2,500 hours per engine
- Yanmar SD50 saildrives, seals replaced and serviced June 2026
- 2 x Flexofold 18 x 13 two blade folding propellers
- 2 x 50 amp 24V alternators, one per engine, charging the house bank underway
- Engine sensors upgraded and running on NMEA 2000, with engine data on the Axiom displays
- Full service kits carried on board for both engines and both saildrives, plus spare engine mounts, a spare SD50 gearbox, and a Gideon Coetzee SD50 upgrade kit (supplied, not fitted)
RIG AND SAILS
- Full mast off re-rigging completed 2022, including all new halyards
- All sails new in 2022, built by Brad Anson Sails
- Harken MKIV Unit 3 headsail furler
- Harken electric winches
- New VHF and AIS antennas and cabling fitted during the re-rigging
NAVIGATION AND ELECTRONICS
- Raymarine Axiom 12 inch multifunction display
- Raymarine Axiom 9 inch multifunction display
- New Raymarine autopilot
- Raymarine Quantum solid state digital colour radar
- Raymarine VHF with remote microphone at the helm
- Vesper Marine WatchMate Vision Class B AIS transponder, transmitting and receiving, on the Raymarine NMEA 2000 network
- New Raymarine transducer with fishfinder sonar, not the standard depth and speed unit, displaying on the Axioms
- Quick QNC electronic chain counter at the helm
- Fusion Apollo stereo and speakers
GROUND TACKLE AND DECK
- Mantus 29.5kg (65lb) primary anchor
- 100 metres of new 10mm chain with bridle
- Two secondary anchors: Delta 44lb and a Fortress FX-37 type, each with chain and rope rode
- Quick 1000W windlass
- All new SeaDek foam decking to the cockpit and aft deck
- Custom stainless steel arch, built 2022, carrying the solar array, the BBQ and the davits
- Weber Q on a custom stainless mount
- Hot and cold shower on the transom steps
- High pressure deck wash
- New underwater lights
- Stedi LED spreader lights
- Port and starboard emergency escape hatches upgraded
- New hatch seals, blackout shades and insect screens throughout
- Forward storage lockers repainted and fitted with dehumidifiers
- Helm wheel recovered in leather
CLIMATE CONTROL
- Air conditioning replaced in every cabin and the saloon in 2022
- New magnetic drive seawater pumps and new sea strainers
- Diesel heating
- 12V fans in the cabins
- Automatic temperature and humidity sensing air ducting to the owner's pantry
Very few catamarans in this market offer both air conditioning and diesel heating.
GALLEY
Rebuilt in 2022.
- Caesarstone benchtops
- Vitrifrigo refrigeration running on both 12V and 240V
- 3 x Dometic CFX refrigerator drawers
- Induction cooktop
- Dishwasher
- Dual stainless sink
- Filtered drinking water outlet
- LED accent lighting and timber flooring
ACCOMMODATION
Owners suite, starboard hull:
- Queen berth
- 65 inch smart TV with Sonos soundbar
- Air conditioning
- Dedicated office with desk, monitor and 240V and 12V power
- Pantry with built in Breville combination microwave oven and humidity controlled ducting
- Private head with fresh water flush Jabsco toilet, bidet, upgraded shower and basin
Port hull:
- Forward guest cabin with smart TV, reading light, 12V fan, air conditioning, diesel heating, smoke detector, blackout shade and insect screen
- Aft guest cabin with air conditioning, custom shelving and upgraded 12V and 240V power
- Guest head with new mirrors, LED lighting and fresh water flush toilet
Throughout:
- New smart TVs in every cabin
- All new cushions and upholstery, 2022
LAUNDRY
The port forward head has been converted to a full size laundry.
- Bosch Serie 8 washing machine with EcoSilence Drive
- Fisher and Paykel 6kg auto sensing dryer
- 240V power
A full size washer and dryer on a 40 foot catamaran is rare. It is the difference between living aboard and camping aboard.
TANKAGE AND PLUMBING
- Fuel: 2 x 200 litres, 400 litres total
- Fresh water: 2 x 300 litres, 600 litres total
- Hot water: new 70 litre heater, 240V element and engine heat exchanger for heating underway
- Fresh water flush Jabsco toilets
SAFETY
- Six person liferaft
- Rule 8000 GPH emergency bilge pump
- Smoke detectors
- Anchor watch alarm repeated in the owner's cabin
TENDER
- OC Tenders 310
- Johnson 20hp four stroke, 2022
- Davits
RECENT WORK
- June 2026: hauled out, antifouled, full engine service, saildrive seals replaced
- Generator fully serviced 20 hours ago
- 2022: structural bulkhead fully rebuilt and reglassed
- 2022: full mast off re-rigging, all new sails, custom stainless solar arch, new galley, air conditioning replaced throughout, all new upholstery, new smart TVs
- Recent survey on file, available to serious buyers
INCLUDED
Extensive spares inventory, including full engine and saildrive service kits, spare engine mounts, a spare SD50 saildrive gearbox, a Gideon Coetzee SD50 upgrade kit (supplied, not fitted), spare ropes and lines, and a Karcher pressure washer.
INSPECTION
Lying Airlie Beach, Queensland. Inspection by appointment.
