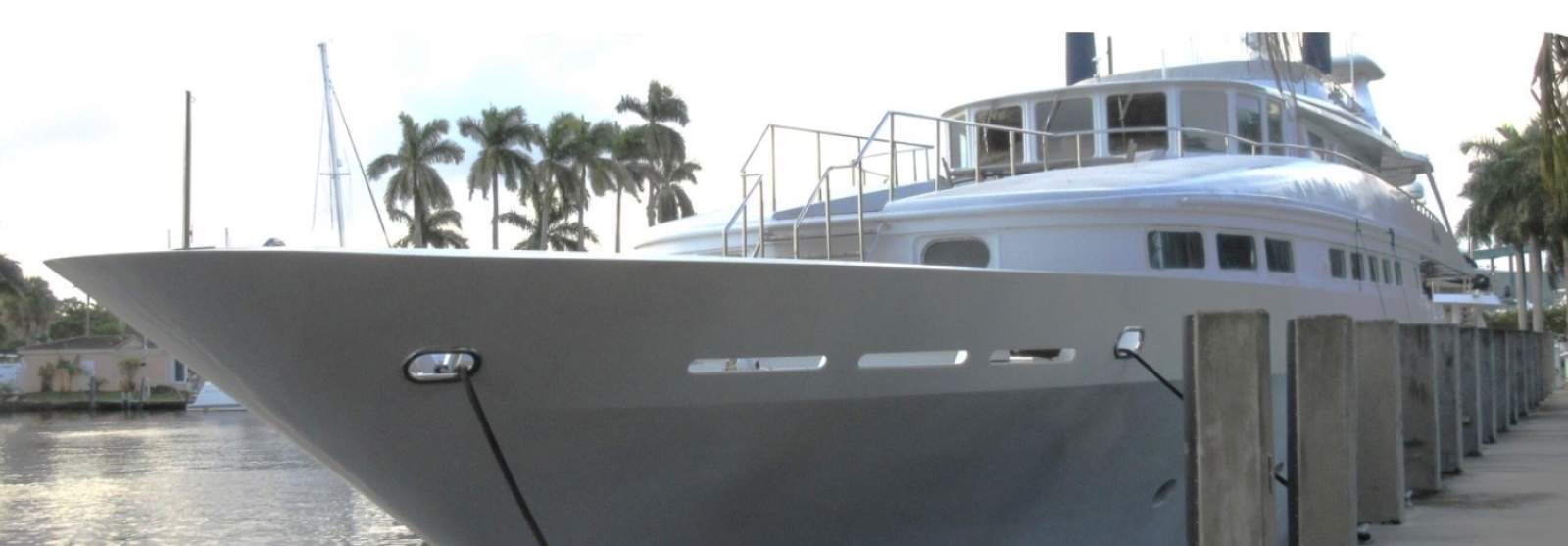

Heesen Yachts Motor Yacht

Vessel Details
Make Heesen
Model 144
Year 1990
Vessel Type Motor Yacht
Accomodations
Number of Berths / Staterooms 5
Number Of Heads 8
Specifications
Vessel Length (Ft) 144
Draft 7'
Beam 27'2"
Draft 6'10"
Weight 875839
Fuel (gallons) 19400
Water (gallons) 4125
Waste (gallons) 426
Engines
Engine Make MTU
Engine Model 12V4000 M90
Engine Type Inboard
Drive Type Jet Drive
Engine Fuel Type Diesel
Total Engine(s) Twin
Engine Year 2007
Engine Horsepower 2736
Generator
Generator Make Onan
Generator Model MDDCE-5857192
Generators On Board (total) twin
Vessel Options
Pilothouse & Office
Autopilot - Sperry Navipilot
GPS - Garmin GPSMAP 741xs
GPS - Furuno GP-170
GPS - Furuno GP39
Monitors - Six x Hatteland
Chart Plotter - Integrated in above Garmin GPS & networked through monitors via ship's computers
Radar - Two x Furuno 120-mile
Fish Finder - Nobeltec Insight Sonar
Depth Finder - In chartplotters and Furuno RD30 MFDs
Speed Log - In GPSs, chartplotters and Furuno RD30 MFDs
Seawater Temp. - Furuno RD30 MFDs
Wind Gauge - Furuno FI-50 & B&G gauges in office
VHF Radio - Two x Sailor 6222 VHF DSC
Navtex - Furuno NX-70
Inmarsat - Furuno Felcom 15 Sat-C messaging terminal
BNWAS - Netlogic
Entertainment Electronics
Satellite TV System - Intellian w/ DirecTV receivers
TV/DVD/Media Player - Samsung TV on powered lift in main salon
TV/DVD/Media Player - Samsung TV w/ Apple TV & Sony Blu-ray in master stateroom
TV/DVD/Media Player - Vizio TV w/ Sony Blu-ray in starboard forward guest
TV/DVD/Media Player - LG TV w/ Sony Blu-ray & Xbox in port & starboard aft cabins
TV/DVD/Media Player - Samsung TV in port forward stateroom
TV/DVD/Media Player - TV on powered lift & Samsung Blu-ray in skylounge
TV/DVD/Media Player - Samsung TV in crew mess
TV/DVD/Media Player - TCL TV in captain's cabin
TV/DVD/Media Player - Vizio TV in port forward crew cabin
Sound Systems - Eight x Denon AV receivers throughout vessel
Sound Systems - Fusion stereo on sundeck
Control System - 4-networked system w/ control panels throughout
Onboard Internet - Pepwave cellular receiver/router
Onboard Internet - Sea Tel Cobham VSAT
Galley & Domestic Equipment
Stovetop - Five-burner Wolf induction top
Oven - Wolf
Microwave - Oyster in crew mess
Ventilation - Powered extraction hood above galley stovetop
Dishwasher - Electrolux
Galley Refrigeration - Two x custom stainless-steel units
Galley Freezer - Custom stainless-steel
Icemaker - Ice-O-Matic in main deck pantry
Icemaker - Ice-O-Matic in lazarette
Icemaker - Manitowoc in skylounge
Icemaker - Hoshizaki on sundeck
Other Refrigeration - Sub-Zero fridge in skylounge
Other Refrigeration - U-Line wine chiller in salon
Other Refrigeration - Marvel wine chiller in laundry
Other Refrigeration - Two x Sub-Zero refrigerated drawers in guest foyer
Other Refrigeration - Frigidaire fridge w/ freezer compartment in lazarette
Other Refrigeration - Large Sub-Zero fridge in laundry
Other Refrigeration - Large Sub-Zero freezer in laundry
Other Refrigeration - U-Line fridge/freezer on sundeck
Other Refrigeration - Upright fridge/freezer in crew lounge
Washer/Dryer - Two x LG washers & two x Miele dryers in laundry
Washer/Dryer - Electrolux washer & Miele dryer in crew area
BBQ - DCS by Fisher & Paykel
Deck Equipment
Gangway - Custom carbon fiber
Dinghy Davit - Two x gantry cranes built into aft deck overhead
Swim Ladder - Removable aluminum ladder stowed on aft deck
Service Air Compressor - Two x Speedaire, 2 HP / 30 volt / 150 PSI
Compressed Air Receivers - 100-liter & 50-liter tanks in engine room
Ground Tackle & Mooring Equipment
Anchor Windlass - Two x Steen, horizontal, electric
Anchors - Two x stainless-steel navy stockless type
Anchor Rode - Two x 425´ lengths of galvanized steel chain
Cutaway bitter end installed correctly
Deck Capstans - Two x Steen, electric, on aft deck
HVAC / Air Conditioning System
System Make - Domestic
Chiller/Compressor Location - Three chillers in engine room
Air Handlers/Blowers - Units installed throughout vessel
Cooling Capacity - 360,000 BTU
Seawater Pumps - Two x Baldor / Scot pumps, 230 volt
Circulating Pump - Two x Century, 230 volt
Self-Contained System Pump - One x Marathon Electric / March pump, 240 volt
Fresh Air Make-Up Systems - Two x Cuge Marine
Thrusters - Stabilizers - Steering - Trim Tabs - Hydraulics
Bow Thruster - Quantum, hydraulic, 150 HP
Stabilization - Naiad/Quantum hydraulic fin-type 404 stabilizers
At Rest Function - Zero speed function
Steering System - Kamewa
Steering Reservoir - Two x Kamewa, 208 volt pumps w/ 20-gallon reservoirs
Steering Stations - Three (main helm & wing stations)
Hydraulic Pump (PTO) - Off both main engines for stabilizer/thruster
Hydraulic Pump (PTO) - Off both transmissions for stabilizer/thruster
HPU & Reservoir - WEG / Quantum, 208 volt / 10-gallon, for stabilizer system
Hydraulic Reservoir - Quantum, 30-gallon, for bow thruster
Decks, Bilges & Superstructure
Stem - Raked & flared
Stern - Aluminum, flat
Frames - Aluminum grid system at 1200 mm spacing
Stringers - Aluminum grid system
Bulkheads - Aluminum plate welded to hull and deck
Seacock/Valve Type - Insulated butterfly valves
Decks - Aluminum with teak overlay
Hull-Deck Joint - Welded
Deck Fittings - Aluminum & stainless steel
Topsides - Aluminum, white w/ black boot stripe
Superstructure - Aluminum, white
Bow Arrangement - Twin stainless steel hawse
Rub Rails - Welded aluminum with stainless steel inserts
The price of $AUD 3.75 Mil is fully landed in Newcastle NSW inclusive of Shipping Duty and GST
